Daihan Science Kern Powerful Polarizing Microscope “OPO”, with Height-adjustable Swing-out Abbe
상품 한눈에 보기
고성능 편광 현미경으로 광물, 결정, 재료 분석에 적합. 완전한 Koehler 조명과 중심 조절형 Bertrand 렌즈 탑재. 360° 회전 스테이지 및 λ·¼λ 슬립 포함. 반사 및 투과 조명 모두 지원, 독일 Kern 제조.
브랜드: Daihan Science
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...

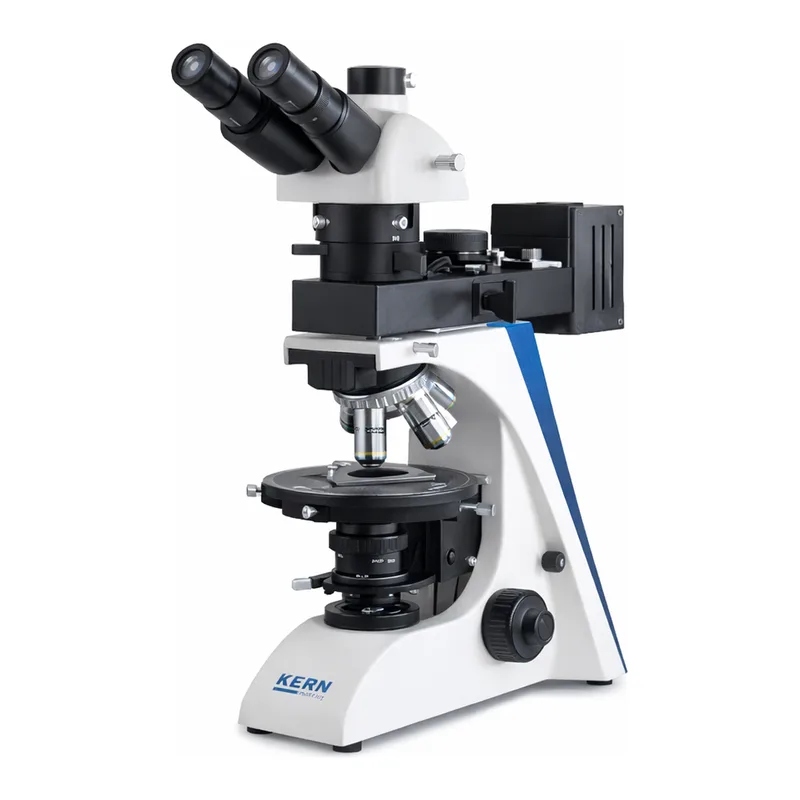

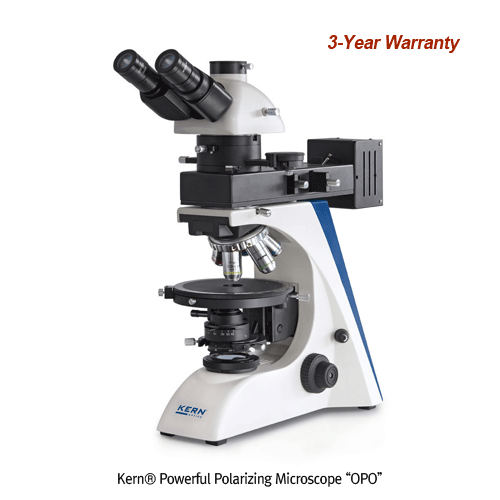

Kern® Powerful Polarizing Microscope “OPO”
with Height-adjustable Swing-out Abbe Condenser, 40× ~ 400×
고성능 편광 현미경으로 완전한 Koehler 조명 시스템과 중심 조절형 Bertrand 렌즈를 탑재한 전문 연구용 모델입니다.
Supplied by Kern® in Germany
NEW
3-Year Warranty
- Bertrand lens, λ Slip, 360° rotatable analyser (removable)
- Center-adjustable and turnable polarisation stage
PROFESSIONAL LINE POL
The Flexible and Powerful Polarizing Microscope for all Professional Applications with Reflected and Transmitted Light
Features
- Professional, fully-equipped polarizing microscope for analysis of minerals, crystals, and isotropic materials
- Integrated complete Koehler illumination
- Height-adjustable 0.9/0.13 swing-out Abbe condenser with centering function
- 360° revolving stage with 1° division, 6° fine division, and locking function
- Complete polarizing unit with scale, Bertrand lens, λ + ¼ λ slip, and quartz wedge
- Wide range of accessories available (mechanical stage, long working distance objectives, filter units)
- Includes protective dust cover, eye cups, and multilingual user manual
- C-Mount adapter required for camera connection
Technical Data & Applications
- Applications: Mineralogy, texture observation, material testing, crystal observation
- Suitable for complex samples with polarizing properties
| 항목 | 사양 |
|---|---|
| Optical System | Infinity Optical System |
| Nosepiece | Quintuple |
| Viewing Head | Siedentopf 30° Inclined |
| Analyzer Unit | 360° Rotatable, Lockable with Scale |
| Bertrand Lens | Built-in, Center-adjustable |
| Condenser | N.A. 0.9/0.13 Swing-out Achromatic Condenser (Aperture Diaphragm) |
| Illumination | 5W LED (Incident + Transmitted) |
| Diopter Adjustment | One-sided |
| Dimensions | 500 × 200 × h500 mm |
| Net Weight | Approx. 14.5 kg |
STANDARD
| Cat. No. | Tube | Eyepiece | Objectives Quality | Objectives | Price (₩) |
|---|---|---|---|---|---|
| KE.OPO.185 | Trinocular | WF 10×/⌀20mm | Infinity Plan | Non-stress 4×/10×/20×/40×/50× |
Icons
TINO | ABBE | HAL | POLAR | INFINITY | SCALE | 230V
