Thermo Scientific™

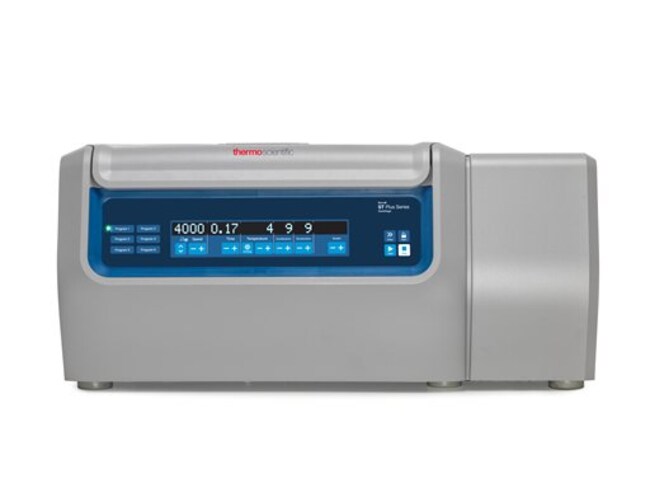

Sorvall ST4 Plus Centrifuge Series

Faster processing of more samples with a high capacity-to-footprint ratio and simple programming interface, plus the flexibility to run most tubes and bottles on one centrifuge.

The ST4/ST4R Plus series centrifuges come standard with an easy-to-use keypad and high contrast LCD display. This high-capacity and versatile unit offers consistent performance and is ideal for routine applications. Quickly and securely swap between 13 unique rotor options with the tool-less Auto-Lock rotor exchange. Available for purchase individually or in convenient application-based packages.

Cell Culture packages include the centrifuge, rotor, ClickSeal biocontainment lids and a set of four 15 mL and 50 mL conical tube adapters.

Blood Tube packages include the centrifuge, rotor, ClickSeal biocontainment lids and a set of four 5/7 mL and 9/10 mL blood tube adapters.

사양

인증/적합성EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15

제어기 유형Microprocessor

설명Thermo Scientific Sorvall ST4R Plus, 220V 60Hz

용량196 x 5/7 mL Blood Tubes, 148 x 9/10 mL Blood Tubes, 96 x 15 mL Conical Tubes, 40 x 50 mL Conical Tubes, 6 Microplates, 4 x 1000 mL BioBottles (with TX-1000 rotors)

최대 RCF25,830 x g Fixed Angle (with 30 x 2 mL Rotor), 5,590 x g Swing-Out (with BIOShield 1000A Rotor)

제품라인Sorvall

냉장형Yes, CFC-Free, Pre-Temp Available

디스플레이Bright LCD Push-Button User Interface

구동 시스템Direct, Brushless Induction Low Profile

용도(장비)Purchase of Thermo Scientific rotor and accessories required for operation

그린 기능Energy efficient, less waste

포함centrifuge include following in packaging: printed english user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord for the accroding country supply voltage, declaration of conformity

물질Front, top and sides are out of plastic(PC-ABS) painted with 2K lacquer(PUR based), metal housing is out of cold rolled steel with powder paint(structured), centrifuge bowl is corrosion-resistant high thermal conductivity(STAINLESS STEEL 1.4301 COLD ROLLED). The unit feet are out of rubber.

노이즈 수준<64 dB(A) Rotor F15-8x50c; 14500 RPM

프로필(가속/제동)Choices of 9 Accel/10 Decel Rates

프로그램 스토리지Up to 6 Programs via LCD User Interface buttons

로터13 Rotor Options Available, rotor sold separately

로터 포함No

실행 시간Up to 9 hr. 59 min.

표준물질ISO 14971, ISO 13485, ISO 9001

온도 범위-10°C to +40°C, ±2°C

타이머Option to count up or down

유형Benchtop Centrifuge

워런티5 Year Limited

치수(L x W x H) 외부690 x 746 x 361 mm

길이(영국식 단위) 외부27.2 in.

길이(미터법) 외부690 mm

폭(영국식 단위) 외부29.4 in.

폭(미터법) 외부746 mm

높이(영국식 단위) 외부14.2 in.

높이(영국식 단위) 외부 뚜껑 열림33.9 in.

높이(미터법) 외부361 mm

높이(미터법) 외부 뚜껑 열림861 mm

깊이(영국식 단위)27.2 in.

깊이(미터법)690 mm

순중량120 kg

전기 요구사항220 V 60 Hz

전압220 V

와트1950 w

주파수60 Hz

Unit SizeEach
