Invitrogen™

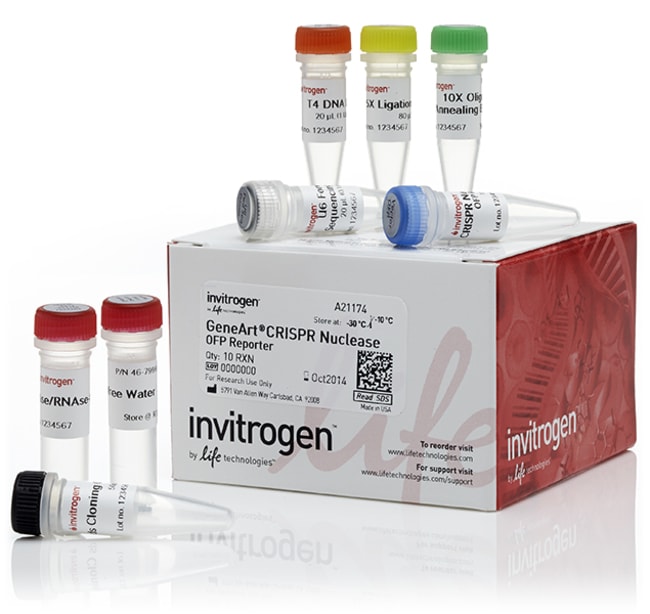

GeneArt™ CRISPR Nuclease Vector with OFP Reporter Kit

The GeneArt™ CRISPR Nuclease Vector with OFP Reporter Kit is a vector system for expression of the functional components needed자세히 알아보기

The GeneArt™ CRISPR Nuclease Vector with OFP Reporter Kit is a vector system for expression of the functional components needed for CRISPR/Cas9 genome editing in mammalian cells with an orange fluorescent protein (OFP) reporter. The OFP reporter allows for fluorescence-based tracking of transfection efficiency, as well as FACS-based sorting/enrichment of Cas9 and CRISPR expressing cells. The linearized GeneArt™ CRISPR nuclease vectors provide a rapid and efficient way to clone double-stranded oligonucleotides encoding a crRNA representing a desired target into an expression cassette that allows sequence-specific targeting of the Cas9 nuclease. A version with competent cells is also available (Cat. No. A21178).

The GeneArt™ CRISPR Nuclease Vector system offers:
• Easy-to-design genome engineering system
• Affordable, ready-to-use cloning vectors
• Enrichment for hard to transfect or difficult to modify cell lines

All-in-one Vector System for CRISPR-based Genome Editing
The GeneArt™ CRISPR Nuclease Vector kit offers a simple, ready-to-use, all-in-one expression vector system consisting of both a Cas9 nuclease expression cassette and a guide RNA (gRNA) cloning cassette for rapid and efficient cloning of DNA that encodes target-specific CRISPR RNA (crRNA). This system allows you to edit and engineer a genomic locus of choice in a sequence-specific manner from a single plasmid. After relevant targets have been identified with fast and easy-to-use GeneArt™ CRISPR vectors, the biologically relevant mutations can be precisely created with GeneArt™ Precision TALs, with high specificity and low off-target effects.

Need assistance with CRISPR gRNA design?
Our new CRISPR Search & Design tool allows you to search our database of >600,000 predesigned CRISPR gRNAs in human and mouse genes or analyze your sequence of interest for de novo gRNA designs using our proprietary algorithms. CRISPR sequences are optimized for gene knockout and target the first three transcribed exons for each gene. Search results include the top 6 CRISPR sequences with PAM sites, exon maps with gRNA binding sites, and potential off-target binding sites for each CRISPR sequence. The tool will design the correct gRNA format for your preferred CRISPR-Cas9 product, including oligos for your GeneArt™ CRISPR Nuclease Vector. Start designing today >

사양

클로닝 방법Restriction Enzyme/MCS

검출 방법Primer-probe

형태Liquid

형식Kit

반응 속도Fast

기술CRISPR-Cas9

제품라인GeneArt™

제품 유형Crispr Nuclease Vector With ofP Reporter Kit

프로모터U6, CMV

단백질 태그OFP fusion

수량10 reactions

리포터 유전자OFP

충분10 Reactions

용도(애플리케이션)Gene Expression, Cloning

반응 수10 Reactions

오버행3` overhangs

시작 물질Oligos (DNA)

Unit SizeEach
