Thermo Scientific™

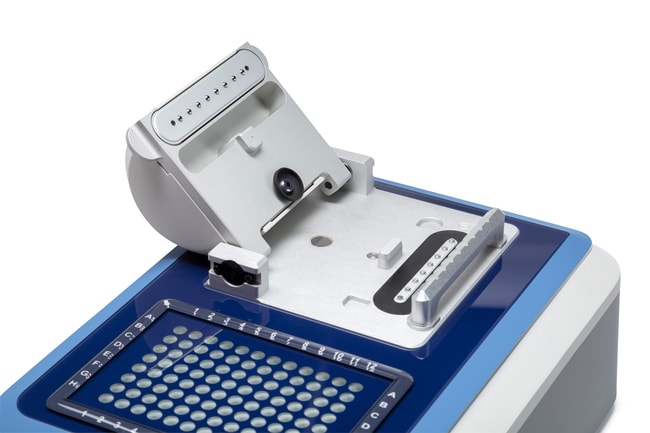

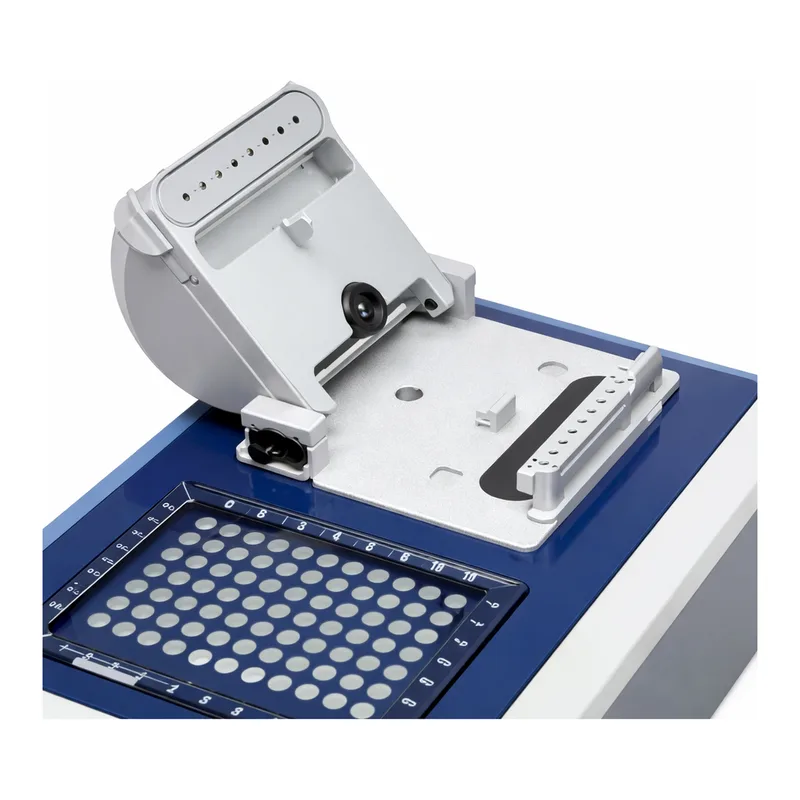

NanoDrop™ Eight Spectrophotometer

Avoid troubleshooting failed experiments with efficient analysis of your sample quantity and quality using the Thermo Scientifictm™ NanoDrop™ Eight UV-Vis spectrophotometer. Ideal for pharma/biotech and academic researchers measuring a larger number of nucleic acid and protein samples.

Increase the chances of success in your analyses with efficient analysis of your sample quantity and quality using the Thermo Scientific™ NanoDrop™ Eight UV-Vis spectrophotometer. Ideal for pharma/biotech and academic researchers measuring larger number of nucleic acid and protein samples. NanoDrop Eight measures 8 samples at a time in less than 20 seconds. Software identifies sample contaminants and reports true sample concentration with the built-in Thermo Scientific™ Acclaro™ Sample Intelligence technology. Optional software allows you to more easily comply with 21 CFR Part 11 regulation.

사양

흡수 정확도3% at 0.97 A, 302 nm, 23 ± 2°C

흡수 범위0.04 to 200 A (10 mm equivalent)

설명NanoDrop Eight UV-Vis Spectrophotometer

검출 한계2.0 to 10,000 ng/μL dsDNA; 0.03 to 145 mg/mL IgG

검출기 유형2048-element CMOS Linear Image Sensor

치수(길이 x 폭 x 높이)24 x 33 x 17 cm (9.4 x 13 x 6.7 in.)

광원Xenon Flash

Wavelength Range190 to 850 nm

전기 요구사항100/240 V

측정 시간<20 sec. (for 8 samples)

경로 길이1.0 mm, 0.2 mm, 0.1 mm (automatically adjusting)

전력 소비3 W at Idle; 15 W at Working Conditions

샘플 크기1 to 2 μL

스펙트럼 분해능≤1.8 nm (FWHM at Hg 254 nm)

워런티1 Year

파장 정확도± 1 nm

중량(영국식 단위)8.2 lb.

중량(미터법)3.7 kg

Unit SizeEach
