Daihan Science DAIHAN Aluminum-case Remotecontrolled Reaction Flask Heating Mantle, Bottom Out

상품 한눈에 보기

최대 450°C까지 가열 가능한 반응 플라스크용 히팅 맨틀. K-type 온도센서와 Ni-Cr 열선 내장, 알루미늄 또는 스틸 케이스 구성. 원격 조절기 및 온도 프로브 옵션 제공. Made in Korea, 2년 보증.

브랜드: Daihan Science
카테고리: Daihan Science

#Daihan Science

Daihan Science · Daihan Science DAIHAN Aluminum-case Remotecontrolled Reaction Flask Heating Mantle, Bottom Out

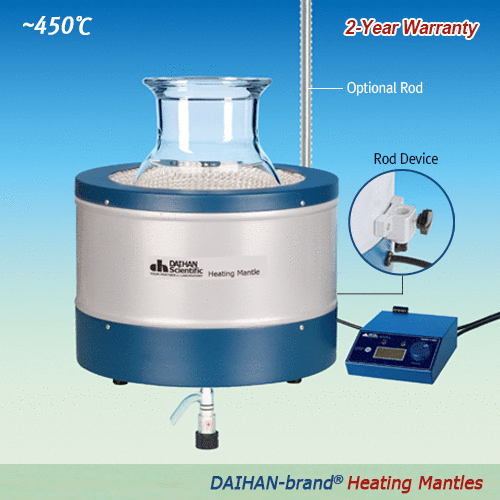

DAIHAN® Aluminum-case Remote-controlled Reaction Flask Heating Mantle, Bottom Outlet-type

반응조용 히팅맨틀로, 반응조 라운드 플라스크용이며 K-type 온도센서와 Ni-Cr 열선이 내장되어 있습니다.
450°C까지 가열 가능하며, 옵션으로 조절기와 외장 온도 프로브를 사용할 수 있습니다.

Made in Korea
Ideal for all types of reaction flasks
2000㎖~5000㎖: Non-magnetic Aluminum Case
10~50Lit: Powder-coated Steel Case
Controlled by serial number, certificate, delivery information, and traceable database system
Includes device for holding optional stainless-steel rod Ø12.7 mm for article support
Optional remote thermo controller and K-type thermo-sensor
2-Year Warranty

Mantle Specifications

Flasks (㎖)	Dia. Ø (mm)	Watts (W)	Inside Depth (mm)	Outside Ø × h (mm)	Catalog No. (230V)	Catalog No. (120V)
2,000	Ø165~169	550	110	Ø270×h160	DH.WHM8222	DH.WHM8222.1
3,000	Ø184~186	550	120	Ø270×h160	DH.WHM8232	DH.WHM8232.1
5,000	Ø224~226	800	135	Ø325×h180	DH.WHM8233	DH.WHM8233.1
10Lit	Ø278~282	1400	200	Ø400×h250	DH.WHM8226	DH.WHM8226.1
20Lit	Ø348~352	2000	230	Ø450×h300	DH.WHM8227	DH.WHM8227.1
NEW 30Lit	Ø410~420	3200	280	Ø515×h330	DH.WHM8230	DH.WHM8230.1
50Lit	Ø480~484	4000	300	Ø625×h360	DH.WHM8228	DH.WHM8228.1

Optional Remote Controller

(a) Analog Remote Controller: 5~100% of rated voltage, up to 1.2kW
(b) Digital Remote Controller: Ambient +5°C~700°C, ±1°C uniformity at set temperature

Type	Catalog No. (230V)	Catalog No. (120V)
(a) Analog	DH.WHM13500	DH.WHM23500
(b) Digital	DH.WHM12500	DH.WHM22500

Optional Temp. Probe & Stand Rod, Holder, Clamp

Catalog No.	Description
DH.WHP503040	Direct Contact Temp. Probe, K-type, “SS300”, L250×Ø4.8 mm
DH.WHP503050	“SS400”, L380×Ø4.8 mm
DH.WHP503041	“SS310”, Teflon Coated, L250×Ø5 mm
DH.WHP503051	“SS410”, Teflon Coated, L380×Ø5 mm
DH.WHP503037	Stand Rod, Ø12.7×L520mm, “RD300”, for Heating Mantles
DH.WHP503012	Holder / Clamp / Clip, “CL220”, for Temp. Sensor
