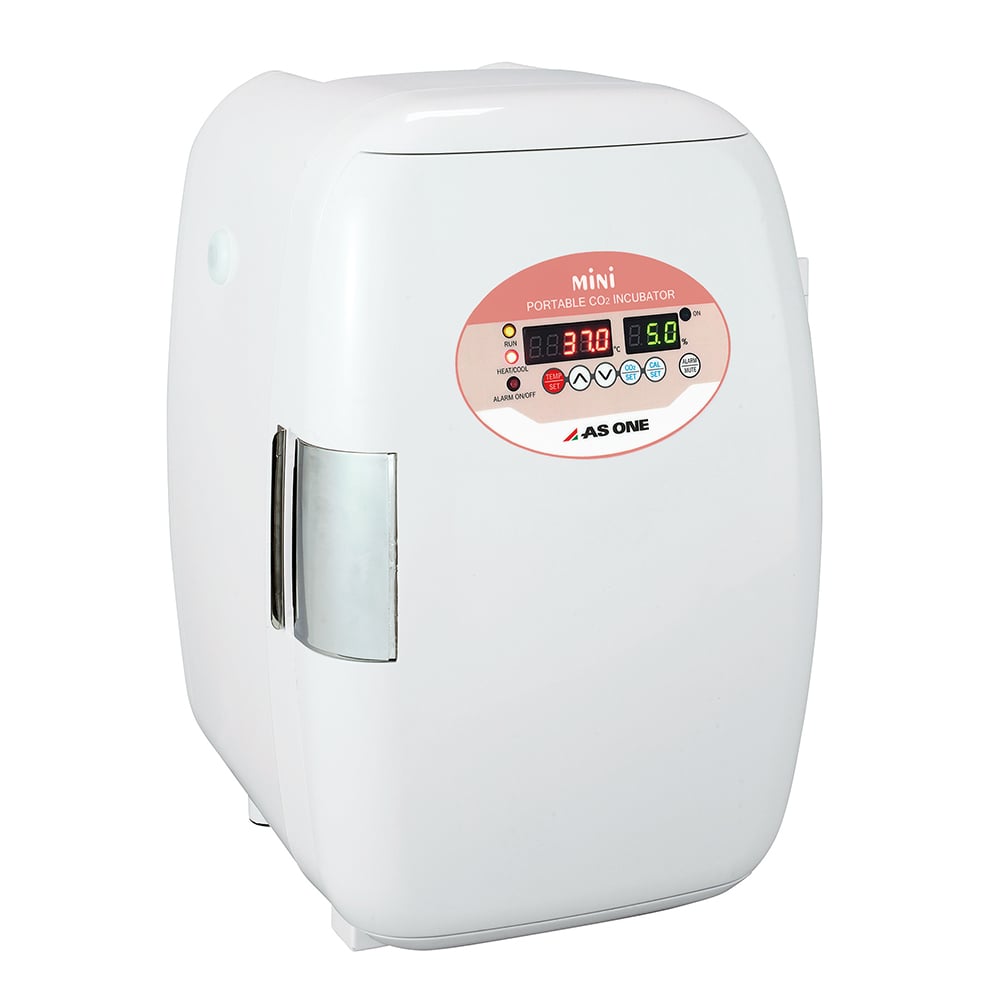

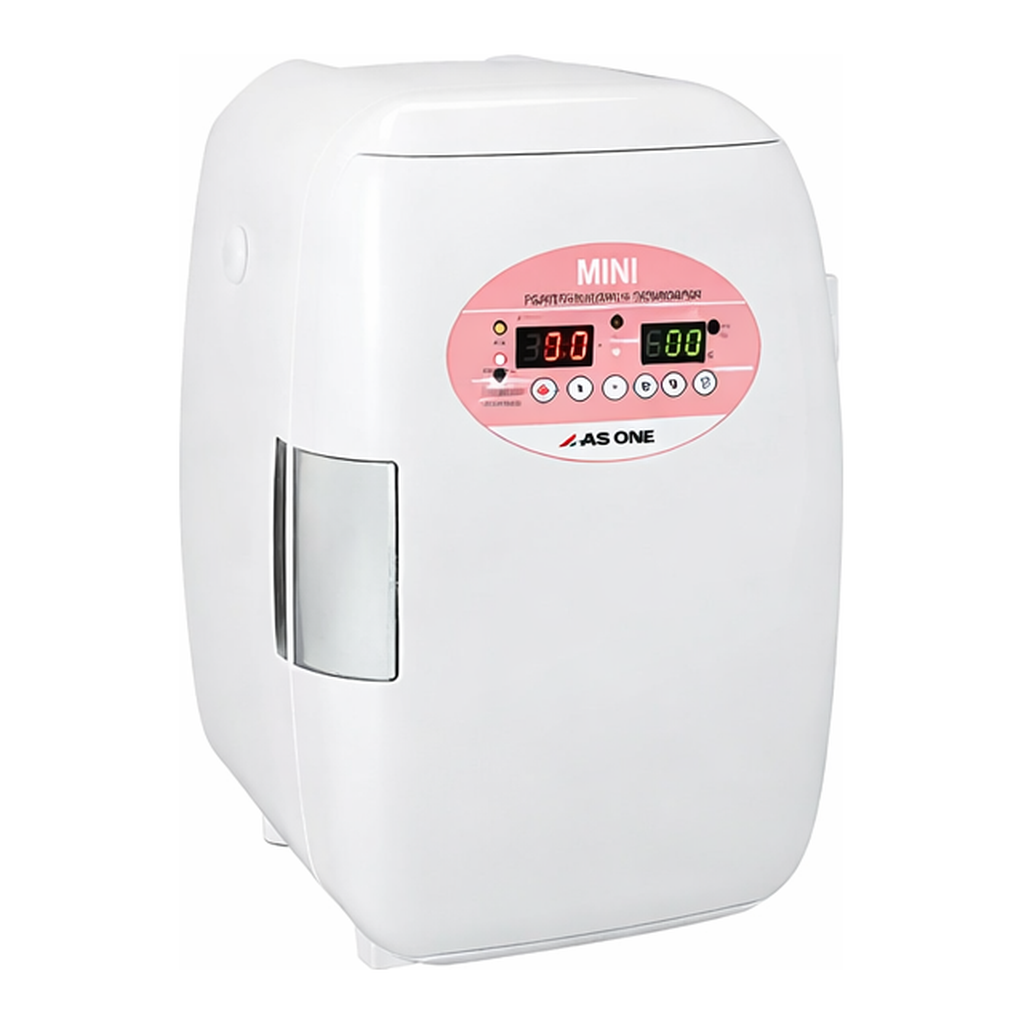

AS ONE 3-6105-01 Portable Mini CO2 Incubator (Minicell)　AS-203M

Features

• Since it is ultra-small, it can be installed in a clean bench.
• CO2 control is equipped with high-performance infrared (IR) sensors that are independent of temperature and humidity changes.
• Equipped with a cooling function using a Peltier element, it can be used at a wide range of set temperatures of 15~45°C.
• You can also use the included 12 V power cable to move your car.

Spec

• Model number: AS-203M
• Outer dimension (mm): 292 x 333 x 433
• Chamber internal dimensions: 224 x 200 x 340mm
• Chamber capacity: 16L
• Control temperature range: 15 - 45℃ (per 0.1℃)
• Temperature accuracy: Display system +/- 0.25℃ (at 37.0℃, surrounding 25℃)
• Control system: Peltier element
• CO2 concentration control range: 0 - 20% (per 0.1%)
• CO2 display precision: +/- 0.1% (at 5.0%)
• Sensor/dual beam system IR (infrared) sensor
• Alarm function: Temperature, CO2 concentration
• Gas supply pressure: 0.3 - 1.0bar (0.03 - 0.1MPa)
• Access port: φ11mm (chamber at the top left side)
• Chamber material: ABS resin
• Number of shelf board: Standard 2 boards (maximum 3 boards, made of stainless steel)
• Shelf board size: 220 x 164mm
• Power supply: 12VDC, 100VAC 50/60Hz 63W
• Weight: 6.8kg

Package size：350×420×500 mm　8.5 kg　 [About Package size]
