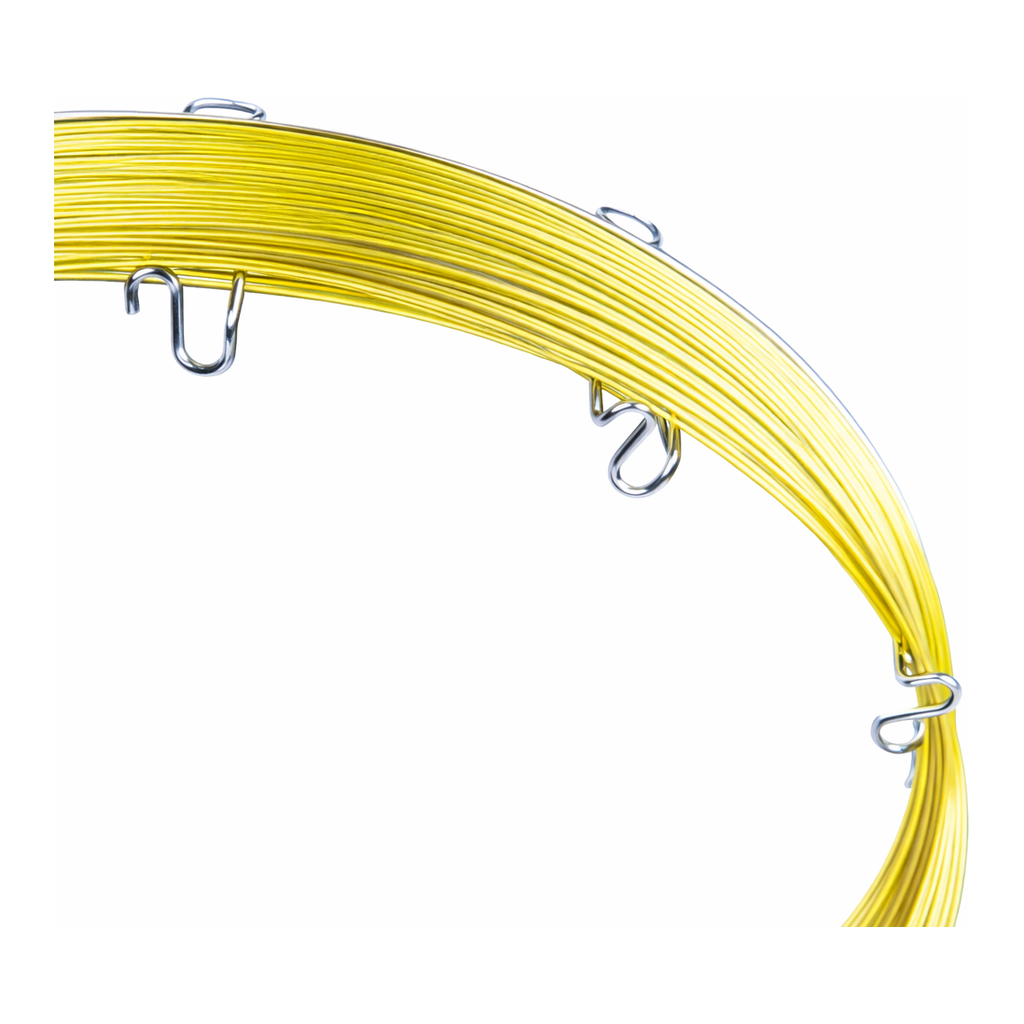

Restek Rt-QS-BOND PLOT Column, 15m, 0.53mm ID, 20um

Overview

Features & Benefits

• Intermediate polarity porous polymer PLOT column incorporating low 4-vinylpyridine.
• Separates ethane, ethylene, and acetylene to baseline.
• Temperature range: -60 to 250 °C.

A GC column phase cross-reference is also available.
Model your PLOT column using our Pro _EZ_GC Chromatogram Modeler.

Description

Porous polymers are unique, highly retentive stationary phases with a wide application range that are able to elute both polar and nonpolar compounds. They are very hydrophobic, so water has no impact on retention times and even elutes as a good chromatographic peak.

The Q-BOND is Restek’s most nonpolar and widely used porous polymer column; functional groups can be added to increase polarity (i.e., QS-, S-, and U-BOND). The process used to manufacture porous polymer PLOT columns causes the particles to adhere strongly to the walls of the tubing, minimizing particle generation.

This ensures reproducible performance from column to column, including selectivity and flow.
Recoiling of PLOT columns is not recommended, as it may cause particles to dislodge from the tubing walls.

Specifications
