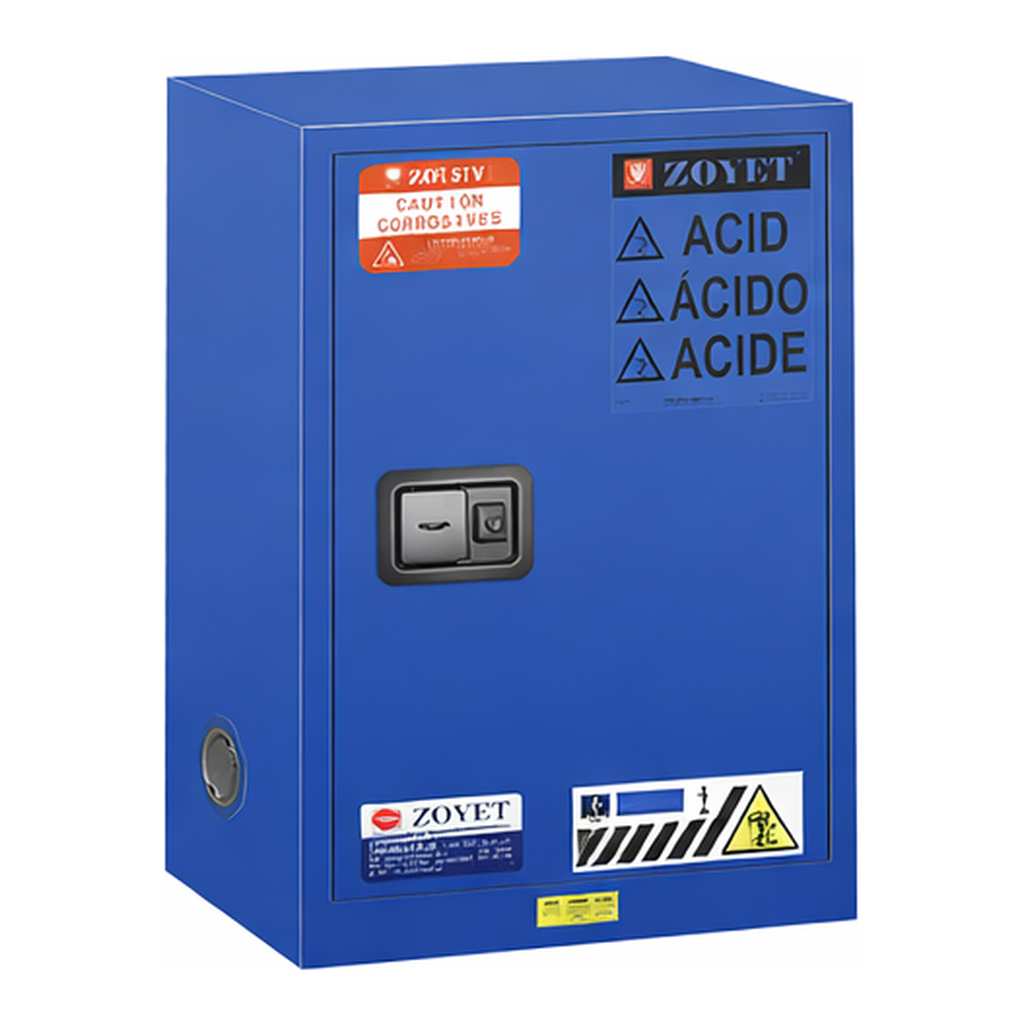

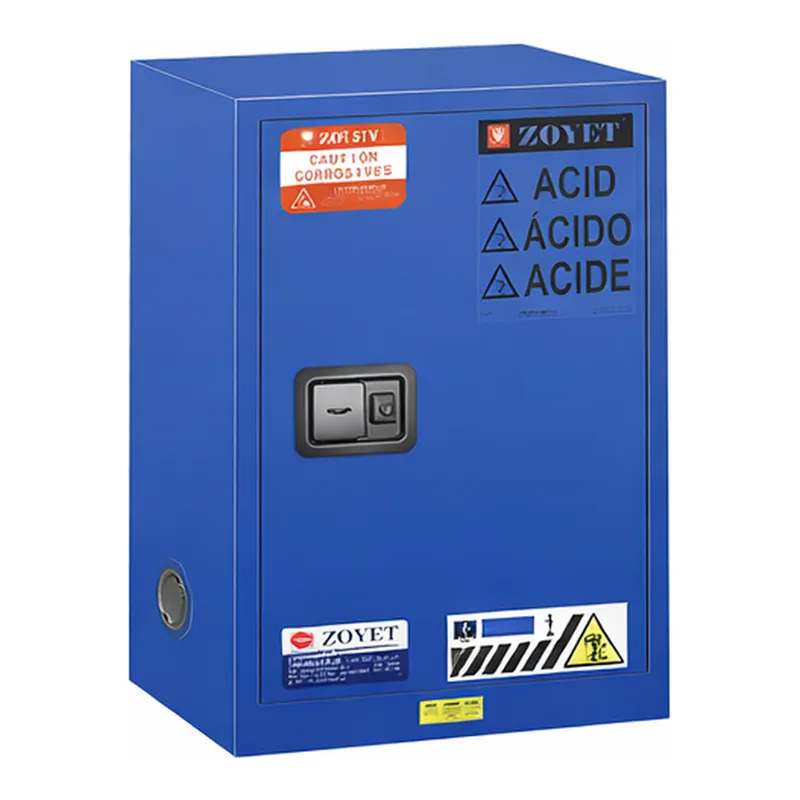

Zoyet Safety Cabinet for Acid & Corrosives

Zoyet® Safety Cabinet for Acid & Corrosives

Double Layer Fire Proof Steel with Insulation Layer, 15~410 Lit
Easy Open & Close 180° Door with Double Keys, Steel Shelves, Optional PP Trays, Manual/Self Closing-Door
Complies with OSHA 29 CFR 1910.106, NFPA CODE 30 and FM Standard
안전 캐비닛, 산 또는 부식성 시약 보관용

---

★ Safe Construction

• 이중 방화 스틸 시트 구조 (38mm 단열층 포함)
• 1.0mm 이상 두께의 스틸 시트를 용접하여 내구성 강화
• 내부 및 외부 표면은 청색 내식성 도장 처리
• 5cm 높이의 누출 방지 턱으로 유출 시 최대 보호
• 3점 인터락 잠금 시스템으로 안정적인 도어 잠금
• 180° 개폐 가능한 도어 및 이중 키 시스템

---

★ Special Features

• 리벳이 아닌 완전 용접 구조로 내구성 및 화재 안전성 향상
• 내식성 청색 도장 마감
• 패드락 및 키락 이중 잠금으로 보안 강화
• 상하단 통풍구에 플래시 어레스터 내장
• 5cm 누출 방지 수조로 유출액 보관 (EPA 요건 충족)
• 높이 조절 발판으로 불균형한 바닥에서도 안정적 설치
• 라벨 부착으로 화학물질 식별 용이
• 연속 피아노 힌지로 부드럽고 내구성 있는 도어 작동

---

※ Note

운송 및 설치비 별도

---

(1) Manual-closing Single Door, 15~83 Lit (Shelf Capacity: 50kg)

Cat. No.	Description	Dimensions & Weight
HW.ZYC0004B	1 Door, Manual, 1 Shelf, 15L	w430×d430×h560mm, 35kg
HW.ZYC0012B	45L	w590×d460×h890mm, 56kg
HW.ZYC0022B	2 Shelves, 83L	w590×d460×h1650mm, 85kg

---

(2) Manual-closing 2 Doors, 114~410 Lit (Shelf Capacity: 100kg)

Cat. No.	Description	Dimensions & Weight
HW.ZYC0030B	2 Doors, Manual, 1 Shelf, 114L	w1090×d460×h1120mm, 100kg
HW.ZYC0045B	2 Shelves, 170L	w1090×d460×h1650mm, 138kg
HW.ZYC0060B	227L	w860×d860×h1650mm, 165kg
HW.ZYC0090B	340L	w1090×d860×h1650mm, 190kg
HW.ZYC0110B	410L	w1500×d860×h1650mm, 270kg

---

(3) Self-closing Single Door, 15~83 Lit (Shelf Capacity: 50kg)

Cat. No.	Description	Dimensions & Weight
HW.ZYC0004BS	1 Door, Self-closing, 1 Shelf, 15L	w430×d430×h560mm, 35kg
HW.ZYC0012BS	45L	w590×d460×h890mm, 56kg
HW.ZYC0022BS	2 Shelves, 83L	w590×d460×h1650mm, 85kg

---

(4) Self-closing 2 Doors, 114~410 Lit (Shelf Capacity: 100kg)

Cat. No.	Description	Dimensions & Weight
HW.ZYC0030BS	2 Doors, Self-closing, 1 Shelf, 114L	w1090×d460×h1120mm, 100kg
HW.ZYC0045BS	2 Shelves, 170L	w1090×d460×h1650mm, 138kg
HW.ZYC0060BS	227L	w860×d860×h1650mm, 165kg
HW.ZYC0090BS	340L	w1090×d860×h1650mm, 190kg
HW.ZYC0110BS	410L	w1500×d860×h1650mm, 270kg

---

(5) Spare Steel Shelves for Flammable / Acid & Corrosives Safety Cabinets

Cat. No.	Description	Dimensions
HW.GB0004	Steel Shelf, for 15L Cabinets	w340×d340×h28mm
HW.GB0012	for 45/83L Cabinets	w500×d370×h28mm
HW.GB0030	for 114/170L Cabinets	w1000×d370×h28mm
HW.GB0060	for 227L Cabinets	w770×d770×h28mm
HW.GB0090	for 340L Cabinets	w1000×d770×h28mm
HW.GB0110	for 410L Cabinets	w1400×d770×h28mm

---

(6) Optional PP Trays for Acid & Corrosives Safety Cabinets

Cat. No.	Description	Dimensions
HW.PPGB0004	PP Tray for 15L Cabinets	w330×d330×h35mm
HW.PPGB0012	for 45/83L Cabinets	w490×d360×h35mm
HW.PPGB0030	for 114/170L Cabinets	w990×d360×h35mm
HW.PPGB0060	for 227L Cabinets	w760×d760×h35mm
HW.PPGB0090	for 340L Cabinets	w990×d760×h35mm
HW.PPGB0110	for 410L Cabinets	w1390×d760×h35mm

---

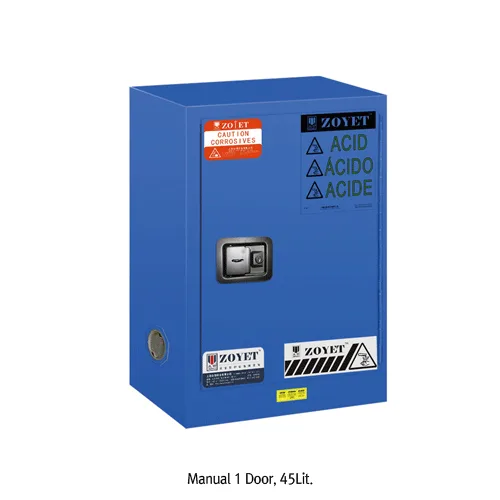

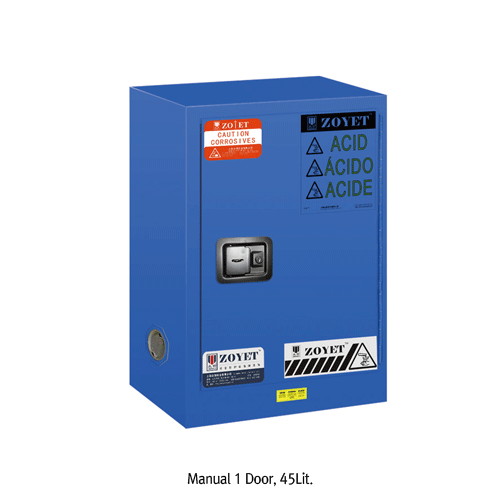

(1), (3) Single Door, 45L
(2), (4) 2 Doors, 340L (for Acid & Corrosives)
(5) Spare Steel Shelf
(6) Optional PP Tray

---

Includes Adjustable Level Feet × 4

---
