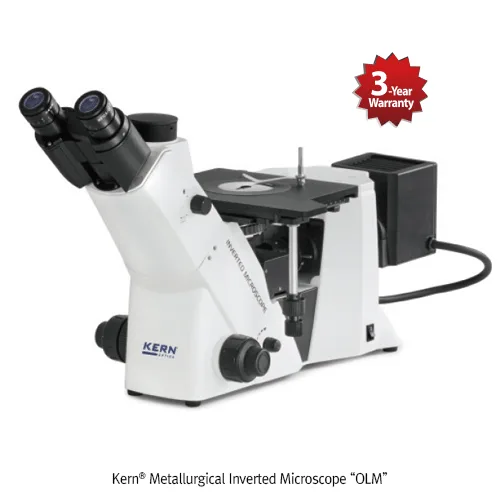

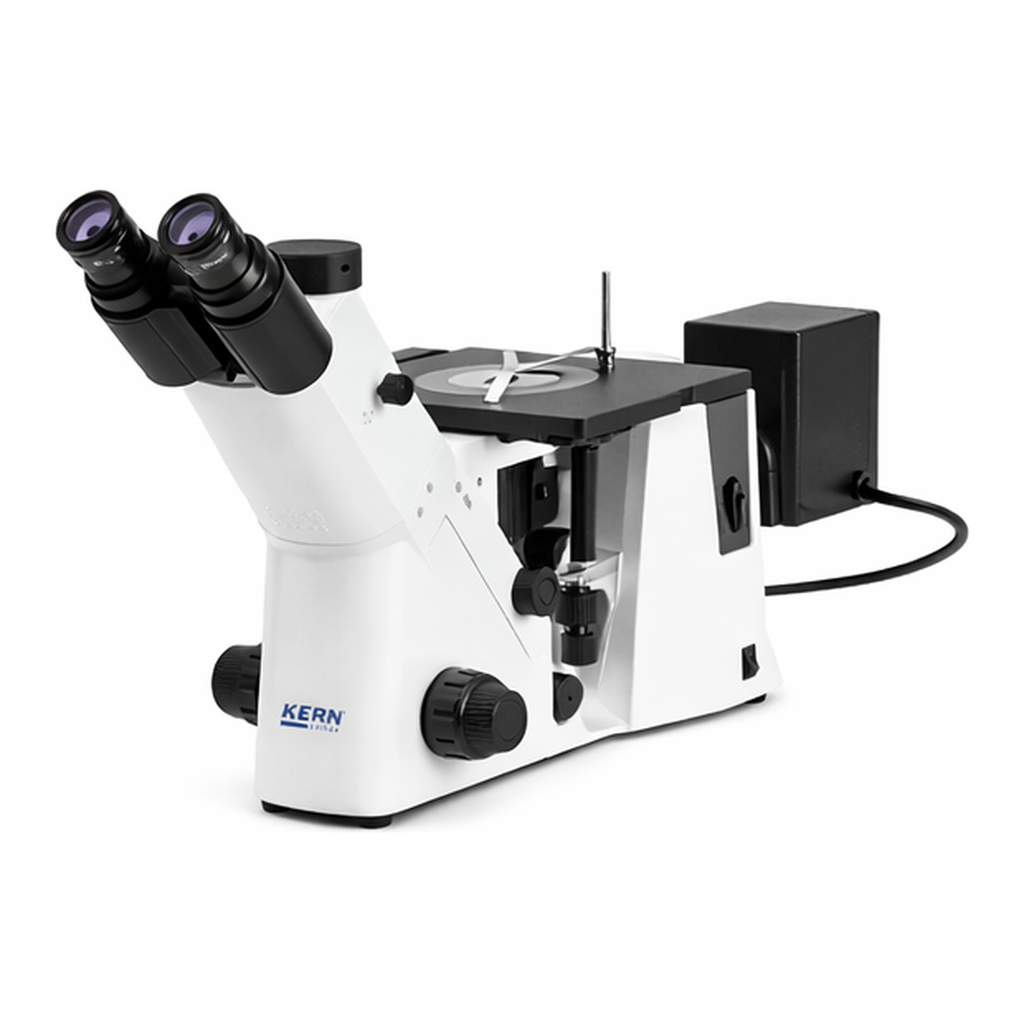

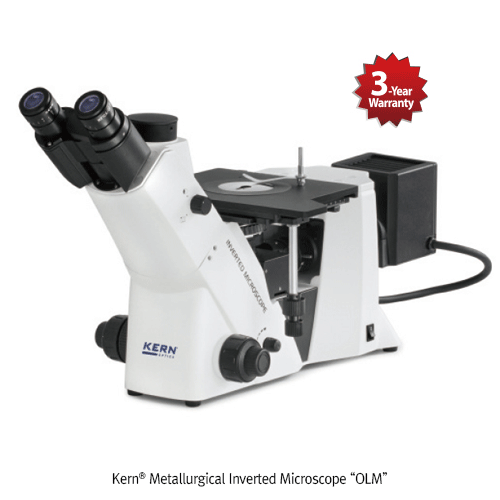

KERN Metallurgical Inverted Microscope “OLM”

KERN Metallurgical Inverted Microscope “OLM”

고성능 금속 도립 현미경
Adjustable 50W Halogen illumination, 50× ~ 500×
Suitable for surface quality testing of raw materials and finished products

Supplied by Kern® in Germany
3 Year Warranty

LAB LINE MET

The Inverted Metallurgical Microscope for Professional Applications

Features

• Ergonomic, robust, and extremely stable design
• Large working distance suitable for surface quality testing of raw materials and finished products
• Continuously adjustable 50W halogen illumination for optimal brightness
• Standard trinocular eyepiece tube included
• Simple polarizing unit (Analyzer and Polarizer) included
• Large mechanical stage with coarse and fine focusing knobs on both sides
• Compatible with a wide range of optional objectives
• Dust cover and user manual included

Technical Data & Applications

• Applications: Metallurgy, Material Testing, Quality Assurance
• Suitable Samples: Opaque and thick samples, workpieces (surfaces, fold lines, coatings)
• Optical System: Infinity Optical System
• Nosepiece: Quintuple
• Eyepiece Tube: Siedentopf 30° inclined
• Stage: Mechanical stage (W210 × D180 mm)
• Illumination: 50W halogen (incident), spare bulb included
• Diopter Adjustment: Both-sided
• Dimensions: 271 × 379 × 747 mm
• Net Weight: Approx. 12.5 kg

Standard Configuration

• 360° rotation
• Trinocular head
• HSWF 10× / ⌀23 mm eyepiece
• Infinity optical system (∞)
• 230V power supply

Specification Table
