Daihan Science DAIHAN Aluminum-case Beaker Heating Mantle, (1) Basic & (2) Stirring-type, 450℃
450℃까지 가열 가능한 알루미늄 케이스 반응용 비커 히팅맨틀로 기본형과 교반형 제공. 내식성 Ni-Cr 열선과 내장 온도 조절기 탑재. 교반형은 50~1200rpm 자기 교반 기능 포함. Made in Korea, 인증 및 추적 가능, 2년 보증.
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...
DAIHAN® Aluminum-case Reaction Vessel Heating Mantle
(1) Basic & (2) Stirring-type, 450°C, 100㎖~100Lit
반응용용 히팅맨틀로 온도 조절기와 Ni-Cr 열선 내장, “기본형” 및 “저어섞임형” 모델 제공.
- Made in Korea
- Ideal for all types of reaction vessels
- Certificate & Traceability : Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System
- Built-in Temp Controller. Nickel-Chrome Element “Coil-type” : Acid Resistant & Long Life Time
- Heating mantles for 50㎖~6,000㎖ flask include a device for holding an optional stainless-steel rod ⌀12.7mm for article support
- Max temperature: ~450°C
- 2-Year Warranty
Optional Accessories
- Optional Rod
- Rod Device

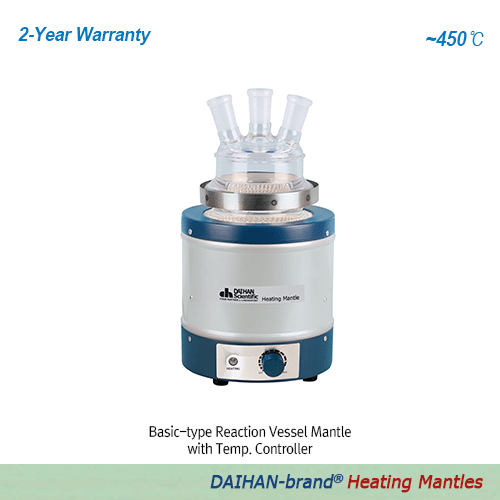

(1) Basic-type Reaction Vessel Mantle
Built-in Temp. Controller
100㎖~6,000㎖ : Non-magnetic Aluminum Case, 10Lit~100Lit : Powder-coated Steel Case
| Vessels (㎖) | Dia. ⌀ × h (cm) | Watts (W) | Mantle Inside Depth | Mantle Outside ⌀ × h (cm) | Catalog No. 230V | Catalog No. 120V |
|---|---|---|---|---|---|---|
| 100 | ⌀7 × h9 | 80 | 6.5cm | ⌀15.0 × h14.0 | DH.WHM8130 | DH.WHM8130.1 |
| 250 | ⌀7 × h13 | 140 | 9.0cm | ⌀15.0 × h16.5 | DH.WHM8131 | DH.WHM8131.1 |
| 500 | ⌀11 × h12 | 350 | 9.0cm | ⌀20.0 × h16.0 | DH.WHM81246 | DH.WHM81216 |
| 1,000 | ⌀13 × h14 | 450 | 10.0cm | ⌀20.0 × h18.0 | DH.WHM8133 | DH.WHM8133.1 |
| 2,000 | ⌀13 × h18 | 450 | 18.5cm | ⌀20.0 × h26.0 | DH.WHM8134 | DH.WHM8134.1 |
| 3,000 | ⌀13 × h22 | 550 | 22.5cm | ⌀20.0 × h30.0 | DH.WHM8135 | DH.WHM8135.1 |
| 6,000 | ⌀18 × h29 | 850 | 23.5cm | ⌀32.5 × h30.0 | DH.WHM8136 | DH.WHM8136.1 |
| 10,000 | ⌀21 × h46 | 1,400 | 35.0cm | ⌀35 × h48 | DH.WHM8138 | DH.WHM8138.1 |
| 20,000 | ⌀25 × h47 | 2,000 | 40.0cm | ⌀35 × h48 | DH.WHM8139 | DH.WHM8139.1 |
| 50,000 | ⌀29 × h74 | 2,000 | 67.0cm | ⌀40.0 × h75.0 | DH.WHM8145 | DH.WHM8145.1 |
| 100,000 | ⌀41.6 × h91 | 6,000 | 75.0cm | ⌀50.0 × h83.0 | DH.WHM8146 | DH.WHM8146.1 |
(2) Stirring-type Reaction Vessel Mantle
Built-in 50~1200rpm Mag-stir Speed & Temp. Controller
*100㎖~6,000㎖ : Non-magnetic Aluminum Case, 10Lit~20Lit : Powder-coated Steel Case*
With 1ea × PTFE Oval-type Magnetic Stirrer Bar, L25mm
10/20-Lit models Square-type Outside Shape
| Vessels (㎖) | Dia. ⌀ × h (cm) | Watts (W) | Mantle Inside Depth | Mantle Outside ⌀ × h (cm) | Catalog No. 230V | Catalog No. 120V |
|---|---|---|---|---|---|---|
| 100 | ⌀7 × h9 | 80 | 7.0cm | ⌀15.0 × h16.5 | DH.WHM8150 | DH.WHM8150.1 |
| 250 | ⌀7 × h13 | 140 | 9.0cm | ⌀15.0 × h18.5 | DH.WHM8151 | DH.WHM8151.1 |
| 500 | ⌀11 × h12 | 240 | 9.5cm | ⌀20.0 × h19.0 | DH.WHM8152 | DH.WHM8152.1 |
| 1,000 | ⌀13 × h14 | 350 | 10.5cm | ⌀20.0 × h26.0 | DH.WHM8153 | DH.WHM8153.1 |
| 2,000 | ⌀13 × h18 | 450 | 16.5cm | ⌀20.0 × h26.0 | DH.WHM8154 | DH.WHM8154.1 |
| 3,000 | ⌀13 × h22 | 550 | 22.5cm | ⌀20.0 × h30.0 | DH.WHM8156 | DH.WHM8156.1 |
| 6,000 | ⌀18 × h29 | 850 | 23.5cm | ⌀32.5 × h30.0 | DH.WHM8158 | DH.WHM8158.1 |
| 10,000 | ⌀25 × h32 | 800 | 23.5cm | ⌀35 × h30.0 | DH.WHM8159 | DH.WHM8159.1 |
| 10Lit | ⌀21 × h46 | 1,400 | 40.0cm | ⌀35 × h48 | DH.WHM8160 | DH.WHM8160.1 |
| 10Lit | ⌀24 × h41 | 500 | 37.0cm | ⌀35 × h48 | DH.WHM8161 | DH.WHM8161.1 |
| 20Lit | ⌀25 × h47 | 2,000 | 48.5cm | ⌀35 × h65 | DH.WHM8162 | DH.WHM8162.1 |
Optional Stainless-steel Rod, Holder & Clamp
| Catalog No. | Description |
|---|---|
| DH.WHP503037 | (3) Stand Rod, ⌀12.7 × L520mm, “RD300”, for Heating Mantles |
| DH.WHP503012 | (4) Holder / Clamp / Clip, “CL220”, for Temp. Sensor |
(3) Stand Rod “RD300”, ⌀12.7 × L520mm
(4) Holder / Clamp / Clip for Temp. Probe
(1) Basic-type Reaction Vessel Mantle with Temp. Controller
(2) Stirring-type Reaction Vessel Mantle with Temp.-/Stirring-Controller
Includes 1 × Oval-type Stirrer Bar
