Ulvac Optional Accessory for Vacuum Pumps
Ulvac 진공펌프 전용 액세서리로 체크밸브, 클램프, 오일, 오일 미스트 트랩 등 다양한 옵션 제공. 오일 역류 방지, 오염 방지, 오일 수명 연장 기능. G/GLD/GCD 시리즈 호환. 실험실 및 산업용 진공 시스템 유지보수에 적합.
- 카테고리
- Pump Accessories
- 판매단위
- 1/ea
카탈로그
17개 옵션 · 카탈로그 번호를 클릭하면 복사됩니다Daihan Science · Ulvac Optional Accessory for Vacuum Pumps
UlvacⓇ Optional Accessory for Vacuum Pumps
진공펌프용 다양한 액세서리로, 오일 역류 방지, 오염 방지 및 오일 수명 연장을 위한 구성품을 제공합니다.

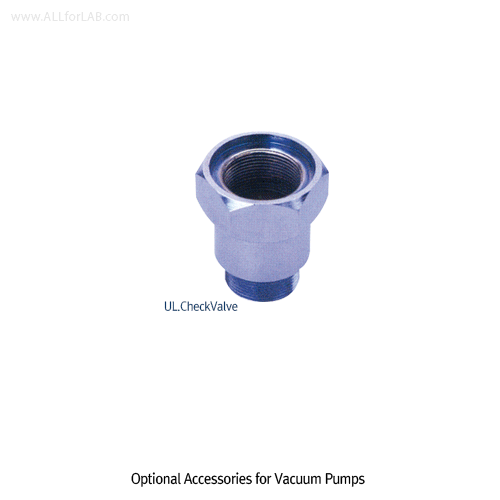

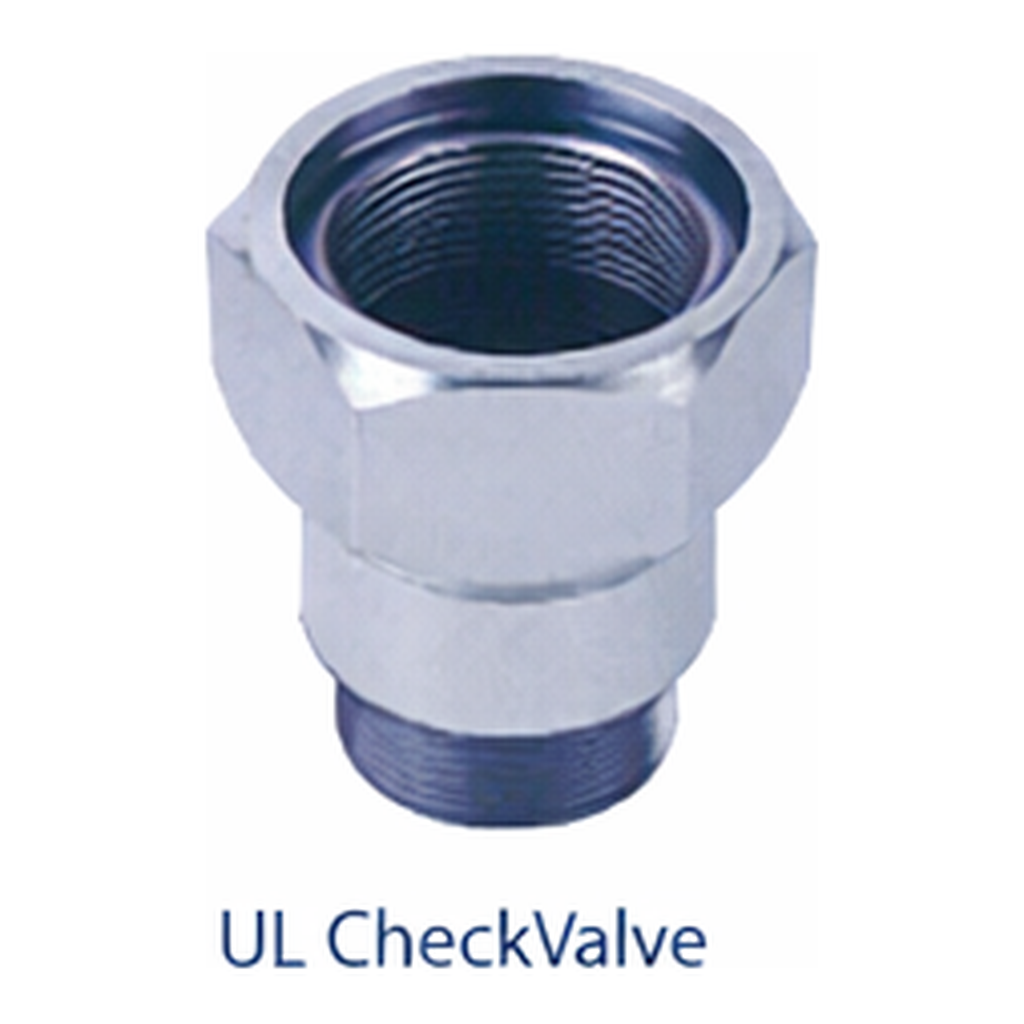

1. Check Valve (UL.CheckValve)
- Prevent Backflow of Oil
- For All Ulvac G-series Models (for Less Than 60 Lit)
| Model | Description | Application |
|---|---|---|
| UL.CheckValve | Check Valve | G-series (<60 Lit) |
2. KF 25 Fittings (Clamp, Center Ring, Flange, Nozzle)
| Model | Description | Material | Specification |
|---|---|---|---|
| UL.SCK.1025 | Clamp, KF 25 | — | — |
| UL.SCK.2025 | Center Ring, KF 25 | SUS 304 | — |
| UL.SCK.4025 | Blank Flange, KF 25 | SUS 304 | — |
| UL.SCK.2518 | Nozzle, KF 25 | SUS 304 | ⌀18mm(Top) / ⌀40mm(Bottom) |
3. Vacuum Pump Oil (1·4·18 Lit)
For G/GLD-series, General Type
| Model | Description | Capacity |
|--------|--------------|-----------|
| UL.MR100.01 | Oil for Vacuum Pump | 1 Lit |
| UL.MR100.04 | Oil for Vacuum Pump | 4 Lit |
| UL.MR100.18 | Oil for Vacuum Pump | 18 Lit |
For GCD-series, Anti Corrosive Type
| Model | Description | Capacity |
|--------|--------------|-----------|
| UL.SOM.04 | Oil for Anti-corrosive Vacuum Pump | 4 Lit |
4. Oil Mist Trap (OMT/OMC)
- Collects oil vapor generated during high vacuum operation
- Prevents air pollution and returns collected oil to the vacuum pump
Standard Type (OMT): for G/GLD Series
| Model | Description | Capacity |
|--------|--------------|-----------|
| UL.OMT050A | Oil Mist Trap | <60 Lit |
| UL.OMT100A | Oil Mist Trap | 120 Lit |
| UL.OMT200A | Oil Mist Trap | 240 Lit |
Anti-corrosive Type (OMC): for GCD Series
| Model | Description | Capacity |
|--------|--------------|-----------|
| UL.OMC050 | Oil Mist Trap | <60 Lit |
| UL.OMC200 | Oil Mist Trap | 240 Lit |
5. In-line Traps
- Removes moisture in air during pump operation
- Collects evaporated oil and returns it to the vacuum pump
| Model | Description | Capacity |
|---|---|---|
| UL.OMI100 | In-line Trap | <120 Lit |
| UL.OMI200 | In-line Trap | 240 Lit |
6. Oil Filtration System (for Oil-Sealed Vacuum Pumps, 100~1000 Lit/min)
- Removes water, acid, and dust in oil
- Extends oil life and prevents pump failure
- Suitable for vacuum drying, freeze drying, chemical, medical, and food equipment
| Model | Description |
|---|---|
| UL.UFO012 | Oil Filtration System |
