Daihan Science 사각챔버/전면문 고압 멸균기 90Lit Front Door Steam Sterilizer “MaXterileTM FL90”

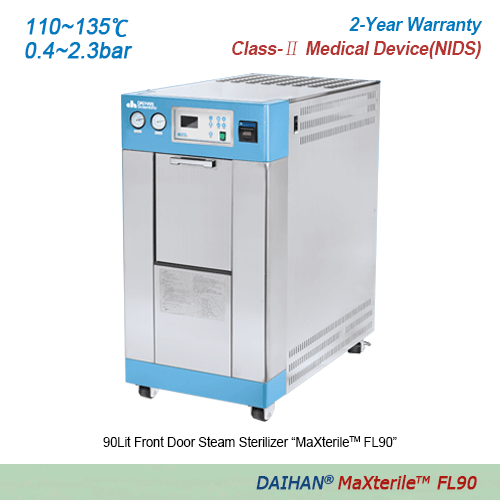

DAIHAN® 90Lit Front Door Steam Sterilizer “MaXterile™ FL90”

사각챔버/전면문 고압 멸균기
Class-II Medical Device (NIDS)
온도 범위: 110~135℃ / 압력: 0.4~2.3 bar
2-Year Warranty

---

주요 특징

• Built-in Steam Generator, Water Ejector Vacuum Pump, Thermal Printer 내장
• 2개의 스테인리스 천공 트레이(Perforated STS Tray) 포함
• HEPA 필터 장착 (0.3㎛, 효율 99.97%)
• 자동 도어 잠금 및 경보 시스템
• Pre- & Post-Vacuum Drying 기능
• Microprocessor PID 제어 시스템
• LCD 디지털 디스플레이 및 LED 작동 표시등
• 6가지 기본 프로그램 + 사용자 정의 1개 프로그램
• 자가 진단 및 오류 코드 표시 기능
• 시각 및 청각 경보 시스템
• 이동이 편리한 잠금 휠(Handy Locking Wheel)
• Made in Korea / PL(Product Liability) 보증
• Serial Number 기반 인증 및 추적 가능

---

Class-B Sterilization Cycle (EN285 Standard)

Pre-vacuum → Steam Generation → Steam Injection → Sterilizing → Exhaust → Post-vacuum Drying → End of Cycle

적용 분야: Dental, Clinical, Medical, Biotechnology 등

---

Specifications & Ordering Information

Spec.	Model	“MaXterile™ FL90”
Capacity	90 Lit
Sterilizing Cycle-type	Class-B Cycle by EN-285 Standard
Temp. Range	110~135℃
Pressure & Gauge	0.4~2.3 bar, Built-in Analog & Digital Pressure Gauge
Timer & Alarm	Digital Timer, Status & End Alarm
Display	Digital LCD (Back-Light) & LED Lamp
Controller	Microprocessor Digital PID Control (Full Automatic)
Programmable Function	6 Pre-set + 1 Customizable Program
Door-type	Manual Vertical Sliding Door, Auto Locking
Chamber	Reinforced & Electro Polished Square Chamber (Double Jacket)
Tray (Included)	2 Stainless-steel Perforated Tray
Safety Circuit	Over-Temp / Pressure / Structure, Sensor Error Detection
Material	Interior: STS 304 Pressure Vessel / Exterior: STS
Dimension (W×D×H) & Weight	Interior: 383×712×378㎜, 90ℓ / Exterior: 625×959×1130㎜, 220㎏ / Packing: 850×1100×1400㎜, 295㎏
Power Consumption	6.0 kW
Electric Reqts.	220V 50/60Hz, 1 Phase
Cat. No.	DH.SteF8001

* Other Specifications available upon request.
* 운임 별도.

---

Spare Accessories

Cat. No.	Description	Ea. Price, ₩
DH.SteFA1001	STS Perforated Tray, 323×667×54㎜ for “MaXterile FL90”
DH.SteA1006	Thermal Paper Package, 4 Rolls for Thermal Recorder
DH.SteA1016	Replacement HEPA Filter-kit

---

Validation Service (IQ, OQ)

Cat. No.	Description	Ea. Price, ₩
DH.SteF5001	Validation Service (IQ, OQ) for “MaXterile™ FL90”

---

Program Cycle

MODE	Temperature (℃)	Pressure (bar)	Sterilizing Time (min)	Drying Time (min)
Unwrapped 1	121	1.1	20	30
Unwrapped 2	134	2.1	5	30
Wrapped 1	121	1.1	20	30
Wrapped 2	134	2.1	5	30
Liquid	121	1.1	20	0
Bowie Dick	134	2.1	3.5	0
User Program	110–135	0.4–2.3	4–30	0–60

---

구성품:
(1) STS Perforated Tray
(2) Thermal Paper Roll

---

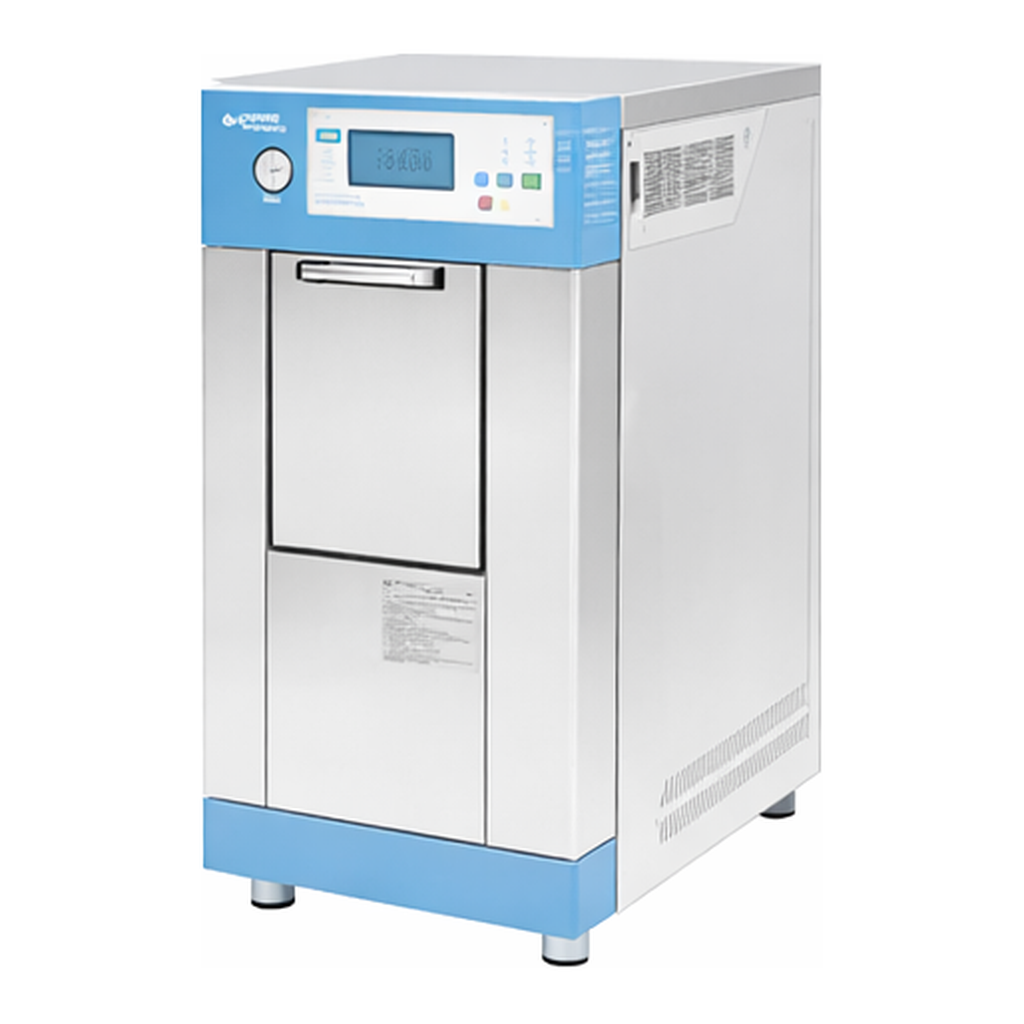

제품 이미지
