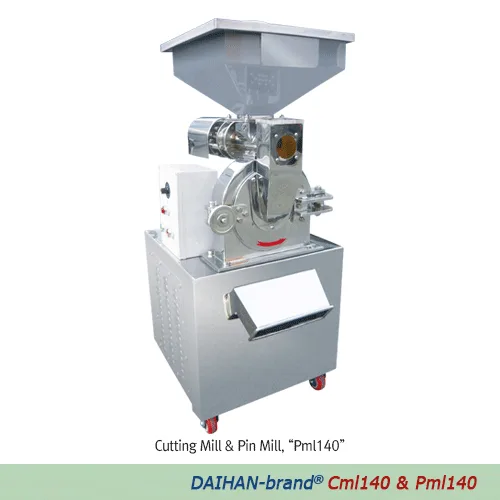

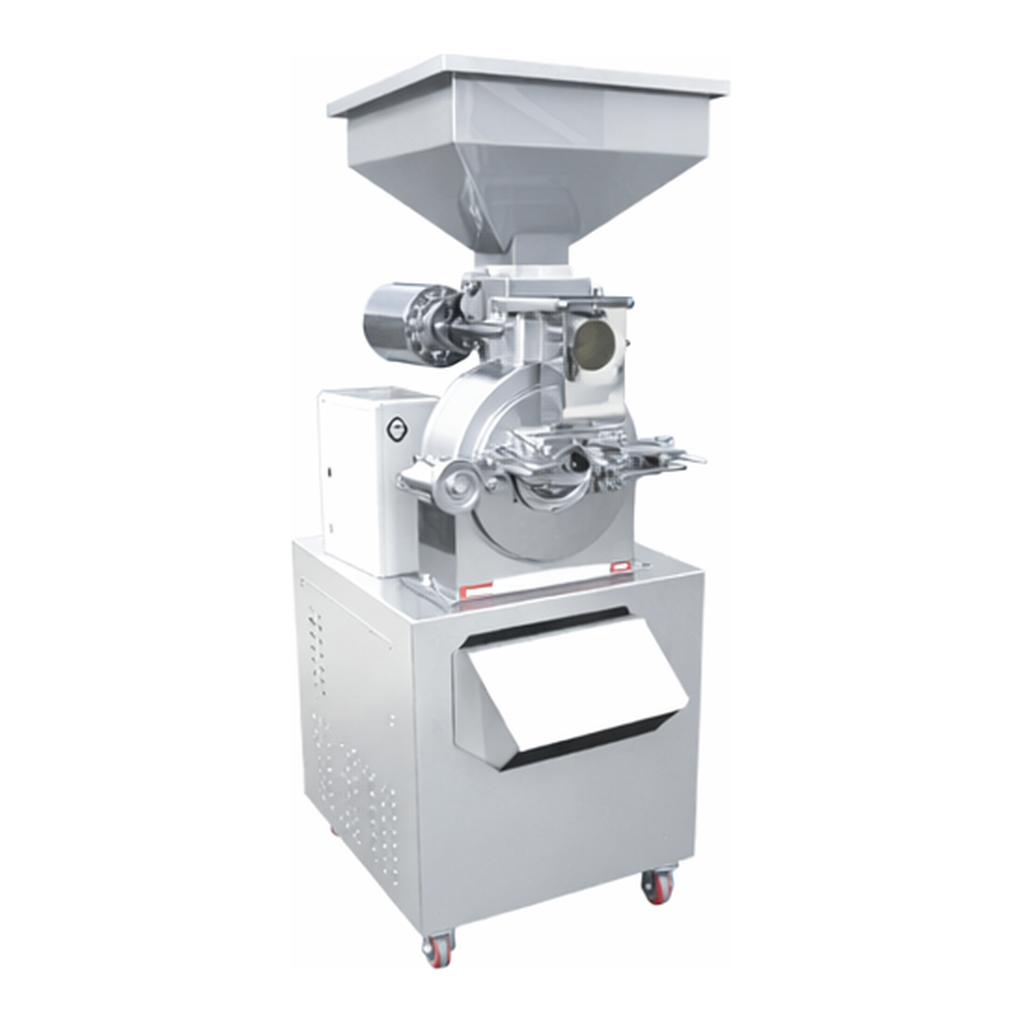

Daihan Science Wisd Cutting Mill & Pin Mill Common Use “Cml140” & “Pml140”

Wisd Cutting Mill & Pin Mill Common Use “Cml140” & “Pml140”

Dry type, Max 4600rpm, Output <0.4~1.3mm
Stainless-Steel Body, Powerful 1Phase 3HP Motor, Maximum Load 5Kg, Input <10mm
실험실용 커팅밀 & 핀밀 겸용 장비

---

NEW

Made in Korea

• PL(Product Liability) Insurance 적용
• Certificate & Traceability : Serial Number, Certificate, Delivery Information, Traceable Database System 관리
• 화학, 제약, 합성수지, 금속, 세라믹, 광물 등 다양한 재료에 적합
• 입자 크기에 따른 광범위한 분쇄 가능
• 기본 제공: 0.5mm Screen Sieve
• 저소음·저발열 설계로 고품질 분쇄물 제공

---

Features

• 고강도 및 경도: SUS304 Body/Feeder/Rotor, SUS430 Screen, SS400 Base Frame
• 회전 시 발생하는 공기 흐름과 충돌로 원료를 분쇄
• 내부 스크린 교체로 원하는 입자 크기 조절 가능
• 분쇄 디스크 교체로 다양한 원료 분쇄 가능
• 분리 및 조립이 용이, 세척 및 유지관리 간편
• 구성품: 4ea Screen Sieve, 2ea Screen Frame, 2ea Filtered Collection Hopper 포함

---

Specifications & Ordering Information

Spec.	Model	“Cml140” Cutting Mill	“Pml140” Pin Mill
Grinding Disc	Knife type Rotor 8ea × Cutting Knife	Pin type Rotor & Stator 10ea × Rotor Pin, 17ea × Stator Pin
Capacity	5kg (<3~10mm)	5kg (<3~10mm)
Hopper/Size (W×D×H) / Input Raw Material	120×120×200 / <10mm	120×120×200 / <10mm
Screen / Output Material Dia.	Include: 4ea×140 / <0.5mm	Include: 4ea×140 / <0.5mm
Option	4ea×60, 80, 100, 180 / <1.3, 0.8, 0.6, 0.4mm	4ea×60, 80, 100, 180 / <1.3, 0.8, 0.6, 0.4mm
Speed & Motor	Feeder: 25RPM, 40W, DC MOTOR	Mill & Cutting: 4600RPM, 1Phase 3HP
Body Dia.	Ø165mm	Ø165mm
Dimension & Weight	450×550×1150, Net 85kg / Gross 90kg	450×550×1150, Net 85kg / Gross 90kg
Power Consumption	2.2kW	2.2kW
Electrical Reqts.	1 Phase, 230V 60Hz	1 Phase, 230V 60Hz
Cat. No.	DH.Cml7010	DH.Pml7010
Price, Each. ₩

Other specifications available upon customer request.
※ 운임 약 ₩45,000 별도

---

Spare Accessories for Standard Chamber

Cat. No.	Description	Ea. Price, ₩
DH.PmlR1011	(1) Grinding Disk Rotor, Stainless-steel, “R1011”, for “Pml140”
DH.PmlS1012	(2) Grinding Disk Stator, Stainless-steel, “S1012”, for “Pml140”
DH.CmlK1011	(3) Grinding Disk Knife, Stainless-steel, “K1011”, for “Cml140”
DH.PmlS1018	(4) Screen Sieve 180, Stainless-steel, Output Material Dia.<Ø0.5mm, “S1018”, for “Pml140”, “Cml140”

---

Optional Accessories

Cat. No.	Description	Ea. Price, ₩
DH.PmlS1015	(4) Screen Sieve 60, Stainless-steel, Output Material Dia.<Ø1.3mm, “S1015”, for “Cml140”, “Pml140”
DH.PmlS1016	(4) Screen Sieve 80, Stainless-steel, Output Material Dia.<Ø0.8mm, “S1016”, for “Cml140”, “Pml140”
DH.PmlS1017	(4) Screen Sieve 100, Stainless-steel, Output Material Dia.<Ø0.6mm, “S1017”, for “Cml140”, “Pml140”
DH.PmlS1019	(4) Screen Sieve 180, Stainless-steel, Output Material Dia.<Ø0.4mm, “S1019”, for “Cml140”, “Pml140”

---

이미지 캡션

(1) Grinding Disk Rotor
(2) Grinding Disk Stator
(3) Grinding Disk Knife
(4) Screen Sieve

---
