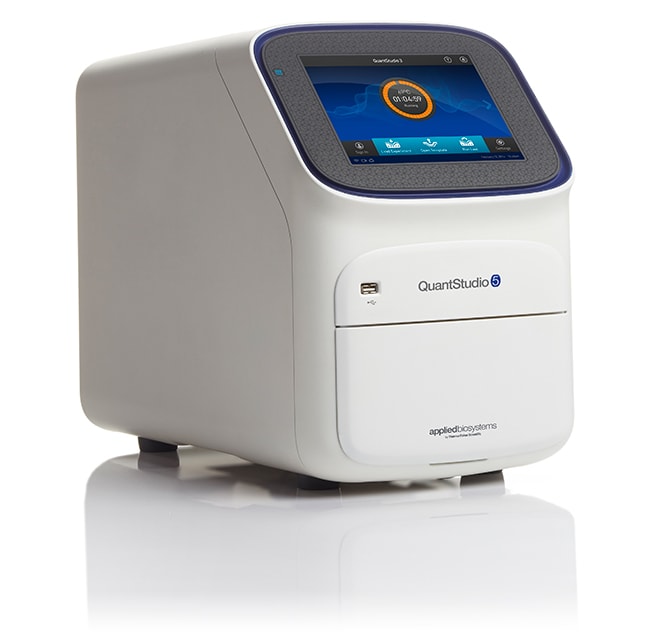

Thermo Fisher Scientific QuantStudio 5 Real-Time PCR System, 96-well, 0.1 mL, laptop

Applied Biosystems™ QuantStudio™ 5 Real-Time PCR System (96-well, 0.1 mL, Laptop)

The Applied Biosystems QuantStudio 5 Real-Time PCR System is designed for users who need superior performance, maximum dye versatility, and security options in an affordable and easy-to-use real-time PCR platform. The optimized Design and Analysis software is ideal for both first-time and experienced users.

When connected to iConnect, Thermo Fisher’s cloud-based platform, the QuantStudio 5 system provides access to your data wherever and whenever you need. Using proven OptiFlex technology (featuring six decoupled channels and white LED) and six independent Veriflex temperature zones, the QuantStudio 5 96-well system enables improved data accuracy and sensitivity for a wide range of genomic applications.

The system also includes built-in software features supporting 21 CFR Part 11 compliance, ensuring electronic record security and prevention of unauthorized instrument access.

주요 특징

• Proven OptiFlex technology (6 decoupled channels / 21 filter combinations with white LED) for trusted results
• User account management, locked workflow, and Pause features for greater control of experiment data
• Built-in software features to support compliance with 21 CFR Part 11 guidelines
• Secure cloud-based software for increased accessibility and storage options
• Simplified instrument software with interactive touchscreen for ease of use
• Available in 96-well 0.2 mL or 96-well 0.1 mL formats

iConnect

iConnect provides scientists with a secure place to store, analyze, and share data. Upload data directly from the instrument or from any location with web access. Applied Biosystems qPCR Analysis Modules within iConnect are web browser-based tools that are flexible, fast, and easy to use.

Easy to Use

The QuantStudio 5 Real-Time PCR System is compact, factory-calibrated, and delivered in user-friendly packaging for quick installation and immediate use. The interactive touchscreen offers a modern user experience, and pre-optimized protocol templates enable fast setup for users of any experience level.

Design and Analysis Software Options

Option 1: Cloud Software

• Web browser-based configuration (PC or MAC)
• Streamlined interface for improved usability and response time
• Secure cloud access to data anytime, anywhere
• No installation, licenses, or version updates required

Option 2: Desktop Software

• Traditional configuration on Windows 10 OS
• Streamlined usability and response time
• No license purchase required

Total Control

Built-in software features support compliance with 21 CFR Part 11 guidelines. User account management, locked workflow, and Pause features provide greater control of experiment data.

Multiplex Performance

OptiFlex technology ensures improved well-to-well and instrument-to-instrument data accuracy. The 96-well system features six decoupled excitation and emission filter channels (21 filter combinations) with white LED illumination.

Sensitive Data Analysis

Detect changes in target quantity as small as 1.5-fold in single-plex reactions and achieve up to 10 logs of linear dynamic range.

High Application Versatility

Simple, optimized protocols and intuitive software support a wide range of applications including gene expression, genetic variation, and gene regulation studies.
