■ Schuett
● 재질 : Stainless Steel & Safety Glass
● 각 모델별 특징

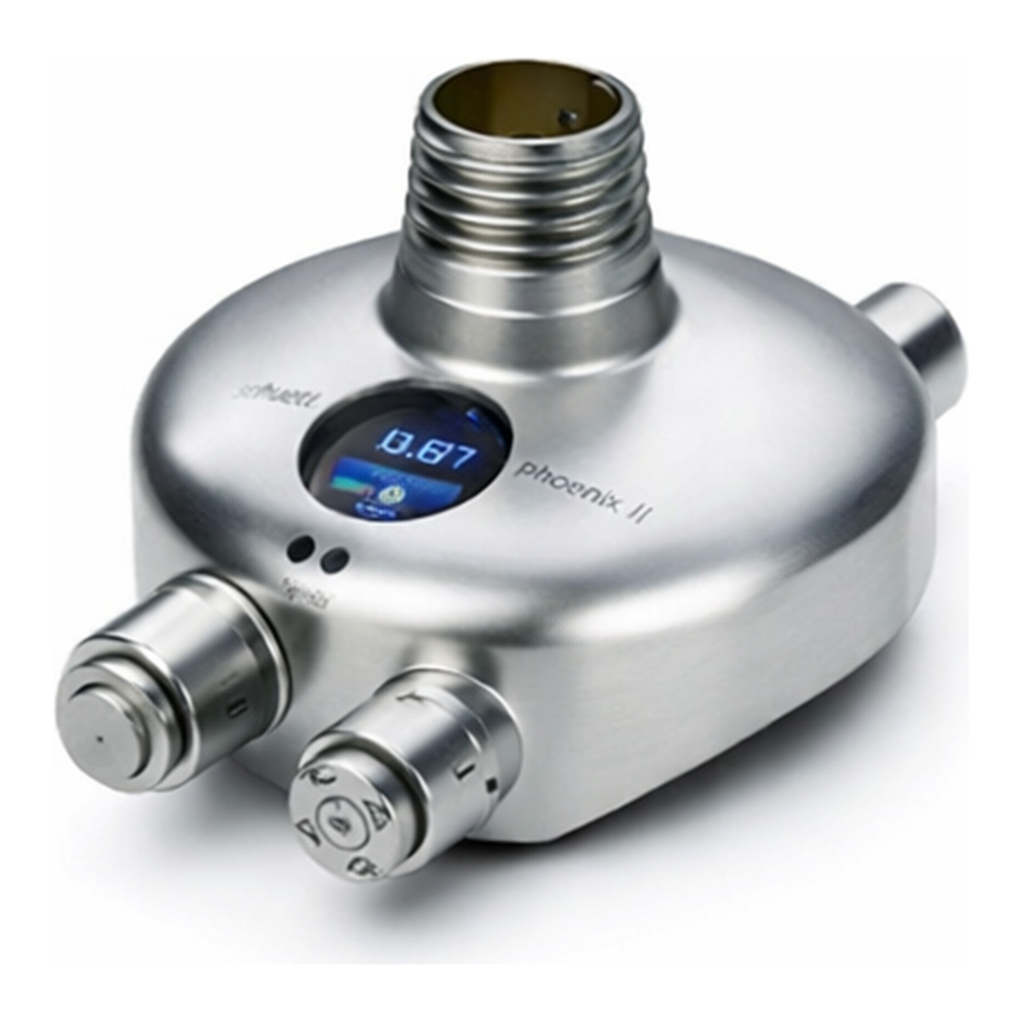

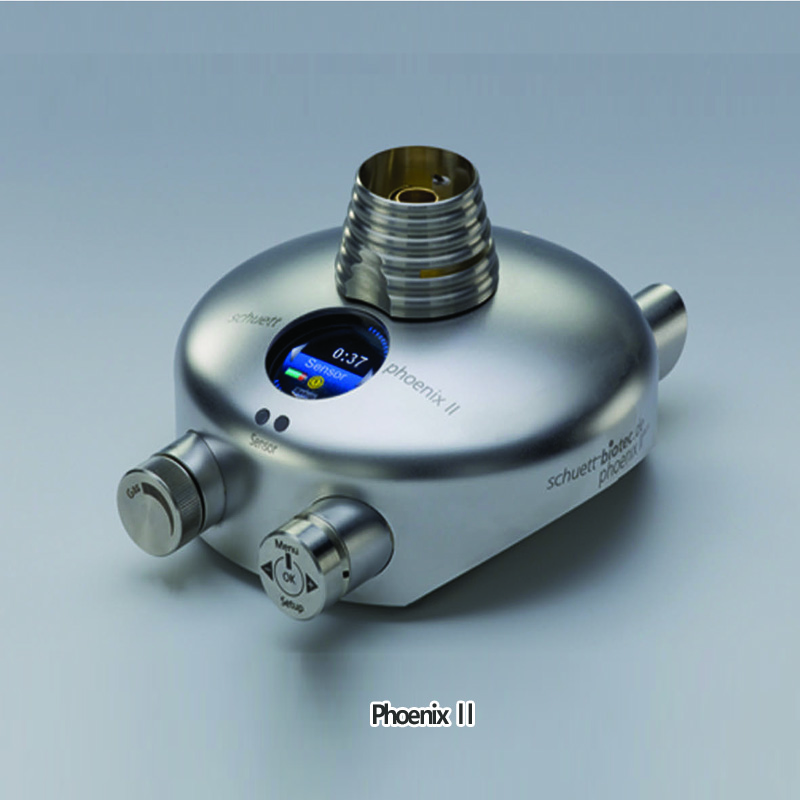

① Phoenix Ⅱ : Color Display, Language Selection, Sensor & Foot-switch
- Start/Stop flame by activating sensor 1x/2x,
use foot switch or press button by hand On/Off.
Burn time is displayed
② Phoenix Ⅱ ECO : Foot-switch, without display/sensor
- Start/Stop flame by foot-switch or press button by hand (On/Off)
③ Phoenix Ⅱ ACCU : Color Display, Language Selection,
Sensor and built-in high-power battery
- Start/Stop flame by activating sensor 1×/2×,
use foot switch (Option) or press button by hand On/Off.
Burn time and battery status displayed
- 30시간 까지 충전식 Battery로 사용 가능 (Continuous 15시간)
● 3가지 작동방식 적용
① 적외선 센서 (IR Sensor : 0 ~ 80 mm 공간)
- 1초 ~ 120분 동작 시간 설정
② Foot Switch 방식 1
- 누르고 있는 동안 버너 동작
③ Foot Switch 방식 2
- 한번 누르면 On, 다시 누르면 Off
● Foot Switch : Stainless Steel 재질의 고급형의 스위치
● Color LED-Display
● 모든 Gas와 같이 사용할 수 있음
● Digital로 작동시간, 기기 상태 등을 표시해줌
● 공급 Gas와 Air의 양을 조절할 수 있음
● UV - Resistant Case
● 경사형 Stand 내장
● 구성 : Burner, Foot Swith, Power Supply
● Safety : Overheat Protection, Safety Shutdown
| Cat. No |
Model |
Description |
| B14-108-015 |
3355202 |
Phoenix Ⅱ, Sensor, Foot Switch |
| B14-108-025 |
3354202 |
Phoenix Ⅱ ECO, Foot Switch |
| B14-108-035 |
3356202 |
Phoenix Ⅱ ACCU, 충전식 Battery |
| 구분 |
|
Description |
| Burn-Time (Adjustable) |
|
1 sec ~ 120 min (ECO 제외) |
| Power Supply |
|
100 ~ 240 V, 50/60 Hz |
| Connection Clip / Gas Hose |
|
10 mm Inner Diameter |
Working
Pressure |
Natural Gas |
20 mbar |
| Propane / Butane |
50 mbar |
|
Rated
Heat load |
Natural Gas |
600 W |
| Propane / Butane |
1200 W |
|
| Consumption |
Natural Gas |
0.06 cbm/h |
| Propane / Butane |
77.2 g/h |
|
| Size |
|
w125×d160×h85 nm |
| Weight |
|
approx. 1000 g |
Optional Accessory
| Cat. No |
Model |
Description |
| B14-108-115 |
3358392 |
Foot - Switch Made of Stainless Steel ① |
| B14-108-125 |
3358332 |
Glass Spatter Guard ② |
| B14-108-135 |
3358342 |
Flame Shield ③ |
| B14-108-148 |
3358352 |
Instrument Tray |
| B14-108-155 |
3357362 |
250g 부탄가스 연결용 Adapter ④ |
| B14-108-175 |
3359212 |
Gas Safety Hose for Natural Gas (0.75 m) |
| B14-108-185 |
3935700 |
Burner - Head (Spare - Part) |
