■ 구성:
- Tube Mill Control : Tube Mill Control 본품, MT 40 1개, MMT 40 1개
- Tube Mill 100 Control : Tube Mill 100 Control 본품, MT 40 1개, MT 100 1개, MMT 40 1개
■ Disposable Grinding Chamber
- PP일회용 Chamber를 사용하여 사용이 편리함
- Grinding 후 Sample 보관 및 이송용으로 사용 가능
- No Clean Cost
■ 본체에 덮개가 달려 있어 조용하고 안정함
■ OLED Display, USB Inerface
■ IKA
| Cat. No |
Model |
Type |
용량 |
| M03-05-041 |
4180000 |

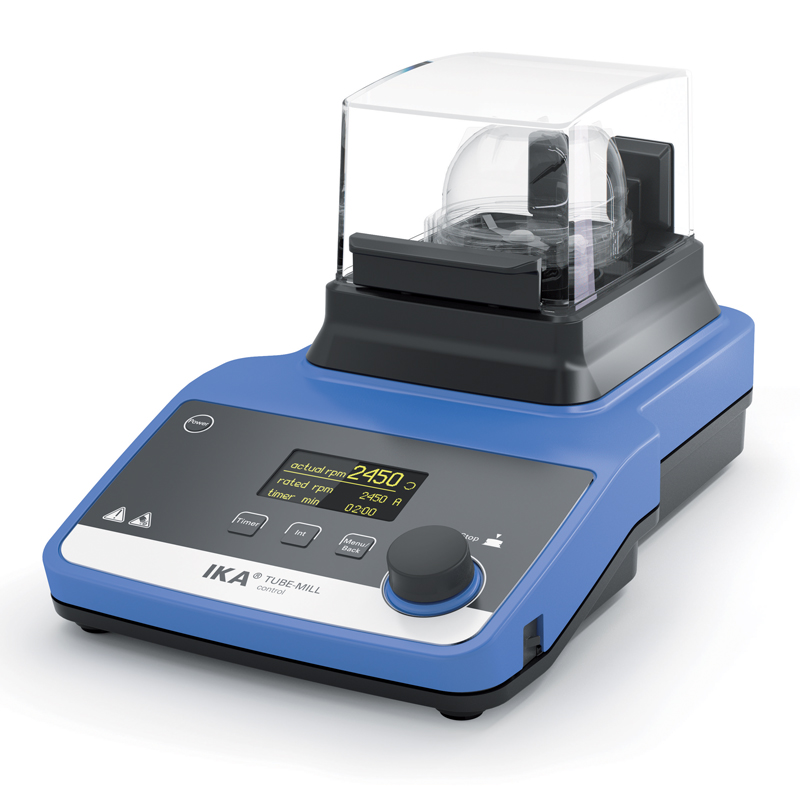

Tube Mill Control |
40 ml |
| M03-05-031 |
20014733 |
Tube Mill 100 Control |
100 ml |
| Cat. No. |
M03-05-041 |
M03-05-031 |
| Type |
Tube Mill Control |
Tube Mill 100 Control |
| --- |
--- |
--- |
| Motor Rating (in/output) |
100 / 80 W |
|
| Speed |
5,000 ~ 25,000 rpm |
|
| Useful Volume |
40 ml |
100 ml |
| Duty Cycle On/Off |
5 sec ~ 3 min |
|
| Overload Protection |
Yes |
|
| Circumferential Speed |
65 m/s |
|
| Max. Feed Hardness |
5 Mohs |
|
| Max. Feed Grain Size |
10 mm |
|
| Size / Weight |
w180× d300× h170 mm / 2.7 kg |
w180× d300× h212 mm / 2.8 kg |
| Power |
220 - 240 V, 50/60 Hz |
|
Disposable PP Grinding Transparent Chamber
| Cat. No |
Model |
Type |
용량 |
| M03-05-046 |
4425000 |
MT40 |
40 ml |
| M03-05-019 |
20003165 |
MMT40 |
40 ml, Reusable |
| M03-05-023 |
20008386 |
MT100 |
100 ml |
