■ Freezing Point (빙점 방식) Osmoneter
- 검체를 순간적으로 얼려 그 어는점을 분석하여 측정하는 방식
- 수용액의 삼투도는 총 순 수의 응고점과 용액의 빙점을 비교 측정하여 결정함
(물의 빙점은 0 ℃, 염분 농도 1 Osmol/kg 인 용액의 빙점은 -1.858℃)
■ 많은 수의 샘플을 측정 할때 적당함
■ Disposable plastic measuring vessels save time and money
■ Determines The Total Osmolality of Aqueous Solutions
■ The instrument requires very small sample volumes
■ Its rapidity allows serial measurements in a very short time
■ Gonotec
■ Application
• Routine and research • In-vitro Fertilization • Forensic medicine
• Urology • Electron microscopy • Nephrology
• Physiology • Haemodialysis/Haemofiltration • Clinical laboratories
• Veterinary medicine • Intensive care laboratories • Botany
• Paediatrics • Pharmacy • Gynaecology
• Dispensaries
■ Feature
- Menu-driven Operation
- Small sample volume: 50 µL standard sample volume
- Measuring time: approximately 70 seconds per single measurement
- Automatic error detection: display shows clear error message
- Constant stand-by mode allows operation over a long period of time
| Cat. No |
Model |
Description |
| O04-78-200 |

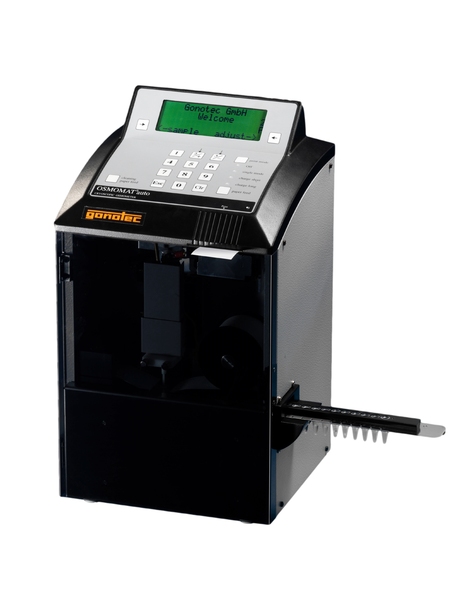

OSMOMAT-Auto |
Osmometer Fully Automatic |
| Cat. No. |
O04-78-200 |
| Model |
OSMOMAT-Auto |
| --- |
--- |
| Sample Volume |
≤ 50 ul |
| Test Time |
Approx. 70 Seconds |
| Reproducibility |
＜ ±1% |
| Measuring Range |
0 up to 2500 mOsmol/kg |
| Resolution |
1 mOsmol/kg Over the entire range |
| Crystallization |
By inoculation of the sample with ice crystal |
| Cooling |
Peltier-cooling system with heat dissipation by air |
| Display |
LCD Display, 4 Lines with 20 digits |
| Ambient Temp. |
10 °C - 30 °C |
| Internal Printer |
Alpha-numerical Matrix Printer, 5×7 Matrix |
| Measurement |
Fully automatic measurement of up to 20 samples |
| Weight |
11.6kg |
| Cat. No |
Model |
삼투압 농도(mOsmol/kg) |
Ampul |
| O04-78-955 |
30.9.0100 |
100 |
10 |
| O04-78-959 |
30.9.0290 |
290 |
|
| O04-78-963 |
30.9.0020 |
300 |
|
| O04-78-967 |
30.9.0500 |
500 |
|
| O04-78-971 |
30.9.0850 |
850 |
|
| O04-78-975 |
30.9.2000 |
2000 |
|
| Cat. No |
Model |
Description |
| O04-78-991 |
35.9.0010 |
Measuring Vessels for Osmomat Auto |
| O04-78-915 |
32.03 |
Barcode Reader |
| O04-78-995 |
30.9.1010 |
Printer Paper |
| O04-78-999 |
35.9.1030 |
Cleaning Paper |
