■ 실험실, 학교, 연구, 품질관리(QC), 과학 연구용으로 알맞음

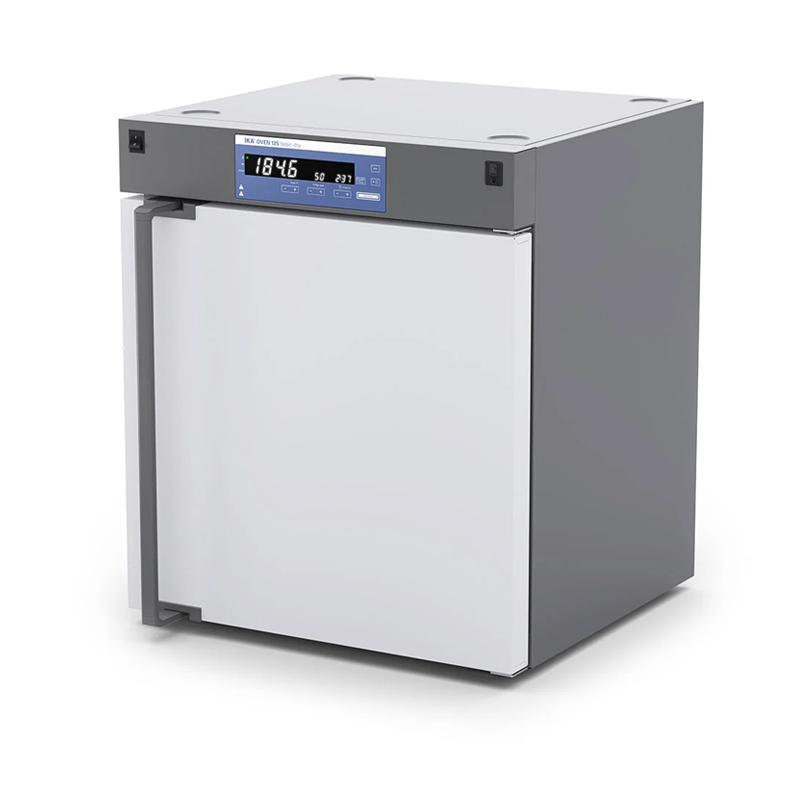

■ 구성 : IKA 125 Dry Oven (basic-type), Wire grid tray (IO T 1.00) 2개, Tilt Protection 2개,
Screwdriver, USB A-B Cable, Calibration Certification
■ Clear LED Display and Control Menu
■ Door Open시 온도가 떨어지면 음향 및 시각적 경고 신호를 제공함
■ USB Interface
■ Designed acc. to DIN 12880 TB (Class 1) : 과열 방지 등급
■ Protection class according to DIN EN 60529 (IP20)
■ IKA
| Cat. No |
Model |
Door Type |
Capacity |
| O01-05-021 |
35002869 |
Standard |
125 L |
| O01-05-023 |
35002870 |
Glass |
|
| Cat. No. | | O01-05-021 | O01-05-023 |
| --- | --- | --- |
| Model | | 35002869 | 35002870 |
| --- | --- | --- |
| Capacity | | 125 L | |
| Controller | Display | LED | |
| Resolution | 0.1 K | |
| Timer | 7 segment LED (1 min - 100 days) | |
| Door Type | | Standard | Glass |
| Temperature | Range | Ambient +5℃ to +250℃ | |
| Stability at 150℃ | ±0.5 K | |
| Size | Interior (mm) | w550×d450×h525 | |
| External (mm) | w700×d650×h825 | |
| Weight | | 74 kg | 81 kg |
| Electric
Supply | Power | 220 - 240 V, 50/60 Hz | |
| Power Input / Standby | 2450 W / 2 W | |
| Heat Output | 2400 W | |
| Other | Max. Tray | 6 ea | |
| One Tray Max. Load | 30 kg | |
| Air Outlet Port (id) | Φ48 mm | |
Optional Accessory
| Cat. No. |
Model |
Description |
| O01-05-031 |
20024935 |
Wire Grid Tray, chrome plated, w548×d421 mm |
| O01-05-009 |
20007600 |
Wire Grid Tray, enhanced, w546×d410 mm, Max. 60 kg |
| O01-05-033 |
20009564 |
PT 100.31 Temp. Sensor, Stainless Steel |
| H03-05-651 |
20017366 |
Labworldsoft® 6 Pro |
| O01-05-011 |
20007601 |
Roller Frame |
| O01-05-013 |
20007602 |
Roller Box |
| O01-05-015 |
20007603 |
Table Top Work Plate |
| O01-05-017 |
35001326 |
Spacer Frame |
