Lklab Korea Accessory for Safety System/ HPLC 안전캡용 악세사리

SCAT Europe

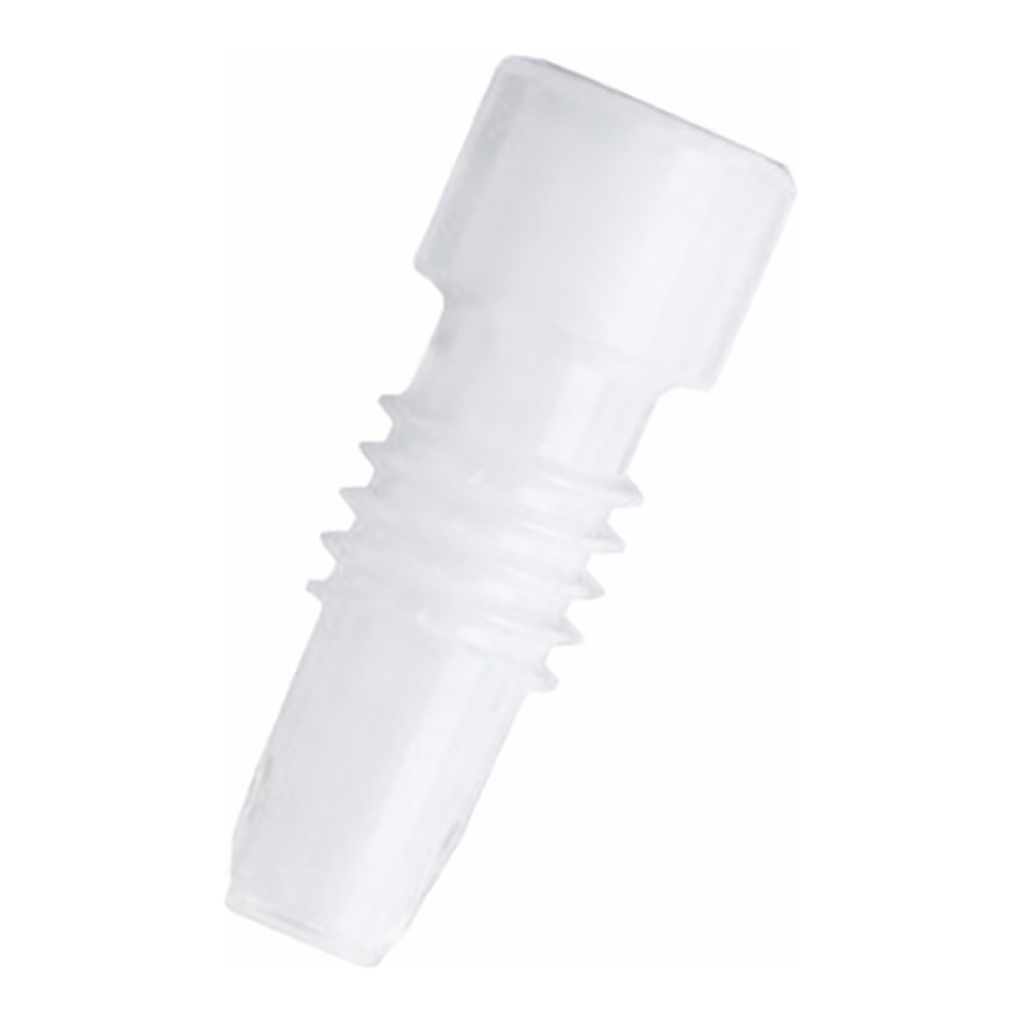

PTFE Fitting with Integrated Ferrule

Cat. No.	Model	Description (OD)
S01-633-822	107041	PTFE Fitting w/ Integrated Ferrule Φ1.6 mm
S01-633-826	107042	PTFE Fitting w/ Integrated Ferrule Φ2.3 mm

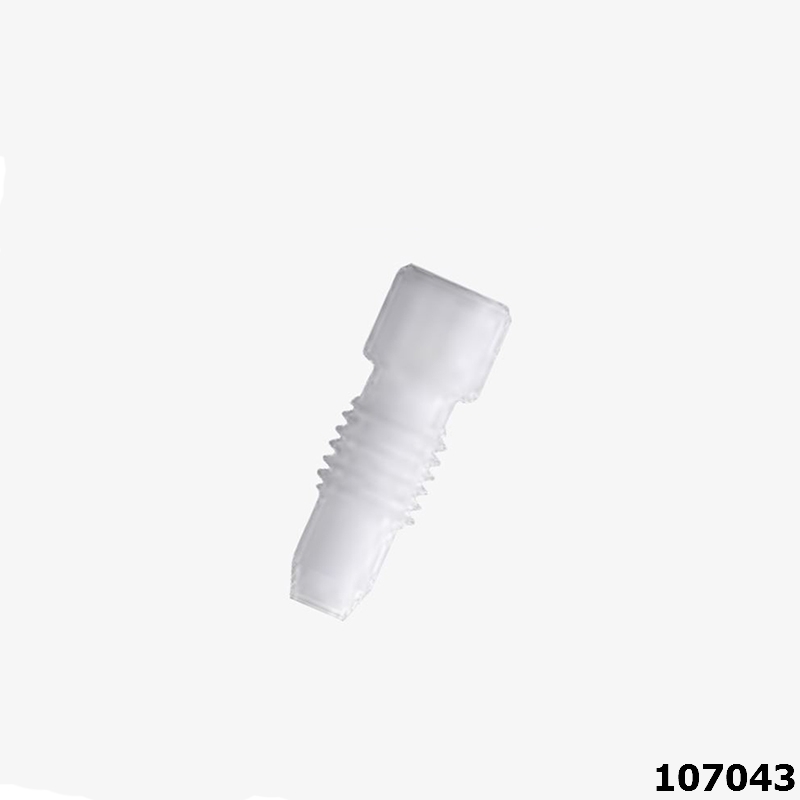

S01-633-830	107043	Tube Φ3.2 mm (1/8”)용
S01-633-834	107044	Tube Φ6.35 mm (1/4”)용
S01-633-838	107045	Tube Φ4.76 mm (3/16”)용

• Safety Cap과 함께 사용
• 다른 Size는 문의를 통하여 공급 가능

---

Suction Filter (HPLC Solvent Filter)

Cat. No.	Model	사용튜빙(OD)	재질
S01-633-866	300021	Φ3.2 mm (1/8”)	PP
S01-633-870	300022	Φ3.2 mm (1/8”)	PFA / PTFE

---

Blind Plug for Closing without Connector

Cat. No.	Model	Description
S01-633-888	160503	Connector Φ4.76 mm (3/16”)용, PTFE
S01-633-892	160501	Capillary Connector Φ3.2 mm (1/8”)용, PFA
S01-633-896	160506	Connector Φ6.35 mm (1/4”)용, PTFE

---

Ground Neck (29/32) ↔ GL45 연결 아답타

Cat. No.	Model	Description
S01-633-610	307508	29/32 (Ground Neck) → GL45 Screw
S01-633-615	107509	GL45 → 29/32

---

Ground Cables (접지)

Cat. No.	Model	Length	Type
S01-633-821	108009	1.5 M	2 Clamp
S01-633-635	108011	-	1 Clamp + 1 Ring (∅10 mm)
S01-633-640	117982	-	1 Clamp + 1 Ring (∅5 mm)
S01-633-645	107938	-	1 Clamp + 1 Plug
S01-633-650	108275	-	1 Press Stud Connector + 1 Ring (∅5 mm)
S01-633-655	108176	-	1 Clamp + 1 Ground Clip (∅32 mm pipe)
S01-633-665	108092	-	Earthing Plug
S01-633-670	108099	-	Anti-static mat, conductive

추가 정보:

• 108092: 1x press stud connector, 2x 10 mm connector
• 108099: With ground cable (press stud connector). Dimensions: 610 × 1220 mm

---

Optional Exhaust Filter

Cat. No.	Model	Description
S01-633-277	410534	Exhaust Filter S (Short)
S01-633-282	410535	Exhaust Filter Medium (<20 L)
S01-633-286	407986	Exhaust Filter Large (>20 L)

• 대부분의 Solvent Fume을 99%까지 제거
• Special Granulate Based on Active Charcoal
• Exhaust Filter는 각종 증기 및 유해가스의 배출을 차단
• Exhaust Filter를 통한 공기의 용기 내 유입은 없음
• 안전을 위하여 정해진 수명만큼만 사용 권장
• Filter 수명 확인 Indicator 모델은 문의 바람
• 하기 Adapter와 함께 사용 필요

---

Adapter for Exhaust Filter

Cat. No.	Model	Description
S01-1034-951	107621	Extension Piece
S01-1034-955	107622	Rigid - Displacement Adapter
S01-1034-959	107624	90˚ Adapter for Angled Connection
