■ Touch Keypad를 이용하여 쉽게 조작 가능
■ 시소 궤적으로 Rocking
■ Dual Platform Option을 통하여 2가지 악세사리를 동시 사용 가능
■ Speed 조절 가능
■ Protection Class Acc. to DIN EN 60529: IP21
■ IKA
| | | | |
| --- | --- | --- | --- |상세 규격 표
| Cat. No. | Model | Type | Angle |
| --- | --- | --- | --- |

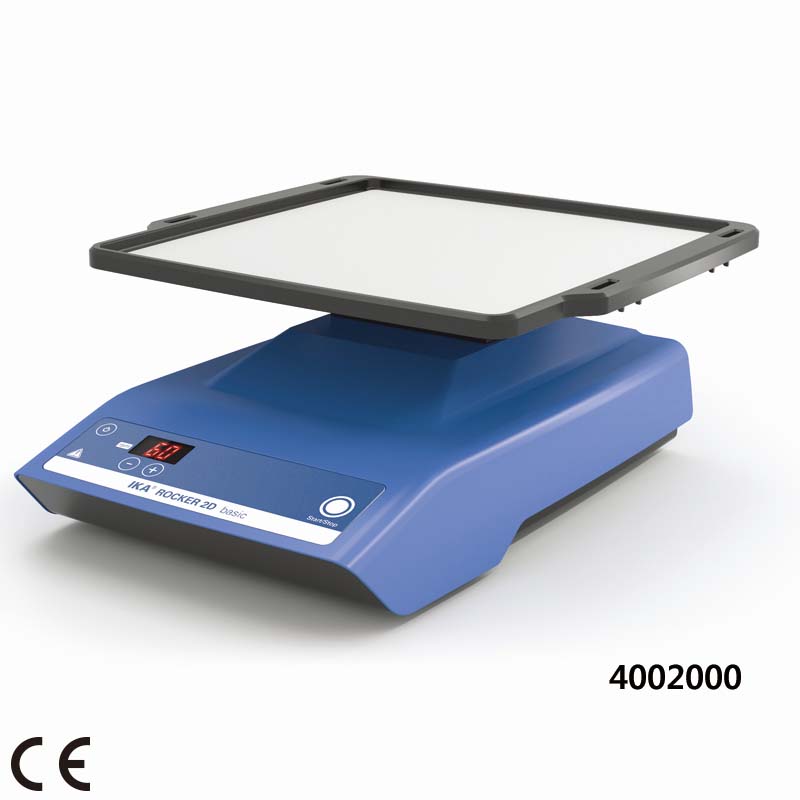

| S04-05-187 | 4002000 | Rocker 2D basic | 8° |
| S04-05-194 | 4003000 | Rocker 2D digital | 0 ~ 15° |
| Cat. No. |
S04-05-187 |
S04-05-194 |
| Type |
Rocker 2D basic |
Rocker 2D digital |
| --- |
--- |
--- |
| Max. Shaking weight |
2 kg |
|
| Motor 입출력 |
16/9 W |
|
| Speed Range |
5 ~ 80 rpm |
|
| Speed Display |
N/A |
가능 |
| Timer |
N/A |
1 sec ~ 99 hr 55 min |
| Dimentions |
w280×d330×150mm |
|
| Weight |
2.2 kg |
|
| 전기규격 |
110 ~ 240 V, 50/60 Hz |
|
| DC Voltage |
24 V |
|
Optional Accessory
| Cat. No. |
Model |
Type |
Application |
| S04-05-770 |
4532000 |
RD1 Mat |
Universal |
| S04-05-777 |
4532100 |
RD2 burled Mat |
Universal |
| S04-05-780 |
4581700 |
A 2 |
Second Level Attachment |
| S04-05-784 |
4532200 |
TB1 Tray |
5 ml(Φ12 mm)×28 |
| S04-05-791 |
4532300 |
TB2 Tray |
15 ml(Φ16 mm)×16 |
| S04-05-798 |
4532400 |
TB3 Tray |
30 ml(Φ25 mm)×14 |
| S04-05-805 |
4532500 |
TB4 Tray |
50 ml(Φ28 mm)×10 |
