■ Hellma
Operation Range |
|
|
Mark |
Material |
Wavelength |
--- |
--- |
--- |
OG |
Optical Glass |
360 ~ 2500 nm |
--- |
--- |
--- |
OS |
Special Optical Glass |
320 ~ 2500 nm |
--- |
--- |
--- |
QS |
Quartz Suprasil |
200 ~ 2500 nm |
--- |
--- |
--- |
UV |
HOQ 310H |
260 ~ 2500 nm |
--- |
--- |
--- |
QX |
Quartz Suprasil ® 300 |
200 ~ 3500 nm |
--- |
--- |
--- |

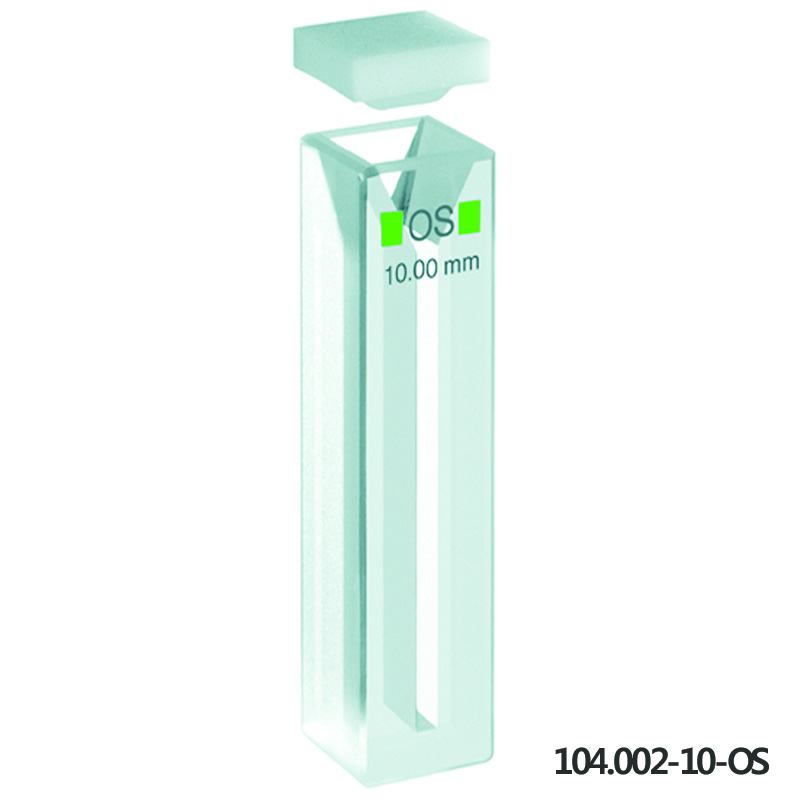

Type : 104.002-OS, Special Optical Glass
Cat. No. |
Model |
Light Path |
용량 |
S18-69-311 |
104.002-10-OS |
10 mm |
700 ul |
--- |
--- |
--- |
--- |
- ● Base Thickness : 3.2 mm
Type : 104.002B-OS, Special Optical Glass
Cat. No. |
Model |
Light Path |
용량 |
S18-69-322 |
104.002B-10-OS |
10 mm |
700 ul |
--- |
--- |
--- |
--- |
- ● Base Thickness : 3.2 mm
Type : 104.002-QS, Quartz
Cat. No. |
Model |
Light Path |
용량 |
S18-69-326 |
104.002-10-QS |
10 mm |
700 ul |
--- |
--- |
--- |
--- |
- ● Base Thickness : 3.2 mm
Type : 104.002B-QS, Quartz
Cat. No. |
Model |
Light Path |
용량 |
S18-69-337 |
104.002B-10-QS |
10 mm |
700 ul |
--- |
--- |
--- |
--- |
- ● Base Thickness : 3.2 mm
Type : 115-QS, Quartz
Cat. No. |
Model |
Light Path |
용량 |
S18-69-340 |
115-10-QS |
10 mm |
400 ul |
--- |
--- |
--- |
--- |
- ● Base Thickness : 3.2 mm
Type : 115B-QS, Quartz
Cat. No. |
Model |
Light Path |
용량 |
S18-69-347 |
115B-10-QS |
10 mm |
400 ul |
--- |
--- |
--- |
--- |
- ● Base Thickness : 3.2 mm
Type : 108.002-QS, Quartz
Cat. No. |
Model |
Light Path |
용량 |
S18-69-388 |
108.002-10-QS |
10 mm |
500 ul |
--- |
--- |
--- |
--- |
- ● Base Thickness : 3.2 mm
Type : 108.002B-QS, Quartz
Cat. No. |
Model |
Light Path |
용량 |
S18-69-390 |
108.002B-10-QS |
10 mm |
500 ul |
--- |
--- |
--- |
--- |
Type : 105-QS, Quartz
Cat. No. |
Model |
Light Path |
용량 |
S18-69-392 |
105-10-QS |
10 mm |
300 ul |
--- |
--- |
--- |
--- |
- ● Height : 25 mm, Base Thickness : 1.5 mm
Type : 105B-QS, Quartz
Cat. No. |
Model |
Light Path |
용량 |
S18-69-394 |
105B-10-QS |
10 mm |
300 ul |
--- |
--- |
--- |
--- |
- ● Height : 25 mm, Base Thickness : 1.5 mm
