■ Multi-position의 고성능 Magnetic Stirrer
■ 같은 조건으로 각각의 Sample을 교반 할 수 있음
■ Digital Display (Speed and Temperature)
■ Reverse Rotation Switch
■ Stainless Steel Surface와 PUR Cover
■ 10단계로 RPM 조절 가능
■ Protection class acc. to DIN EN 60529 (IP42)
■ IKA
| | | | | |
| --- | --- | --- | --- | --- |상세 규격 표
| Cat. No. | Model | Type | Position | Capacity |
| --- | --- | --- | --- | --- |
| S08-05-317 | 3690500 | RO 5 digital | 5-position | 5 L |
| S08-05-324 | 3691000 | RO 10 digital | 10-position | 10 L |

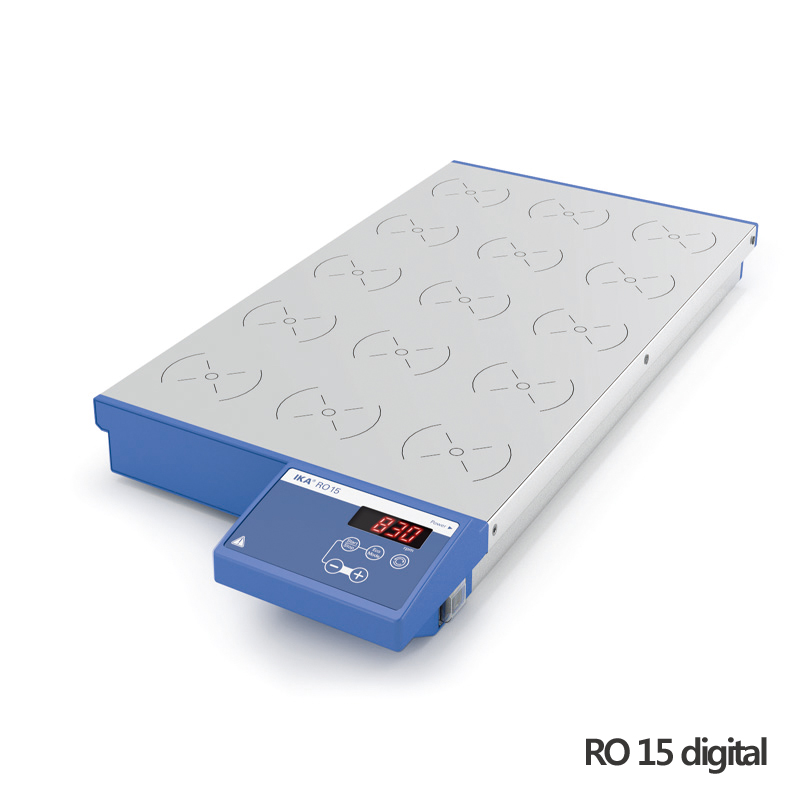

| S08-05-331 | 3692500 | RO 15 digital | 15-position | 15 L |
| | | | | |
| --- | --- | --- | --- | --- |상세 규격 표
| Cat. No. | | S08-05-317 | S08-05-324 | S08-05-331 |
| --- | --- | --- | --- | --- |
| Type | | RO 5 digital | RO 10 digital | RO 15 digital |
| --- | --- | --- | --- | --- |
| Stirring Position | | 5 | 10 | 15 |
| Stirring Capacity (H2O) | | 400 ml | | |
| Position 간격 | | 90 mm | | |
| Speed Range | | 0 ~ 1200 rpm (10 rpm step) | | |
| Speed Display | | LED Display | | |
| Plate Material | | Stainless Steel AISI304 | | |
| Size | Plate | w120×d470 mm | w190×d470 mm | w280×d470 mm |
| 본체 | w120×d570×h60 mm | w190×d570×h60 mm | w280×d570×h60 mm |
| Weight | | approx. 3 kg | approx. 5 kg | approx. 7 kg |
| Power | | 100 ~ 240V, 50/60 Hz | | |
