■ 액상 및 기체상 시료에 모두 사용
■ Plunger 끝에 PTFE Tip이 붙어 있음
■ 테프론 팁이 유리 재질의 몸통과 빈틈없이 밀착하여 Tight한 Sealing 상태를 만들어줌
■ 용도 : Sample 및 Aggressive Fluid의 Dosage
■ Plunger : Stainless Steel with PTFE-seal
■ Glass Barrel : Borosilicate 3.3
■ Precision : <±1% of the Volume
■ ILS
※ 이 제품은 의료용기기가 아닙니다.

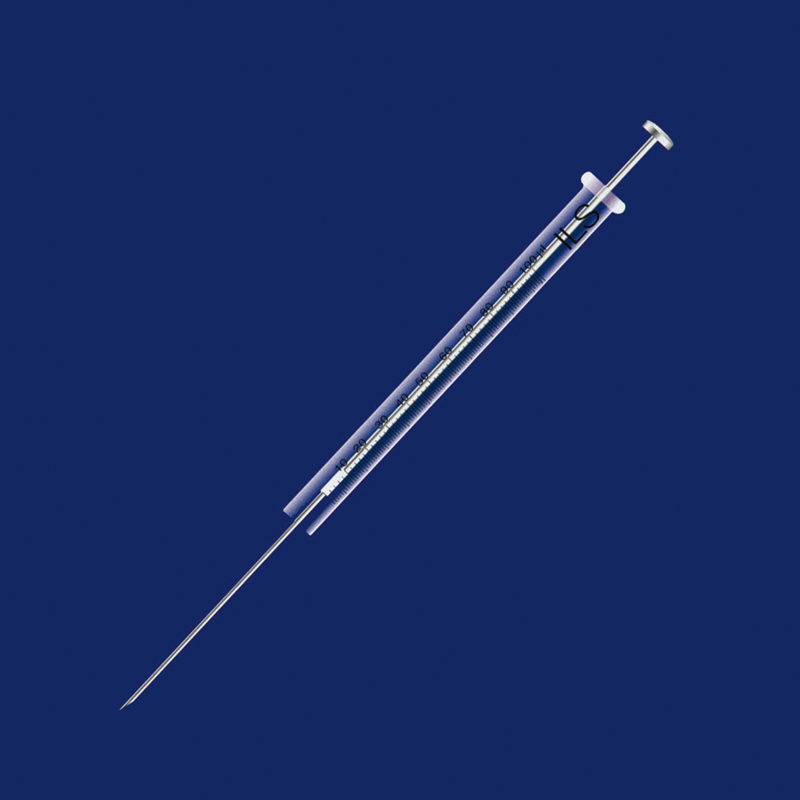

Fixed Needle Type
Cat. No. |
Model |
용량 |
포함된 Needle Tip |
|
|
Gauge |
od |
길이 |
|
|
|
--- |
--- |
--- |
--- |
--- |
--- |
S15-204-004 |
2600301 |
5 ul |
26S |
0.47 mm |
51 mm |
S15-204-010 |
2600401 |
10 ul |
|
|
|
S15-204-016 |
2600501 |
25 ul |
22S
(id 0.2mm) |
0.72 mm |
|
S15-204-022 |
2600601 |
50 ul |
|
|
|
S15-204-028 |
2600701 |
100 ul |
|
|
|
S15-204-034 |
2600801 |
250 ul |
22
(id 0.4mm) |
|
|
S15-204-040 |
2600901 |
500 ul |
|
|
|
S15-204-046 |
2600000 |
1 ml |
|
|
|
S15-204-052 |
2600020 |
2.5 ml |
|
|
|
S15-204-058 |
2600040 |
5.0 ml |
|
|
|
S15-204-064 |
2600060 |
10.0 ml |
|
|
|
- ● GC, HPLC Valve, Autosampler와 같이 사용가능함
● Type A Needle (17˚ Bevel) 기본 포함

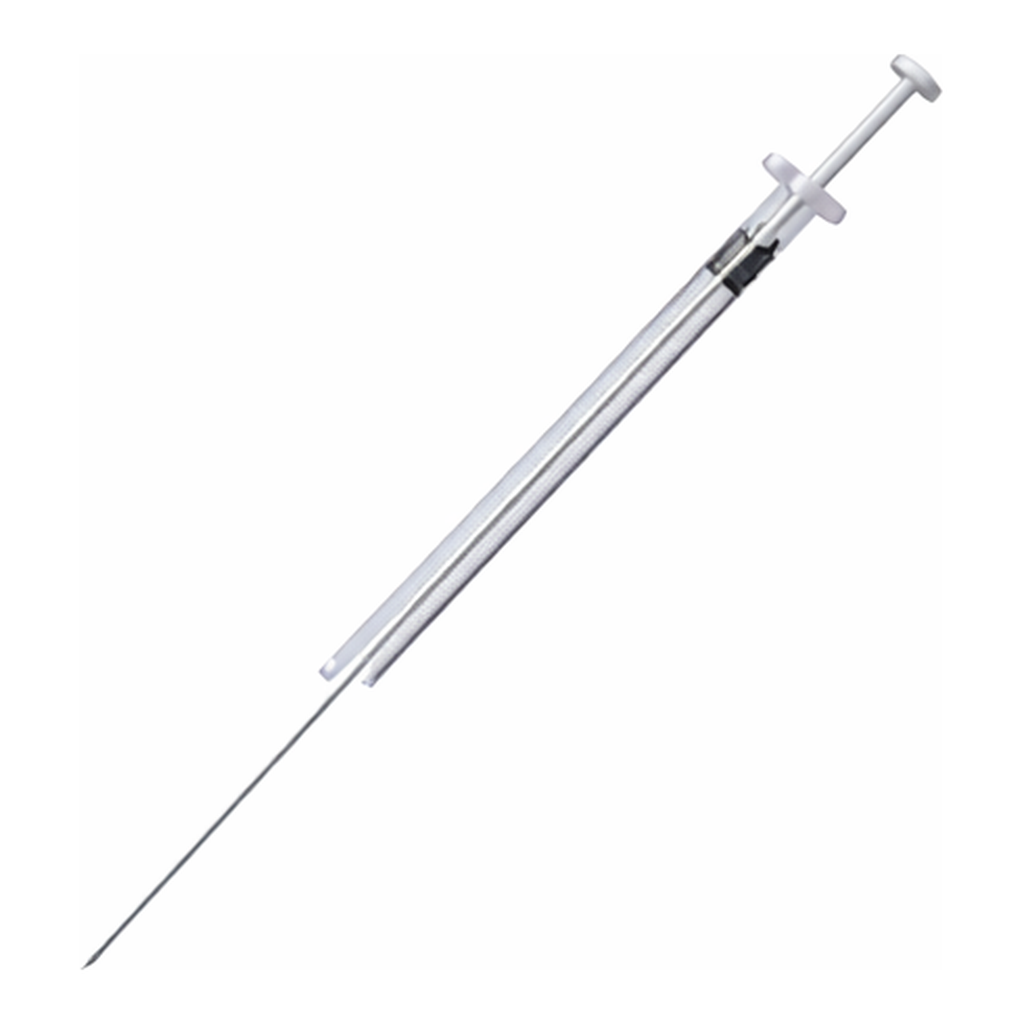

Removable Needle Type ①
Cat. No. |
Model |
용량 |
포함된 Needle Tip |
|
|
Gauge |
od |
길이 |
|
|
|
--- |
--- |
--- |
--- |
--- |
--- |
S15-204-070 |
2600305 |
5 ul |
26S |
0.47 mm |
51 mm |
S15-204-076 |
2600405 |
10 ul |
|
|
|
S15-204-082 |
2600505 |
25 ul |
22S |
0.72 mm |
|
S15-204-088 |
2600605 |
50 ul |
|
|
|
S15-204-094 |
2600705 |
100 ul |
|
|
|
S15-204-100 |
2600805 |
250 ul |
22 |
|
|
S15-204-106 |
2600905 |
500 ul |
|
|
|
S15-204-112 |
2600005 |
1.0 ml |
|
|
|
S15-204-118 |
2600025 |
2.5 ml |
|
|
|
S15-204-124 |
2600045 |
5.0 ml |
|
|
|
S15-204-130 |
2600065 |
10.0 ml |
|
|
|
- ● GC, HPLC Valve, Autosampler와 같이 사용가능함 (Included Type A Needle)
Spare Removable Needle ②
Cat. No. |
Model |
Gauge |
od X 길이 |
사용 Syringe |
S15-204-704 |
2865308 |
26S |
0.47 X 42 mm |
5 ul |
S15-204-707 |
2865408 |
10 ul |
|
|
S15-204-710 |
2832301 |
26S |
0.47 X 51 mm |
5 ul |
S15-204-713 |
2832401 |
10 ul |
|
|
S15-204-716 |
2831013 |
24 |
0.55 X 51 mm |
25 ul~ 100 ul |
S15-204-719 |
2841013 |
250 ul ~ 10 ml |
|
|
S15-204-722 |
2832501 |
22S |
0.72 x 51 mm |
25 ul ~ 100 ul |
S15-204-724 |
2832601 |
250 ul ~ 10 ml |
|
|
TLL PTFE Luer-Lock ③
Cat. No. |
Model |
용량 |
정밀도 |
S15-204-136 |
2600309 |
5 ul |
<±1% of the Volume |
S15-204-142 |
2600409 |
10 ul |
|
S15-204-148 |
2607509 |
25 ul |
|
S15-204-154 |
2607609 |
50 ul |
|
S15-204-160 |
2607709 |
100 ul |
|
S15-204-166 |
2607809 |
250 ul |
|
S15-204-172 |
2607909 |
500 ul |
|
S15-204-178 |
2607011 |
1.0 ml |
|
S15-204-184 |
2607031 |
2.5 ml |
|
S15-204-190 |
2607051 |
5.0 ml |
|
S15-204-196 |
2607071 |
10.0 ml |
|
Metal Luer-lock Needle, Type A ④
Cat. No. |
Model |
Gauge |
od X id (mm) |
S15-204-804 |
2840020 |
33 |
0.20 X 0.11 |
S15-204-808 |
2840025 |
32 |
0.25 X 0.11 |
S15-204-812 |
2840030 |
30 |
0.30 X 0.15 |
S15-204-816 |
2840035 |
29 |
0.35 X 0.15 |
S15-204-820 |
2840040 |
27 |
0.40 X 0.20 |
S15-204-824 |
2840045 |
26 |
0.45 X 0.25 |
S15-204-828 |
2840047 |
26S |
0.47 X 0.13 |
S15-204-832 |
2840050 |
25 |
0.50 X 0.28 |
S15-204-836 |
2840055 |
24 |
0.55 X 0.32 |
S15-204-840 |
2840065 |
23 |
0.64 X 0.35 |
S15-204-844 |
2840070 |
22 |
0.72 X 0.40 |
S15-204-848 |
2840072 |
22S |
0.72 X 0.20 |
S15-204-852 |
2840080 |
21 |
0.80 X 0.50 |
S15-204-856 |
2840090 |
20 |
0.90 X 0.60 |
S15-204-860 |
2840100 |
- |
1.00 X 0.68 |
S15-204-864 |
2840110 |
19 |
1.10 X 0.80 |
S15-204-868 |
2840130 |
18 |
1.30 X 0.90 |
S15-204-872 |
2840150 |
17 |
1.50 X 1.10 |
S15-204-876 |
2840170 |
16 |
1.70 X 1.20 |
S15-204-880 |
2840180 |
15 |
1.80 X 1.40 |
S15-204-884 |
2840200 |
- |
2.00 X 1.26 |
S15-204-888 |
2840240 |
13 |
2.40 X 1.90 |
S15-204-892 |
2840280 |
12 |
2.80 X 2.20 |
S15-204-896 |
2840302 |
- |
3.00 X 2.06 |
S15-204-900 |
2840304 |
11 |
3.00 X 2.40 |
S15-204-904 |
2840340 |
10 |
3.40 X 2.70 |
- ● 길이 : 51 mm
● 재질 : AISI SS304 (Needle), Nickel Plated Brass Luer
