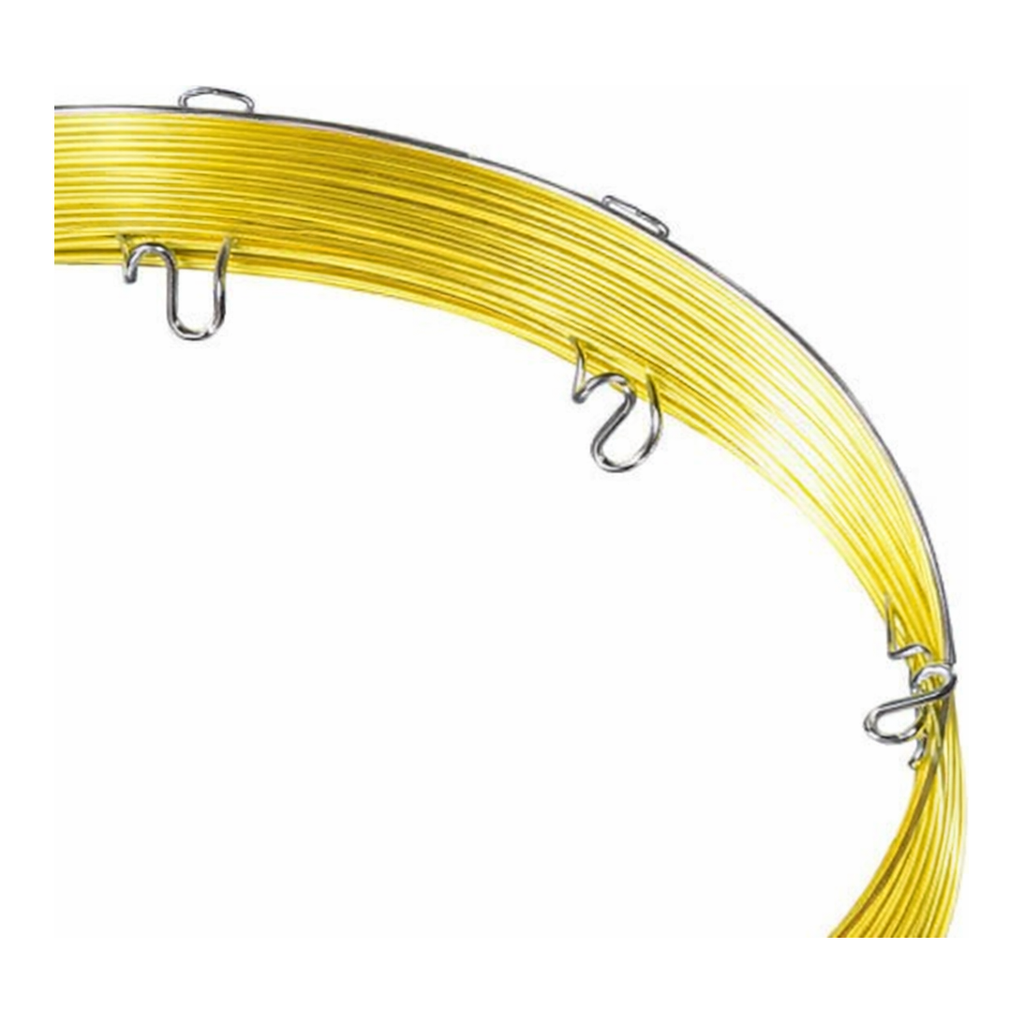

Restek Rt-Q-BOND PLOT Column, 30m, 0.53mm ID, 20um

Overview

Features & Benefits

• Nonpolar PLOT column incorporating 100% divinylbenzene
• Excellent for analysis of C1 to C3 hydrocarbons, isomers, and alkanes up to C10
• High retention for CO₂ simplifies gas analysis; CO₂ and methane separated from O₂/N₂/CO
  (Note: O₂/N₂/CO not separated at ambient temperature)
• Suitable for analysis of oxygenated compounds and solvents
• Maximum temperature: 300 °C

A GC column phase cross-reference is also available.
Model your PLOT column using our Pro EZ_GC Chromatogram Modeler.

Description

Porous polymers are unique, highly retentive stationary phases with a wide application range that can elute both polar and nonpolar compounds. They are highly hydrophobic, so water has no impact on retention times and elutes as a well-shaped chromatographic peak.

The Q-BOND is Restek’s most nonpolar and widely used porous polymer column. Functional groups can be added to increase polarity (e.g., QS-, S-, and U-BOND). The manufacturing process ensures strong adhesion of porous polymer particles to the tubing walls, minimizing particle generation and providing reproducible performance in selectivity and flow from column to column.

Note: Recoiling PLOT columns is not recommended, as it may cause particles to dislodge from the tubing walls.

Specifications
