Daihan Science DAIHAN 380℃ Standard Analog & Digital Hotplate “HP-A” & “HP-D”, Ceramic-Coated

상품 한눈에 보기

380℃까지 가열 가능한 세라믹 코팅 핫플레이트로, 아날로그 및 디지털 제어 모델 제공. 고온 균일성과 CE 인증 보유. 디지털 모델은 Jog-Shuttle 시스템과 LCD 디스플레이, ±0.3℃ 정밀 제어 기능 지원. 실험 안전을 위한 오버히트 보호 및 타이머 기능 포함.

카탈로그번호: DH-WHP02022-EA
브랜드: Daihan Science
카테고리: Daihan Science
판매단위: ea

#Daihan Science

카탈로그

1개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

Daihan Science DH-WHP02022-EA Hotplate Digital Feedback Control, 260X260 HP-30D-Unit Only, 120V, 1/Ea ea DH.WHP02022판매 단위 ea ·

재고 확인 필요재고 확인 필요

612,500원VAT 포함 673,750원

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Daihan Science · Daihan Science DAIHAN 380℃ Standard Analog & Digital Hotplate “HP-A” & “HP-D”, Ceramic-Coated

DAIHAN® 380°C Standard Analog & Digital Hotplate “HP-A” & “HP-D”, Ceramic-Coated Plate

With High Temp Uniformity, 180×180·or·260×260mm Plate, CE Certified, with Certificate & Traceability
아날로그 & 디지털 정밀 가열판, 수산화 도료코팅형 & 정제, 시리얼 공통형 핫플레이트

Supplied by DAIHAN Korea

CE Certified
PL (Product Liability) Insurance with Certificate & Traceability : Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System

Features

Excellent for sampling drying and general lab heating applications
Superior temperature uniformity : less than 10% on the plate at ambient temperature

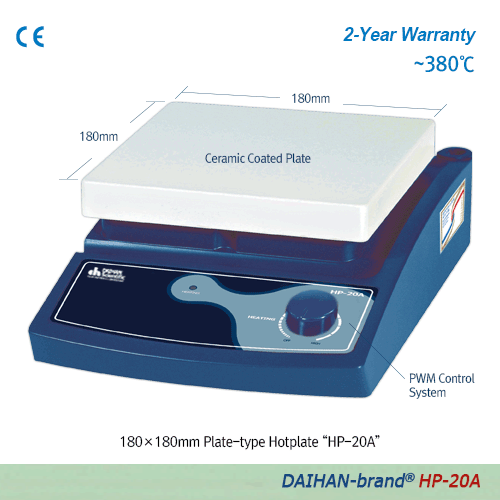

I. Analog Control Hotplate “HP-A”

Superior linearity for temperature control by specially designed control circuitry (PWM control)

II. Digital Control Hotplate “HP-D”

Patented Jog-Shuttle Control System

Digital feedback control by high-performance microprocessor
LCD display with back-light, 0.1°C-display, 0.5°C-control
Temperature accuracy : ±0.3°C at set temp
Safety circuit : over temp protection
Timer : 99hr 59min (continuous on), error status & timer-end alarm
Locking mode for experimental safety (Jog Shuttle input disable)
User’s self-compensation (±20.0°C between real & indicated temp)

III. Digital Control Hotplate Package-set

Ⅲ-A. “HP-20D” Set

Includes:

Hotplate “HP-20D”
“SS500” PT100 External / Direct Contact Temp. Probe
“RD200” Stainless-steel Support Rod (Ø12×L450mm)
“CL220” Holder + Clamp + Clip for External Temp. Probe

Ⅲ-B. “HP-30D” Set

Includes:

Hotplate “HP-30D”
“SS500” PT100 External / Direct Contact Temp. Probe
“RD100” Stainless-steel Support Rod (Ø12.7×L390mm)
“CL220” Holder + Clamp + Clip for External Temp. Probe

Specifications & Ordering Information

Spec.	A. 180×180mm Plate	B. 260×260mm Plate
Type	(I-A) Analog “HP-20A” / (II-A) Digital “HP-20D”	(I-B) Analog “HP-30A” / (II-B) Digital “HP-30D”
Plate Size (mm)	180×180	260×260
Body Material	Powder Coated Aluminum	Powder Coated Steel
Plate Material	Ceramic Coated Aluminum (Chemical / Acid Resistance, Easy to Clean)
Temp. Range & Uniformity	Max. 380°C, High Uniformity (<10% difference)
Heating Power	600 W	1.2 kW
Permissible Temp. & RH	RT +5~50°C, 85% RH
Dimension & Weight	206×307×99mm, 2.8kg	286×387×99mm, 3.3kg
Packing Size & Gross Weight	280×320×200mm, 5kg	430×320×200mm, 5kg
Electrical Requirements	1 Phase, AC 120V 60Hz / AC 230V 50/60Hz

I. Analog Unit Only

	(I-A) “HP-20A”	(I-B) “HP-30A”
Cat. No. 230V	DH.WHP03120	DH.WHP03121
Cat. No. 120V	DH.WHP02120	DH.WHP02121
Price (₩)

II. Digital Unit Only

	(II-A) “HP-20D”	(II-B) “HP-30D”
Cat. No. 230V	DH.WHP03020	DH.WHP03022
Cat. No. 120V	DH.WHP02020	DH.WHP02022
Price (₩)

III. Digital Package-set

	(III-A) “HP-20D” Set	(III-B) “HP-30D” Set
Cat. No. 230V	DH.WHP03021	DH.WHP03023
Cat. No. 120V	DH.WHP02021	DH.WHP02023
Price (₩)

Other specifications are available upon customer’s request.

Optional Accessories

Cat. No.	Description	Ea. Price (₩)
DH.WHP503060	Temp. Probe “SS500”, “PT100”, Ø4×L250mm
DH.WHP503061	Teflon Coated Temp. Probe “SS510”, Ø4×L250mm
DH.WHP503011	Stand Rod “RD100”, Ø12.7×L390 for “HP-30A / 30D”
DH.WHP503036	Stand Rod “RD200”, Ø12×L450 for “HP-20A / 20D”
DH.WHP503012	Holder / Clamp / Clip “CL220” for Temp. Probe
