Applied Biosystems™

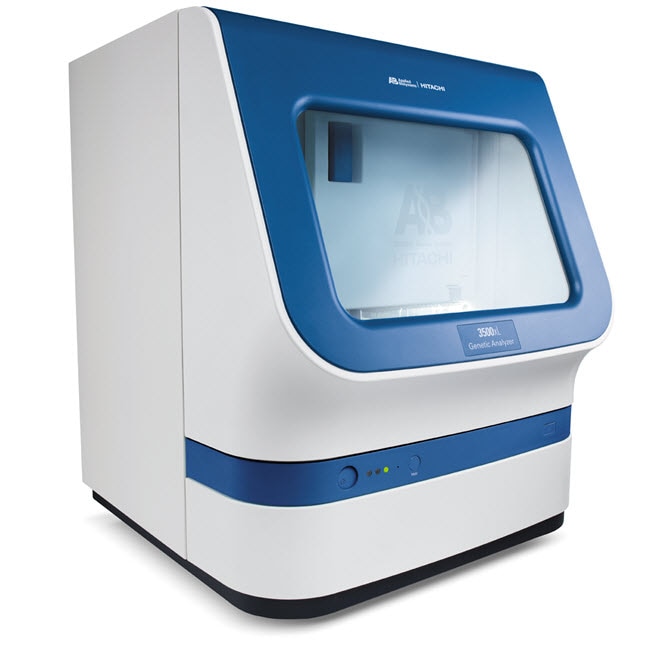

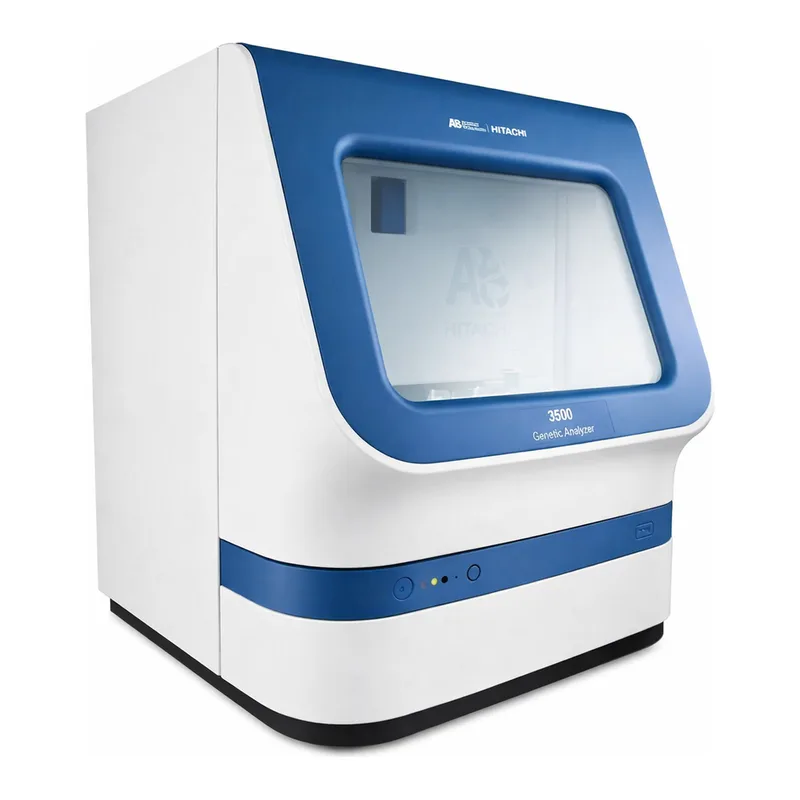

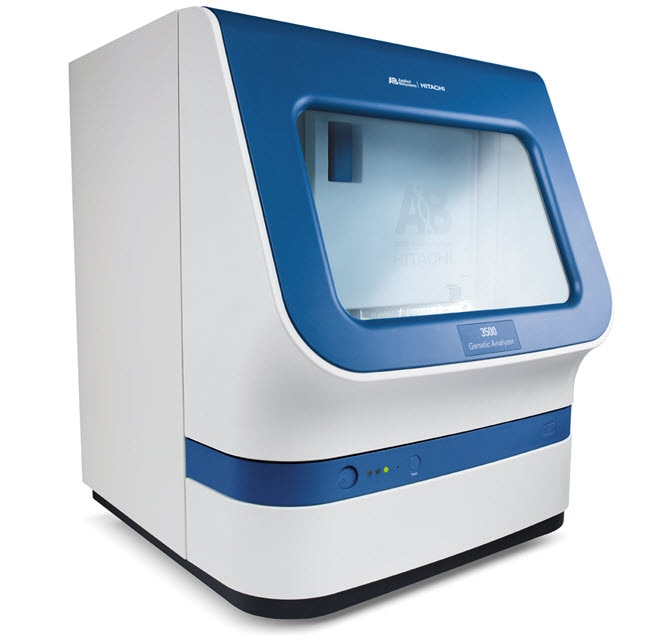

3500 Genetic Analyzer

The 3500 Genetic Analyzer is an 8-capillary sequencing instrument specifically designed to support the demanding performance needs of validated and자세히 알아보기

The 3500 Genetic Analyzer is an 8-capillary sequencing instrument specifically designed to support the demanding performance needs of validated and process controlled environments, while retaining the unsurpassed application versatility that life science researchers expect.

This package includes an 8-capillary instrument, 3500 Series Data Collection Software, and a Dell™ Workstation and monitor. The 3500 Series Data Collection Software supports sequencing and fragment analysis, and integrates seamlessly with several downstream software packages (not included) for secondary analysis of genetic data.

Features of the 3500 Genetic Analyzer include:
• An 8-capillary system that can be easily upgraded to a 24-capillary system when you`re ready
• Single-line, 505 nm, solid-state, long-life laser that uses a standard power supply and requires no heat-removal ducting
• Powerful, integrated data collection and primary analysis software that provides real-time assessment of data quality
• Radio frequency identification (RFID) technology that tracks key consumables data and records administrative information
• Advanced multiplexing capabilities for DNA fragment analysis with up to six unique dyes
• Unrivaled application flexibility—one array and one polymer are used for most applications
• Simple setup, operation and maintenance

Offering accurate reliable data quality
The 3500 Series genetic analyzers are designed to significantly improve signal uniformity from instrument-to-instrument, run-to-run, and capillary-to-capillary. With a combination of intelligent hardware, powerful algorithm and reagent combinations, these methods enable major reduction in the range of signal peak heights obtained across multiple 3500 series instruments (see figure).

Improved sizing precision
The thermal sub-system design gives enhanced performance in demanding fragment applications, enabling improved sizing precision versus previous generations of capillary electrophoresis platforms.

Ready-to-use consumables with RFID tags
The 3500 Series offers ready-to-use consumables with pre-packaged polymer pouches, cathode and anode buffer containers, and easy-to-install capillary arrays. Each of these consumables is integrated with RFID tags that enable viewing, tracking, and reporting of critical information about reagents and consumables including usage, lot number, part number, expiry date, and on-instrument lifetime within the 3500 Series Data Collection Software.

Easy-to-use data collection software
The 3500 Series Data Collection Software breaks ground in user-friendly navigation with an intuitive dashboard design, highly visible buttons for common operations, easy-to-read graphical displays to monitor the state of consumables, and a handy maintenance scheduling calendar functionality. Functionality includes simplified plate set-up and built-in primary analysis with quality control, so you can make decisions about the quality of data as it is produced on the instrument without the need to transfer output files into secondary analysis software packages.

사양

Software TypeData Collection Software

암페어15 A

캐필러리 길이36 cm, 50 cm

전기 요구사항15 A

외부 컴퓨터Hard Drive: 2x 500GB SATA 3.0 Gb/s and 8 MB Data Burst Cache, Memory: 16 GB (2x 8GB) 1600 MHz DDR3 Non-ECC. 4th Gen Intel Core I7 Processor- 3.1 GHz Turbo Processor, Operating System: Windows 7 SP1

형식96-well Plate, 8-tube Strip

용도(장비)3500 Genetic Analyzer

운영 체제Win 7 (Service Pack 1)

폴리머POP-4™, POP-6™, POP-7™

수량1 system

배송 조건Room Temperature

소프트웨어 호환성Sequencing Analysis Software, Variant Reporter™ Software, GeneMapper™ Software

처리량Up to 368 samples per day (using run module ShortReadSeqPOP7)

워런티1 Year Limited Warranty on Parts and Labor, Service Installation and Application Training Included

무게82 kg (approximately)

Unit SizeEach
