The Sleeve Sampler is ideal when you need a large volume sample. The sampler consists of a Sample Collecting Chamber and a handle. The effective operating depth of the sampler can be increased by using handle extension rods. Sample Collecting Chambers are available in three standard volumes - 100, 150 and 200ml.
The heavy duty handle and extension rods have been designed to be extremely strong and robust to allow samples to be taken from depths up to 6m (after about 6m the sampler gets heavy).
**EASY TO USE

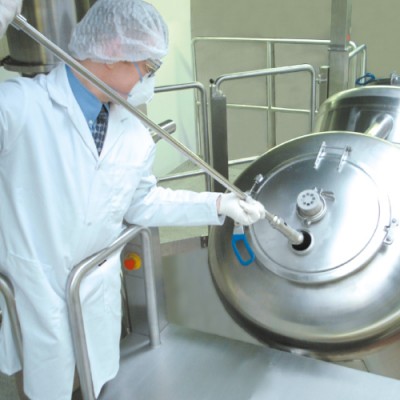

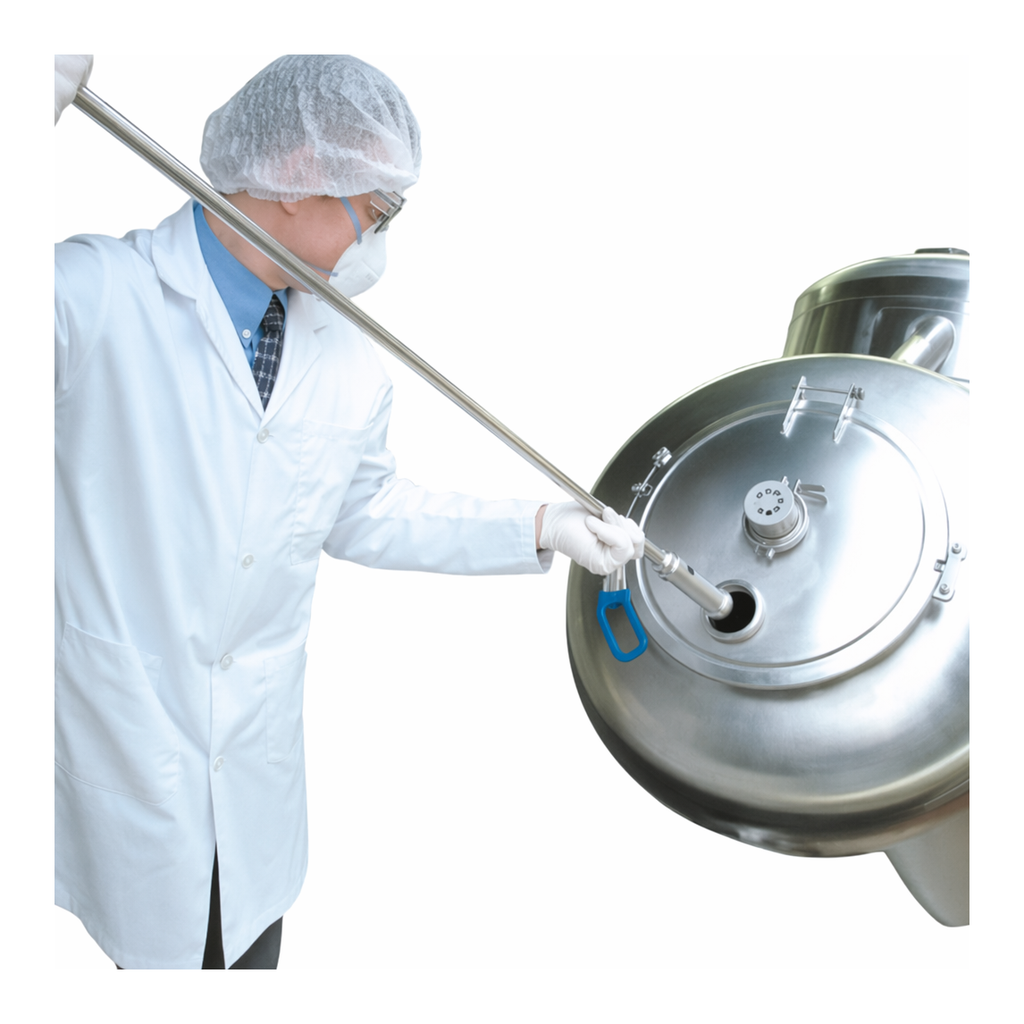

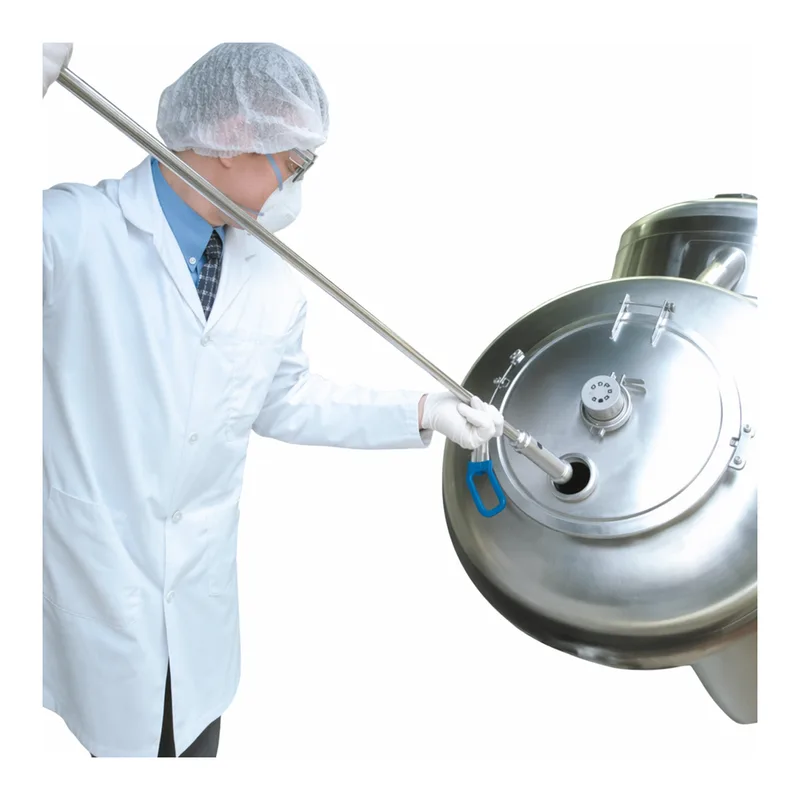

**Push the sleeve sampler into the powder or granules. At the required depth pull up the handle slightly. This will mean the sleeve moves down and a sample is taken. Remove the sampler.
- *QUALITY - *Made from 316L stainless steel which gives excellent chemical resistance.
- FLEXIBILITY - Range of sample chambers with a range of handles and extension rods can all be interchanged
Available Options
| Part No. |
Description |
Length mm |
Volume ml |
Material |
| 1035A-1000 |
Sleeve Sampler Handle 1000mm |
1000 |
- |
316L ss |
| 1035A-1500 |
Sleeve Sampler Handle 1500mm |
1500 |
- |
316L ss |
| 1035E-1000 |
Handle Extension 1000mm |
1000 |
- |
316L ss |
| 1035T-100 |
Sample Chamber 100ml |
190 |
100 |
316L ss |
| 1035T-150 |
Sample Chamber 150ml |
260 |
150 |
316L ss |
| 1035T-200 |
Sample Chamber 200ml |
310 |
200 |
316L ss |
