Sampling Systems Inserts for U-D Master
다른 상품 둘러보기
Multi-level, Unit Dose Powder Sampler
The U-D Master is designed to take multilevel unit dose samples from free flowing powders. The samples are collected in removable inserts. U-D Master is highly versatile because the sample volume can be quickly and easily varied by changing the inserts. The U-D Master is available in several convenient lengths and with three different sampling styles. a. SINGLE Style (one sample is taken at each window) b. DOUBLE Style (two samples are taken at each window) c. TRIPLE Style (three samples are taken at each window)
- Multi-level, Unit Dose Sampler
- 316 stainless steel
- Change the inserts to change the sample volume
- Sampling Inserts available 0.1 to 4.0ml
A. SINGLE Style U-D Master
- One sample per sampling point
B. DOUBLE Style U-D Master
- Two samples per sampling point
C. TRIPLE Style U-D Master
- Three samples per sampling point
Available Options

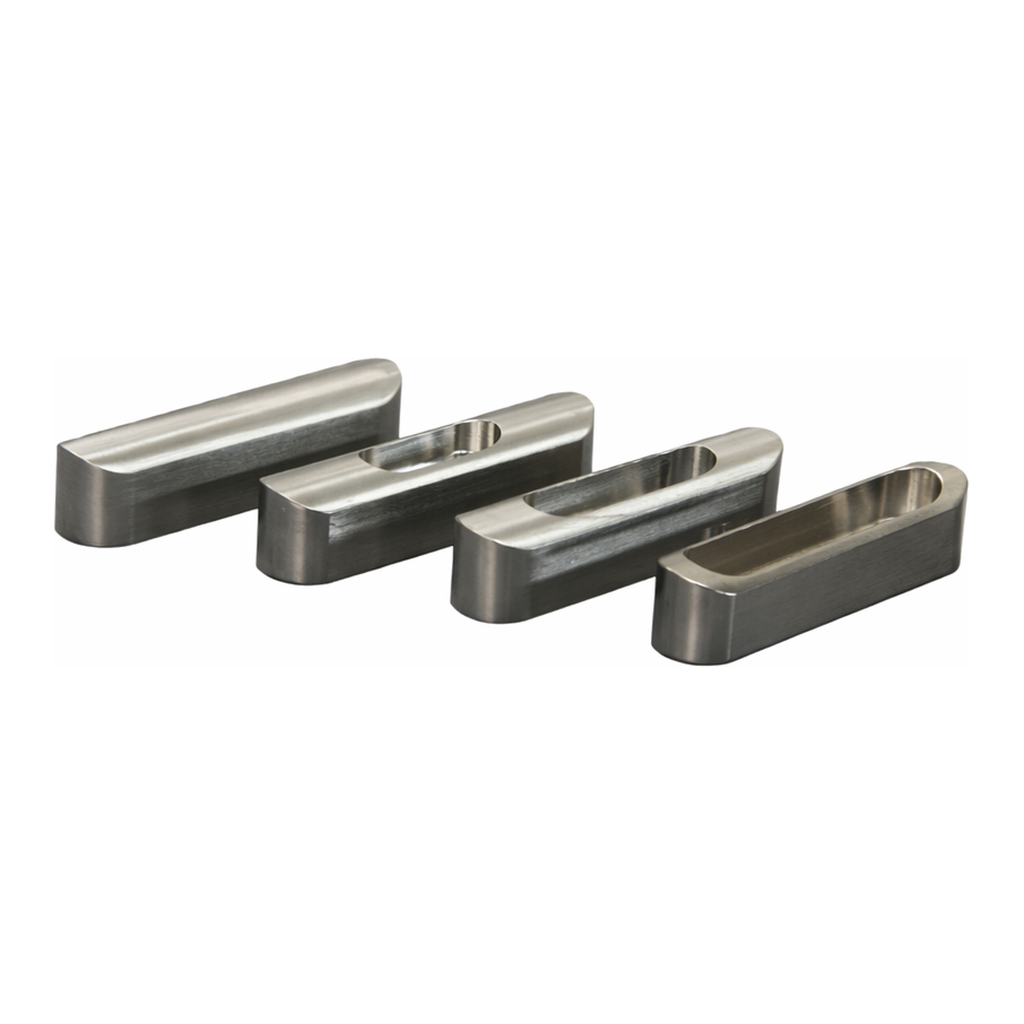

| Part No. | Description | Volume ml | No. of Sampling Points | No. Of Inserts Required | Material |
|---|---|---|---|---|---|
| 1230T-00 | Insert for U-D Master - blank | 0.0 | - | - | 316L ss |
| 1230T-01 | Insert for U-D Master - 0.1ml | 0.1 | - | - | 316L ss |
| 1230T-02 | Insert for U-D Master - 0.2ml | 0.2 | - | - | 316L ss |
| 1230T-03 | Insert for U-D Master - 0.3ml | 0.3 | - | - | 316L ss |
| 1230T-04 | Insert for U-D Master - 0.4ml | 0.4 | - | - | 316L ss |
| 1230T-05 | Insert for U-D Master - 0.5ml | 0.5 | - | - | 316L ss |
| 1230T-06 | Insert for U-D Master - 0.6ml | 0.6 | - | - | 316L ss |
| 1230T-07 | Insert for U-D Master - 0.7ml | 0.7 | - | - | 316L ss |
| 1230T-08 | Insert for U-D Master - 0.8ml | 0.8 | - | - | 316L ss |
| 1230T-09 | Insert for U-D Master - 0.9ml | 0.9 | - | - | 316L ss |
| 1230T-10 | Insert for U-D Master - 1.0ml | - | - | 316L ss | |
| 1230T-11 | Insert for U-D Master - 1.1ml | 1.1 | - | - | 316L ss |
| 1230T-12 | Insert for U-D Master - 1.2ml | 1.2 | - | - | 316L ss |
| 1230T-13 | Insert for U-D Master - 1.3ml | 1.3 | - | - | 316L ss |
| 1230T-14 | Insert for U-D Master - 1.4ml | 1.4 | - | - | 316L ss |
| 1230T-15 | Insert for U-D Master - 1.5ml | 1.5 | - | - | 316L ss |
| 1230T-16 | Insert for U-D Master - 1.6ml | 1.6 | - | - | 316L ss |
| 1230T-17 | Insert for U-D Master - 1.7ml | 1.7 | - | - | 316L ss |
| 1230T-18 | Insert for U-D Master - 1.8ml | 1.8 | - | - | 316L ss |
| 1230T-19 | Insert for U-D Master - 1.9ml | 1.9 | - | - | 316L ss |
| 1230T-20 | Insert for U-D Master - 2.0ml | - | - | 316L ss | |
| 1230T-21 | Insert for U-D Master - 2.1ml | 2.1 | - | - | 316L ss |
| 1230T-22 | Insert for U-D Master - 2.2ml | 2.2 | - | - | 316L ss |
| 1230T-23 | Insert for U-D Master - 2.3ml | 2.3 | - | - | 316L ss |
| 1230T-24 | Insert for U-D Master - 2.4ml | 2.4 | - | - | 316L ss |
| 1230T-25 | Insert for U-D Master - 2.5ml | 2.5 | - | - | 316L ss |
| 1230T-26 | Insert for U-D Master - 2.6ml | 2.6 | - | - | 316L ss |
| 1230T-27 | Insert for U-D Master - 2.7ml | 2.7 | - | - | 316L ss |
| 1230T-28 | Insert for U-D Master - 2.8ml | 2.8 | - | - | 316L ss |
| 1230T-29 | Insert for U-D Master - 2.9ml | 2.9 | - | - | 316L ss |
| 1230T-30 | Insert for U-D Master - 3.0ml | - | - | 316L ss | |
| 1230T-31 | Insert for U-D Master - 3.1ml | 3.1 | - | - | 316L ss |
| 1230T-32 | Insert for U-D Master - 3.2ml | 3.2 | - | - | 316L ss |
| 1230T-33 | Insert for U-D Master - 3.3ml | 3.3 | - | - | 316L ss |
| 1230T-34 | Insert for U-D Master - 3.4ml | 3.4 | - | - | 316L ss |
| 1230T-35 | Insert for U-D Master - 3.5ml | 3.5 | - | - | 316L ss |
| 1230T-36 | Insert for U-D Master - 3.6ml | 3.6 | - | - | 316L ss |
| 1230T-37 | Insert for U-D Master - 3.7ml | 3.7 | - | - | 316L ss |
| 1230T-38 | Insert for U-D Master - 3.8ml | 3.8 | - | - | 316L ss |
| 1230T-39 | Insert for U-D Master - 3.9ml | 3.9 | - | - | 316L ss |
| 1230T-40 | Insert for U-D Master - 4.0ml | - | - | 316L ss | |
| 1230A-300 | U-D Master - single style - 300mm | 5 | 5 | 316L ss | |
| 1230A-600 | U-D Master - single style - 600mm | 10 | 10 | 316L ss | |
| 1230A-900 | U-D Master - single style - 900mm | 6 | 6 | 316L ss | |
| 1230A-1200 | U-D Master - single style - 1200mm | 8 | 8 | 316L ss | |
| 1230A-1500 | U-D Master - single style - 1500mm | 10 | 10 | 316L ss | |
| 1230A-1800 | U-D Master - single style - 1800mm | 12 | 12 | 316L ss | |
| 1230B-600 | U-D Master - double style - 600mm | 5 | 10 | 316L ss | |
| 1230B-900 | U-D Master - double style - 900mm | 7 | 14 | 316L ss | |
| 1230B-1200 | U-D Master - double style - 1200mm | 8 | 16 | 316L ss | |
| 1230B-1500 | U-D Master - double style - 1500mm | 10 | 20 | 316L ss | |
| 1230B-1800 | U-D Master - double style - 1800mm | 12 | 24 | 316L ss | |
| 1230C-900 | U-D Master - triple style - 900mm | 5 | 15 | 316L ss | |
| 1230C-1200 | U-D Master - triple style - 1200mm | 7 | 21 | 316L ss | |
| 1230C-1500 | U-D Master - triple style - 1500mm | 8 | 24 | 316L ss | |
| 1230C-1800 | U-D Master - triple style - 1800mm | 10 | 30 | 316L ss |
