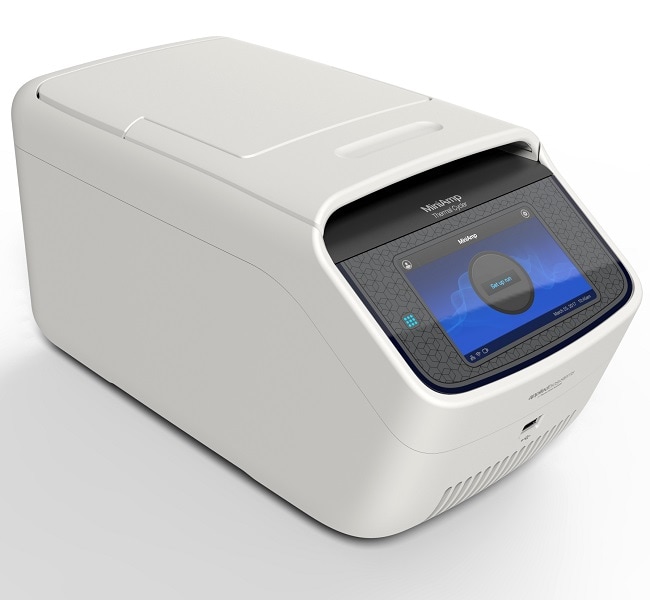

Applied Biosystems™

MiniAmp™ Thermal Cycler

The Applied Biosystems MiniAmp Thermal Cycler is a compact, accurate, and economical thermal cycler designed to fit your lab`s basic자세히 알아보기

The Applied Biosystems MiniAmp Thermal Cycler is a compact, accurate, and economical thermal cycler designed to fit your lab`s basic thermal cycling needs. The MiniAmp Thermal Cycler has a 5-inch color touchscreen, making it easy to control, and it can also be accessed through Thermo Fisher Connect, giving you the freedom to design and securely upload your methods from any mobile device or desktop computer.

Key features and benefits:
• Small footprint—With dimensions of 19 cm wide and 39 cm deep, you can fit the MiniAmp Thermal Cycler almost anywhere. And because its airflow is front to back, you can set multiple units side by side to save valuable bench space.
• 5-inch intuitive color touchscreen—for easy programming and training of new users
• WiFi-enabled and accessible by Thermo Fisher Connect—giving you the freedom to design and securely upload your methods from any mobile device or desktop computer

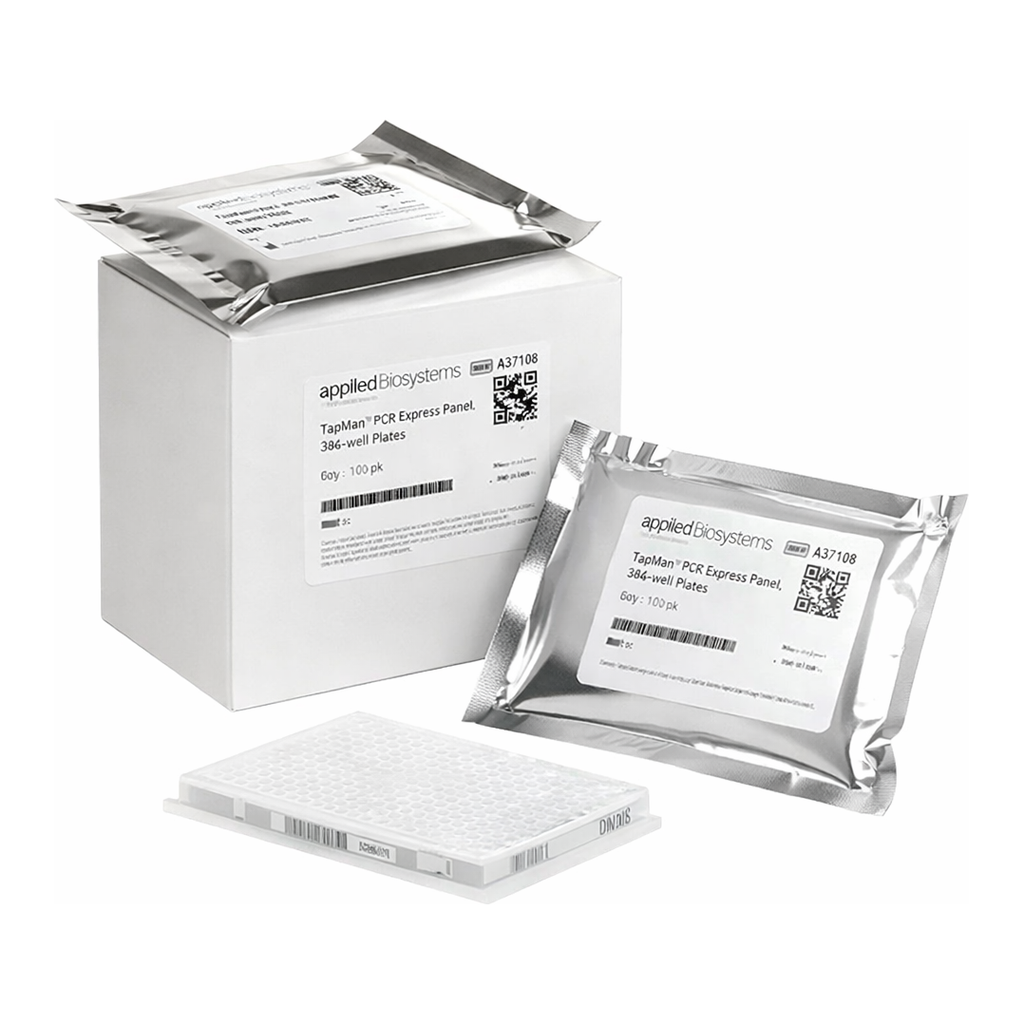

Applied Biosystems PCR plastics
Applied Biosystems PCR plastics have been designed and validated to work with our thermal cyclers for more than 25 years. Options for every format and throughput need are available to ensure consistent, precise results for any experiment. To find the best match please visit our Plastics Selection Guide.

사양

열 정확도±0.25°C (35°C to 99.9°C)

고처리량 호환성High-throughput Compatible

용도(장비)Applied Biosystems GeneAmp plastics consumables

열 균일성<0.5°C (20 sec. after reaching 95°C)

반응 속도Fast, Standard

치수15.4 x 7.5 x 7.9 in. (39 x 19 x 20 cm)

용량96-well, 0.2 mL

전압100/240 V

디스플레이 유형5 in. Color TFT LCD Touchscreen

제품 유형Thermal Cycler

워런티Limited Warranty

열 범위0°C to 100°C

사용자 인터페이스USB, Wi-Fi, Ethernet

와트500 W

최대 램프 속도3°C/sec. (Block), 2.2°C/sec. (Sample)

프로그램 수>1000

수량1 instrument

무게13 lb. (5.9 kg)

블럭 구성96-well

Unit SizeEach
