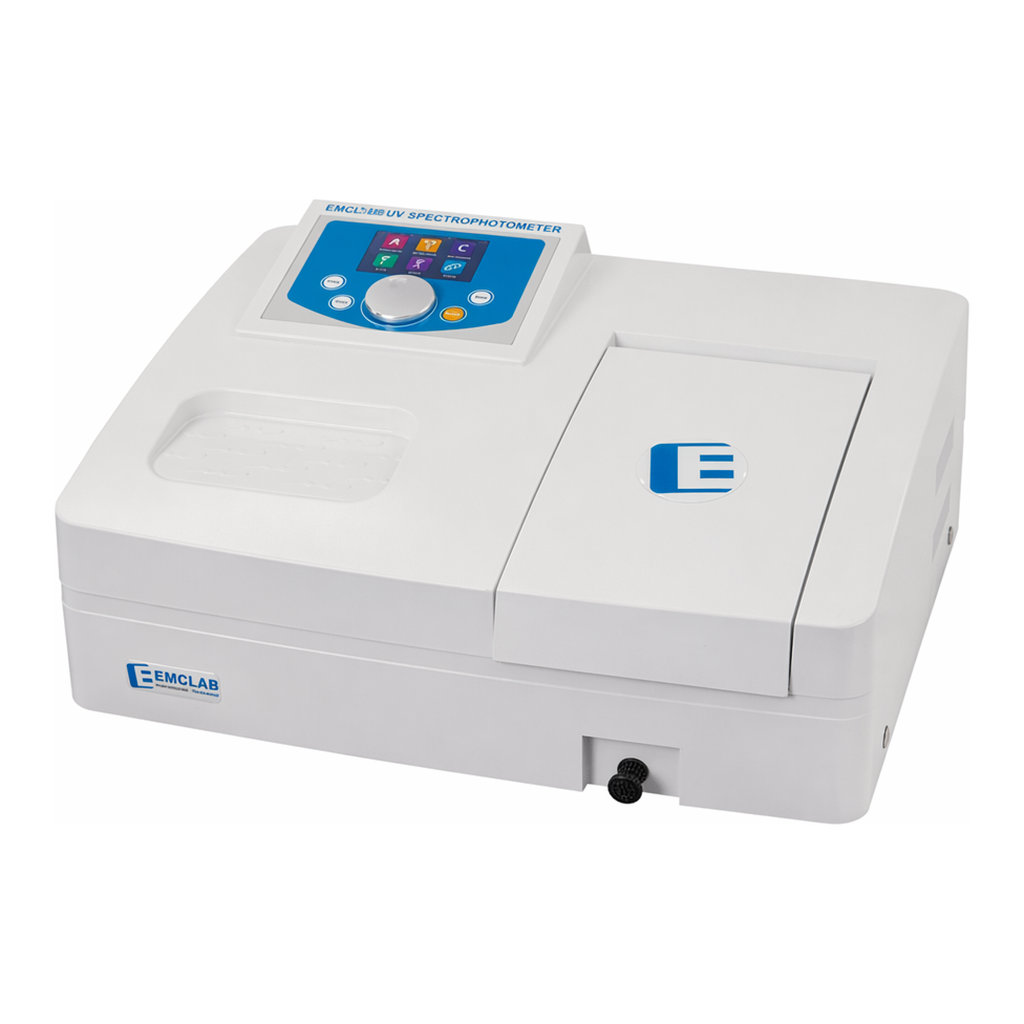

Daihan Science EMCLAB UV/VIS Spectrophotometer “EMC-11S-UV”, with Basic/Professional Software
상품 한눈에 보기
200~1000nm 범위의 자외선/가시광 분광광도계로, 싱글빔 방식과 4nm 분광 대역폭을 지원합니다. 터치 컬러 TFT 화면, 자동 파장 설정 및 셀 홀더 교체 기능을 갖추었으며, Basic 또는 Professional 소프트웨어 선택 가능. 독일 EMCLAB Works 교정 인증 포함.
브랜드: Daihan Science
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...
EMCLAB® UV/VIS Spectrophotometer “EMC-11S-UV”
with Basic/Professional Software Sets, 200~1000 nm
With Standard 4-Cell Holder, EMCLAB Works Certificate, Tungsten & Deuterium Lamp,
자외선/가시광 분광광도계
Supplied with EMCLAB Works Calibration Certificate
Tested with DAkkS (German Body of Accreditation) Certified UV/VIS Reference Materials NIST Traceable
Single Beam and 4nm Spectral Bandwidth
Tungsten Lamp & Deuterium Lamp can be turned on/off Individually
Included 4×Glass & 2×Quartz Glass Cells (10×10 mm)
주요 기능
- Color TFT Screen
- Self-check System
- Fast Choose Wavelength
- Auto Setting Wavelength
- Auto Zero and Blank
- Easy Measurement for Different Cell Holders
- Display up to 50 groups of Data, 3 groups per Screen
- Display Standard Curve and Equation
- Data restoration after sudden Power Cut
- Tungsten & Deuterium lamp individually controllable
- Including EMCLAB Works Calibration Certificate
- IQ/OQ/PQ Documentation available
EMC-11S-UV with EASY UV Basic PC Software (Cat. No. EM.11SUV)
- Functions: Quantitative, Kinetics, Photometry Measurement (Absorbance and Transmittance)
EMC-11S-UV with EASY UV PC Software (Cat. No. EM.11SUVPC)
- Functions: Quantitative, Kinetics, Spectrum Scan, Multi-wavelength, DNA/Protein Analysis, Energy Scan
Spec.
| Spec. | Model | EMC-11S-UV |
|---|---|---|
| Wavelength Range | 200~1000nm | |
| Spectral Bandwidth | 4nm | |
| Optical System | Single Beam, grating 1200 lines/mm | |
| Wavelength Accuracy | ±2nm | |
| Wavelength Repeatability | 1nm | |
| Photometric Accuracy | ≤ ±0.5 %T or ±0.005A@1A | |
| Photometric Range | 0~200 %T, -0.3~3A, 0~1999 Conc. | |
| Photometric Repeatability | ±0.2 %T | |
| Photometric Mode | T, A, C, F | |
| Stray Light | ≤ 0.3 %T | |
| Stability | ±0.004A@500nm | |
| Baseline Flatness | ±0.001A (200~1000nm) | |
| Noise | 0.003A@500nm | |
| Detector | Silicone Photodiode | |
| Display | Color TFT Screen | |
| Central Beam Height | 15mm | |
| Standard Cell Holder | 4-position Cell Holder 10×10mm | |
| Light Source | Tungsten & Deuterium Lamp | |
| Output | USB port & Parallel port for Printer | |
| Power Requirement | AC 85~265V, 50/60Hz | |
| Dimensions | L440×W350×H200 mm | |
| Weight | 9kg |
Ordering Information
| Cat. No. | Description | Ea. Price, ₩ |
|---|---|---|
| EM.11SUV | UV/VIS Spectrophotometer EMC-11S-UV, 200~1000nm w/Basic Software | |
| EM.11SUVPC | UV/VIS Spectrophotometer EMC-11S-UV, 200~1000nm w/EASY UV Software |
Complete Set Includes:
Spectrophotometer Main Unit, Power Cable, Dust Cover, 4×Glass & 2×Quartz Cells (10×10 mm), CD(User’s Manual), USB Cable, Microfiber Cloth, Calibration Certificate.
Optional & Spare Accessories
| Cat. No. | Description |
|---|---|
| EM.00020 | Option: 4-position cell holder for cells, 10×10 mm, without slider |
| EM.00021 | up to 50 mm, without slider |
| EM.00019 | up to 100 mm, without slider |
| EM.00023 | 1-position cell holder for cells, 10×10 mm |
| EM.00045 | — |
| EM.00099 | 1-position holder for solid samples, up to 25 mm thickness |
| EM.00101 | 2-position holder for solid samples, up to 2~5 mm thickness |
| EM.00124 | EASY UV PC Software with Dongle Analysis |
| EM.00011 | Spare: Halogen(Tungsten) Lamp 6V 10W for EMC-11S |
| EM.00130 | UV Deuterium Lamp for EMC-11S-UV |
Images and Captions

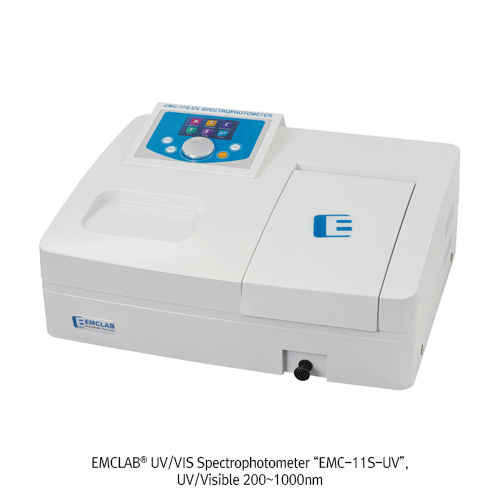

- UV/Visible 200~1000nm
- 4-Cell Holder (Included)
- 1-position Cell Holder
- 2-position Solid Cell Holder
- Spare Halogen Lamp
