Vacuum Manifold, AIRFREE 진공 메니폴드, 5-port

Vacuum Manifold, AIRFREE 진공 메니폴드 (5-Port)

■ Vacuum Bank

• ID: 40 mm
• Ball Joint: 34/25
• 전체 사이즈: W1016 × H610 mm

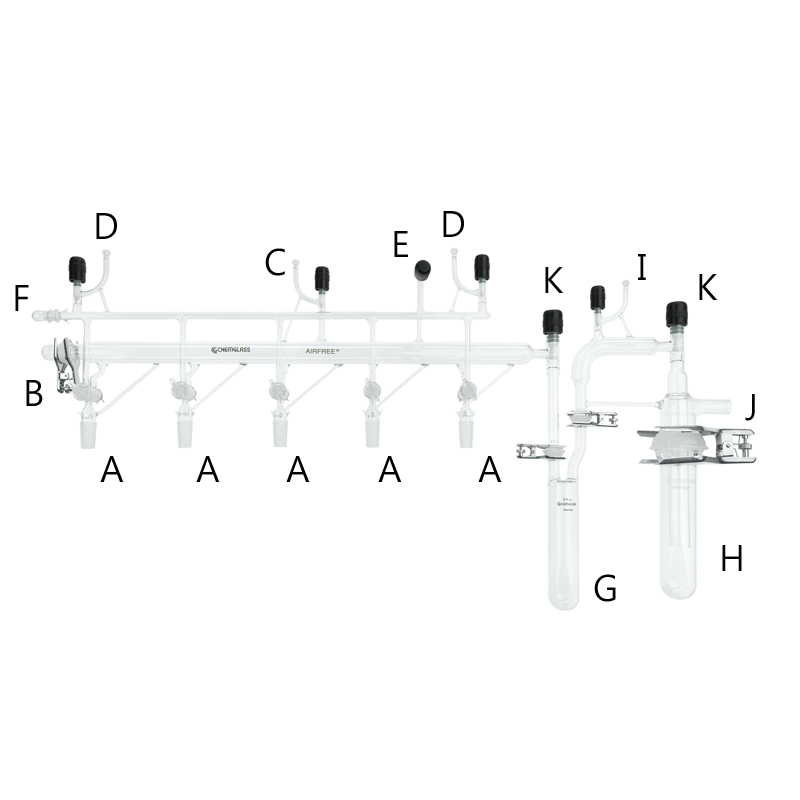

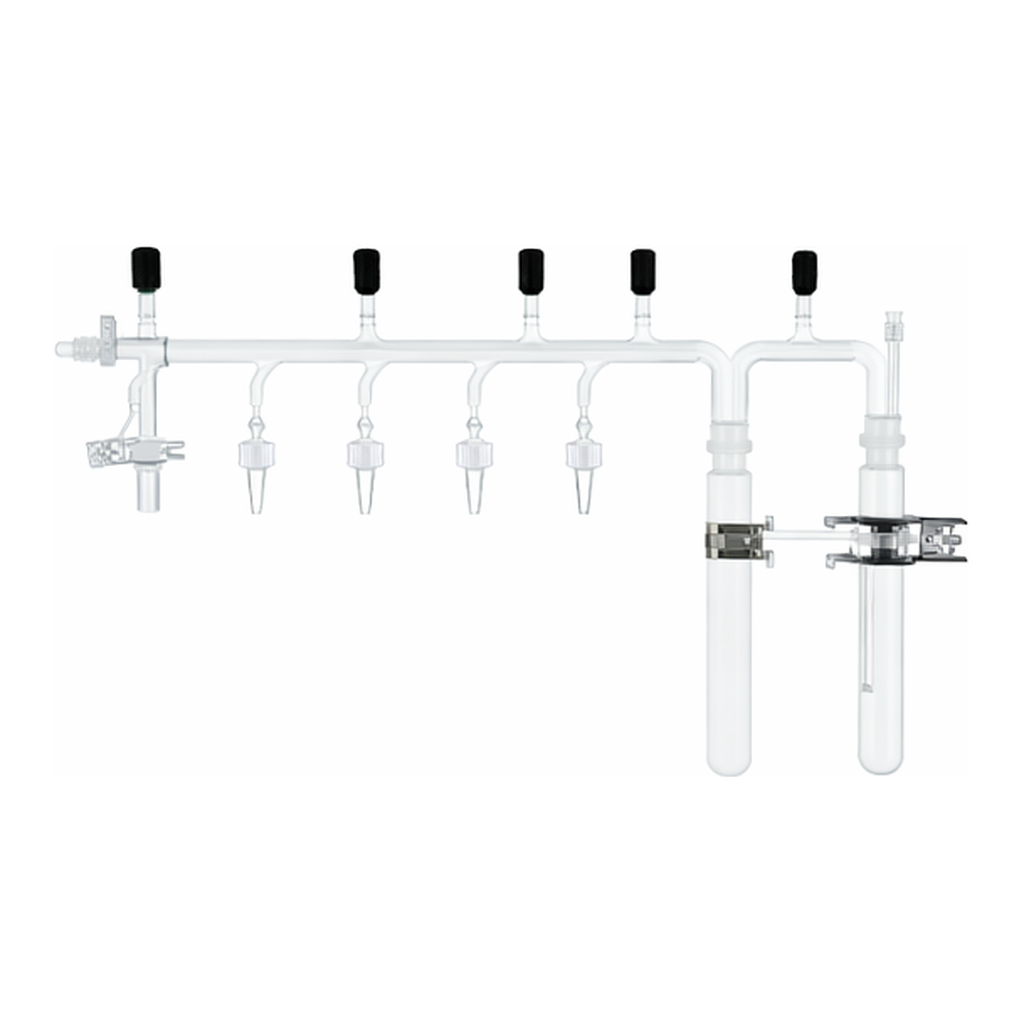

■ 구성

• A: 4 mm Solid Double Oblique High Vacuum Stopcock (Pressure Retaining Device, 24/40 Inner Joint)
• B: 35/25 Socket Joint Cap (Vacuum Bank 마개)
• C: Valve Gauging Port (12/5 Ball Joint)
• D: Inert Gas Line (Gas Source 연결부)
• E: Valve, Cross Over Line (Evacuation of the entire system)
• F: 14/20 Outer Joint Cap (Gas Line 마개)
• G: Pre-trap (OD 51 × H250 mm, 상/하부 연결부 28/15 Ball Joint)
• H: Main Trap Body (OD 58 × H235 mm, 상/하부 연결부 75/50 Ball Joint)
• I: Valved Gauging Port (Pre-trap & Main Trap 연결부 12/5 Ball Joint)
• J: Pump 연결부 (OD 1” Tube)
• K: Isolation Valve (0 ~ 12 mm)

■ Complete Set 구성

• 5 Port Vacuum Manifold (1 ea)
• Pre-trap (1 ea)
• Main Trap (1 ea)
• #28 Pinch Clamp (2 ea)
• #35 & #75 Pinch Clamp (각 1 ea)
• 1/2” Spring (2 ea)
• 14/20 Outer Stopper (1 ea)
• 34/25 Socket Stopper (1 ea)

■ 제조사

• Chemglass

■ 제품 사양
