Thermo Scientific™

HyPerforma™ Smartainer™ 3D BPC, 500L; 5 Ports

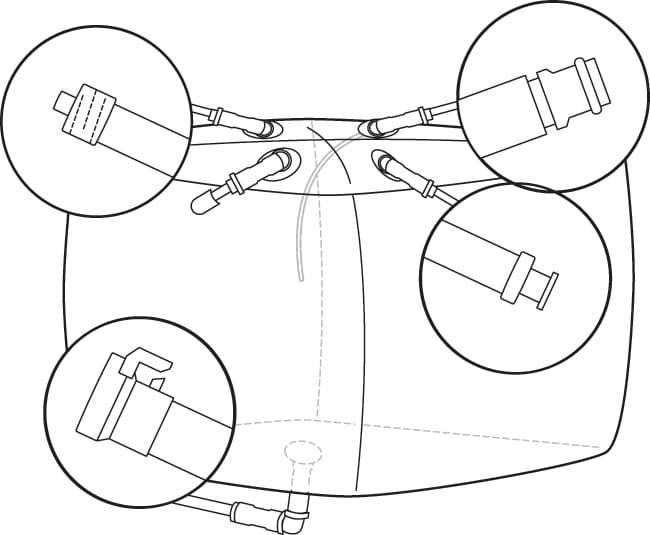

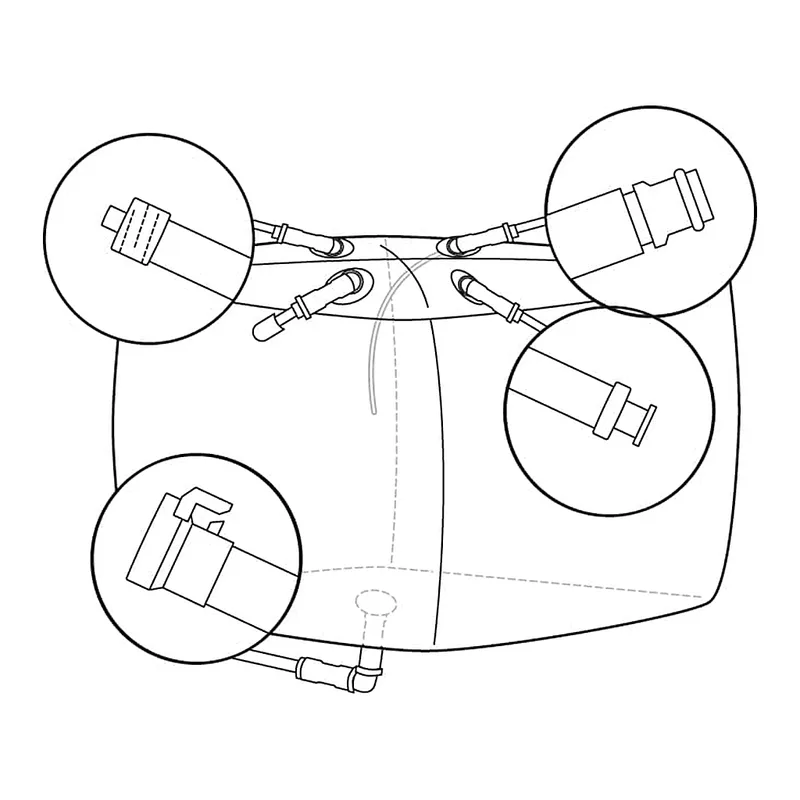

The 500L Thermo Scientific™ large-volume BPC, 3D system is composed of CX5-14 single web, multi-layer plastic film and includes 5 top ports (MPC insert, male luer lock, female luer lock, plugged), 1 bottom drain (MPC body).

사양

용량(미터법)500 L

필름 설명CX5-14

포트 세부 정보Bottom Port: 1 x 0.38 in., Top Ports: 1 x 0.38 in. 2 x 0.25 in.

용도(장비)SV50160.02

외부 포장Packages placed in strong cardboard cartons with product and lot identification

보호용 내부 포장Packed and sealed in two independent outer layers in the Class 10,000/ISO Class 7 area

수량500 L

멸균 방법Gamma Irradiated

튜빙 라인 1Line 1. MPC insert, polycarbonate, Tubing: TPE, length: 121.9 cm (48 in.) dip tube ID x OD: 9.5 x 15.9 mm (0.38 in. x 0.63 in.) with dip tube length: 30.5 cm (12 in.) Top Port

튜빙 라인 2Line 2. Insert luer lock connection, polypropylene Tubing: TPE, length: 121.9 cm (48 in.) ID x OD: 6.4 x 9.5 mm (0.25 in. x 0.38 in.) Top Port

튜빙 라인 3Line 3. Body luer lock connection, polypropylene Tubing: TPE, length: 121.9 cm (48 in.) ID x OD: 6.4 x 9.5 mm (0.25 in. x 0.38 in.) Top Port

튜빙 라인 5Line 5. MPC body, polycarbonate Tubing: silicone, length: 121.9 cm (48 in.) ID x OD: 9.5 x 15.9 mm (0.38 in. x 0.63 in.) Bottom port

튜빙 라인 4Line 4. Plugged, no tubing

제품라인HyPerforma™, Smartainer™

Unit Size500 L
