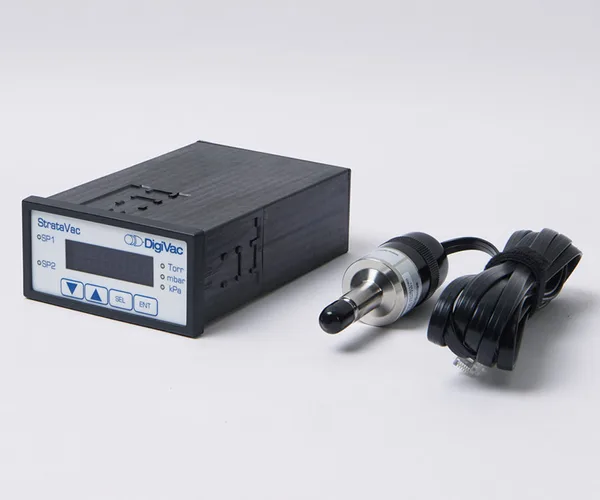

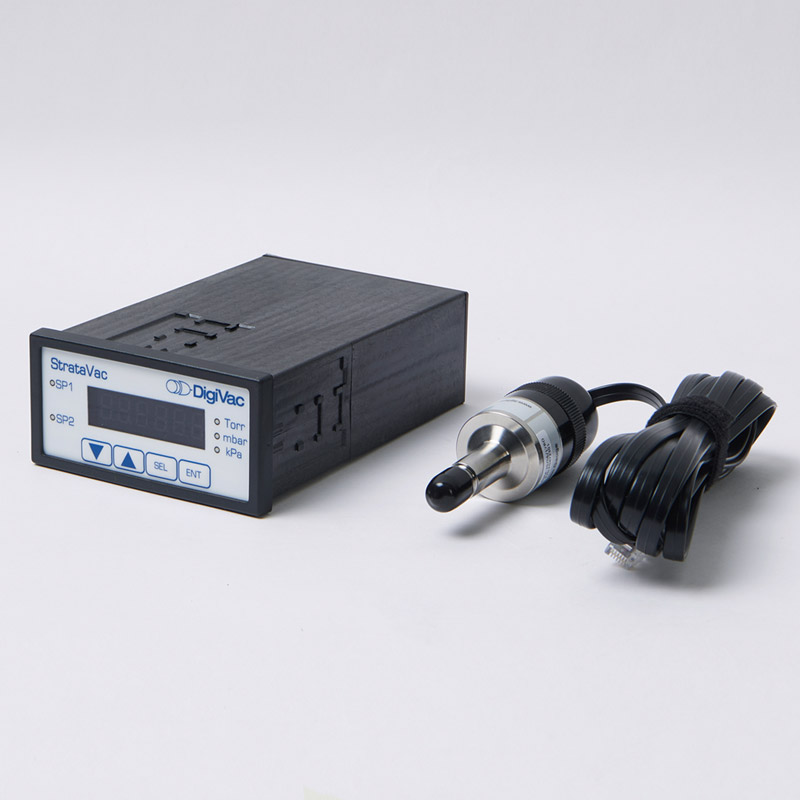

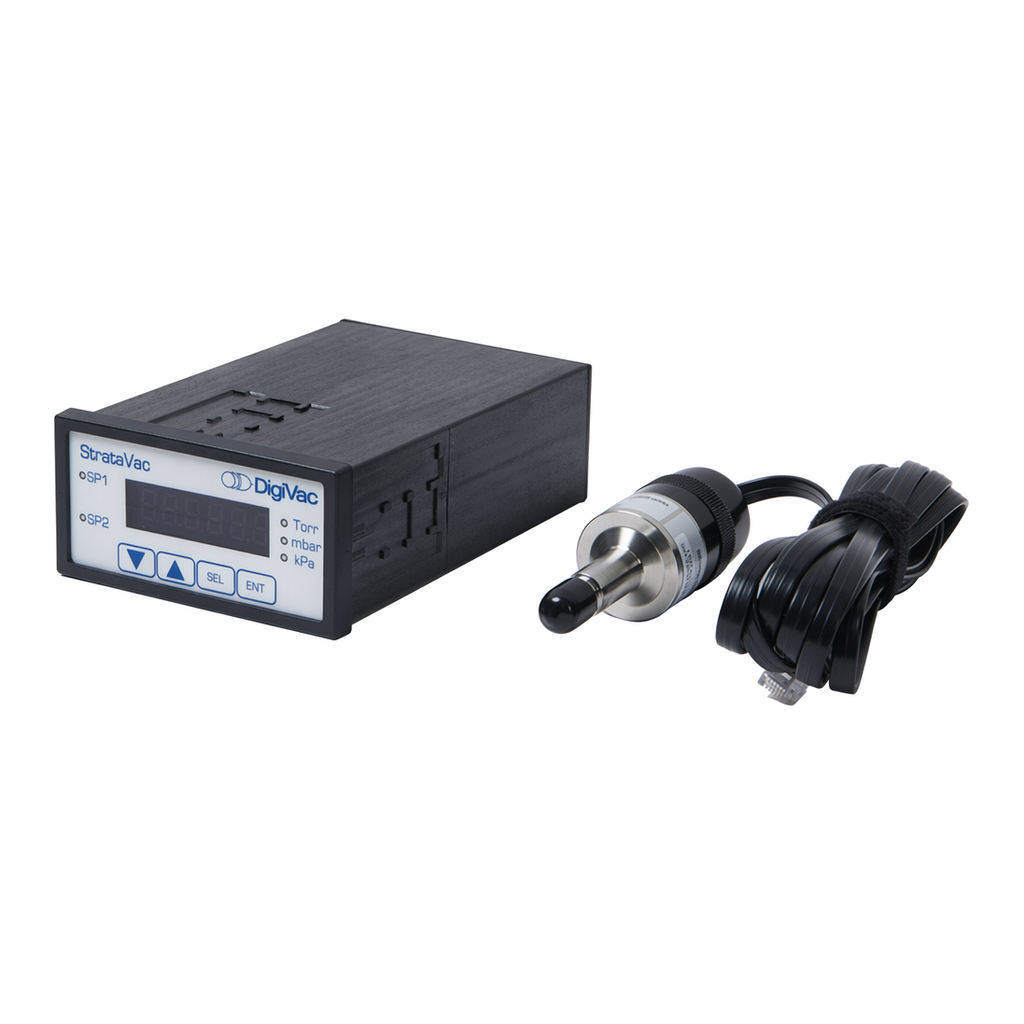

■ 구성 : Vacuum Gauge, Vacuum Sensor (Varian 531, 1/8` Male MPT), Cable, AC Adapter
■ 확장 보드를 이용하여 최대 3개 까지의 Vacuum Sensor를 연결하여 동시에 측정 가능
■ 진공 조절을 위해서는 Vacuumlevel Control Card (V08-653-050) 와 Valve (V08-653-053) 가 필요 (Option)
■ Torr, mbar, kPa 중 표시 단위 설정 가능
■ Size : w89×d136×h43 mm
■ Power : 100~240 VAC, 50/60Hz
■ Pre-tested under Actual Vacuum against a NIST-Standard
■ DigiVac
|
|
|
| Cat. No. |
Model |
Vacuum Range |
| --- |
--- |
--- |
| V08-653-013 |
201-1TC |
0.00001 ~ 760 Torr |
Accuracy
| 1 ~ 99 milliTorr |
±2 microns or 20% of Reading |
| 100 ~ 2000 milliTorr |
±10% of Reading |
| --- |
--- |
| 2 ~ 6 Torr |
±25% of Reading |
| 6 ~ 250 Torr |
Continuous and Monotonic |
| 250 ~ 800 Torr |
±25% of Reading |
- Optional Accessory for Vacuum Control
| | | |
| --- | --- | --- |Optional Accessory for Vacuum Control
| Cat. No. | Model | Description |
| --- | --- | --- |
| V08-653-050 | VLC-201 | Vacuum level Control Card |
| V08-653-053 | VAL-VLC-Soft | Upstream vacuum control에 사용되는 Valve |
| V08-132-248 | SEN-531 | Thermocouple, Vacuumonly1/8inch Male NPT |
