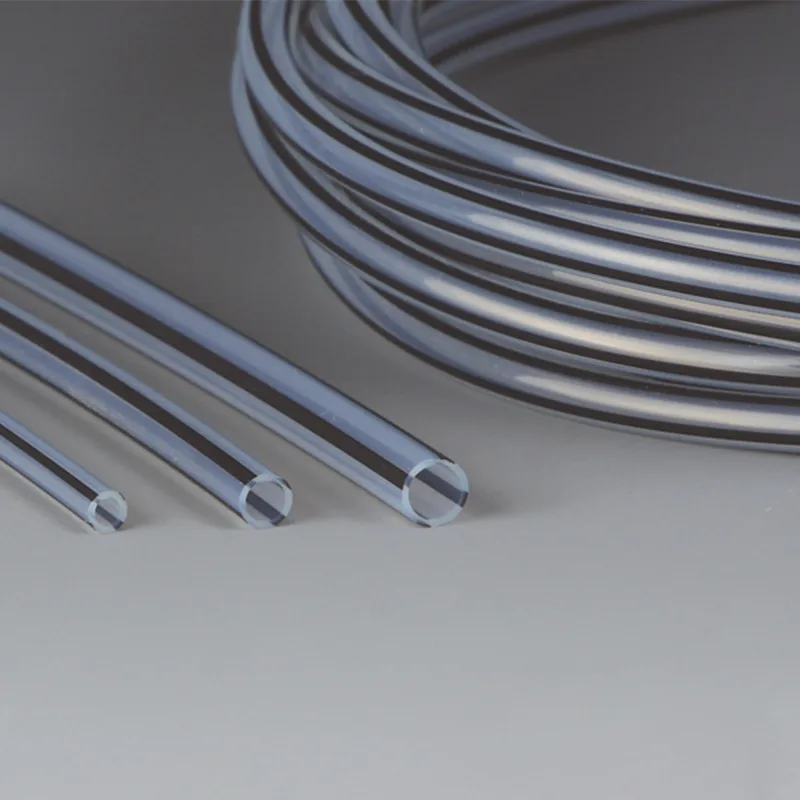

■ 재질 : PFA EX , -200 ℃ to 260℃ 내화학 및 내열
■ 표면에 검은색 외부 전도성 줄무늬가 있는 투명한 튜브
■ 시료는 단지 PFA 재질에만 접촉 되어짐
■ 인화성이 높은 용액 및 알코올, 가스 운반용으로 적합
■ Resistance less than 1000 kOhm
■ Smooth, Non-porous interior surface, No corrosion unlike metal lines or metal meshes
■ Bending Radius: Minimum bending radius in mm at a room temperature of 23°C
■ Burst Pressure: 23°C의 실온에서 계산된 bar 값으로, 최대 작동 압력을 Burst Pressure의 25%로 제한 권장, 온도가 더 높으면 이 값에 감소 계수를 곱해야 함
■ It is the users responsibility to check if the used tubing fulfills the respective requirements
■ BOLA
Cat. No. |
Model |
Tubing id × od |
Burst Pressure |
길이 |
T23-460-251 |
S1855-30 |
2 x 3 mm |
57 bar |
10 m |
T23-460-255 |
S1855-40 |
4 x 6 mm |
|
|
T23-460-259 |
S1855-50 |
6 x 8 mm |
41 bar |
|
T23-460-263 |
S1855-60 |
8 x 10 mm |
32 bar |
|
T23-460-267 |
S1855-64 |
10 x 12 mm |
27 bar |
|
