■ Two Dimention Operation의 체진동기 ■ 수직과 원형운동이 동시에 이루어짐 ■ Digital Timer 장착 : 99.0 min ■ Maintance or Repair Kit로 잔고장 수리를 직접 할 수 있으며 부품 교체 가능 (Optional) ■ Sound Enclosure는 소음 수준을 약 85dB에서 78dB로 감소시킴 (Optional) ■ Tyler
Cat. No.
Model
Description

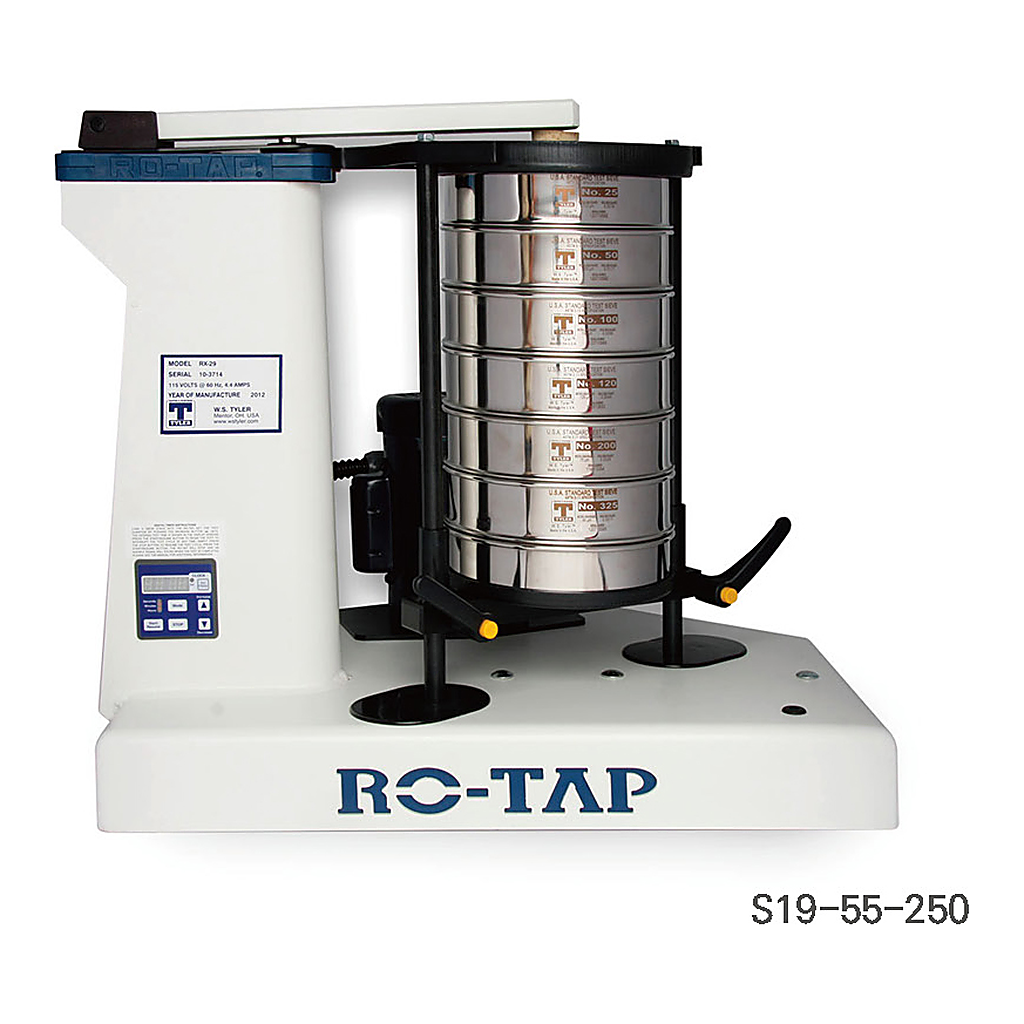

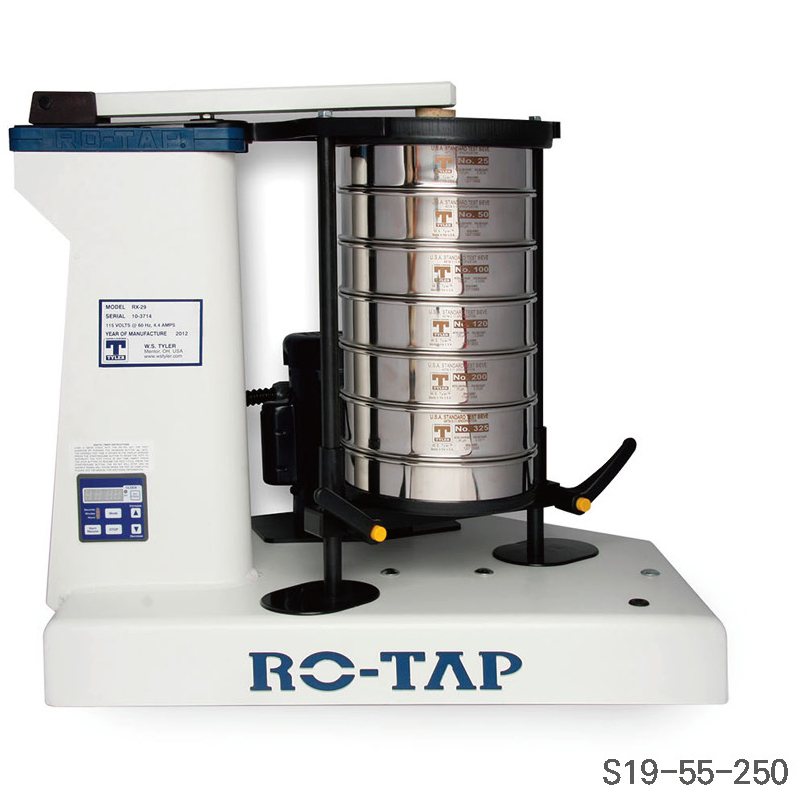

S19-55-250
RX-29-16
Ro-Tap 체진동기 (Φ200, Φ203mm 용)
S19-55-255
RX-30-16
Ro-Tap 체진동기 (Φ300mm 용)
Cat. No.
S19-55-250
S19-55-255
---
---
---
Model
RX-29-16
RX-30-16
---
---
---
Oscillation Per Minute
278±10
---
---
---
Oscillation Displacement
1-1/8”×7/16”
---
---
---
Taps Per Minute
150±10
---
---
---
Testing Application
2` Down Through 635 mesh (20 um)
4` Down Through 500 mesh (25 um)
---
---
---
적용 Sieve
Φ203 또는 200 mm 최대 6개 (H50 mm)
Φ300 mm 최대 4개 (H50 mm)
---
---
---
Size
w710×d530×h40 mm, 82 kg
Optional Accessory
Cat. No.
Model
Description
S19-55-925
10121
Maintance Kit
S19-55-935
10122
Repair Kit
S19-55-945
R-30050
Sound Enclosure
S19-55-955
H-40041
Test Stand
S19-55-965
LA11112
Wet Sieving Kit
* Maintance Kit (10121) : 2 Eccentric Discs, 1 Flange Bushing, 1 Bearing, 1 Cork and 2 Flange Bearings
* Repair Kit (10122) : 1 Maintenance Kit, 1 Timing Belt, 1 Upper Carrying Plate, 1 Cam Gear, and 1 Timing Belt Pulley
