CBRN PAPRs

Protection without boundaries

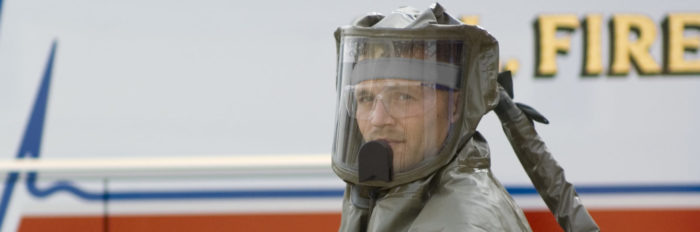

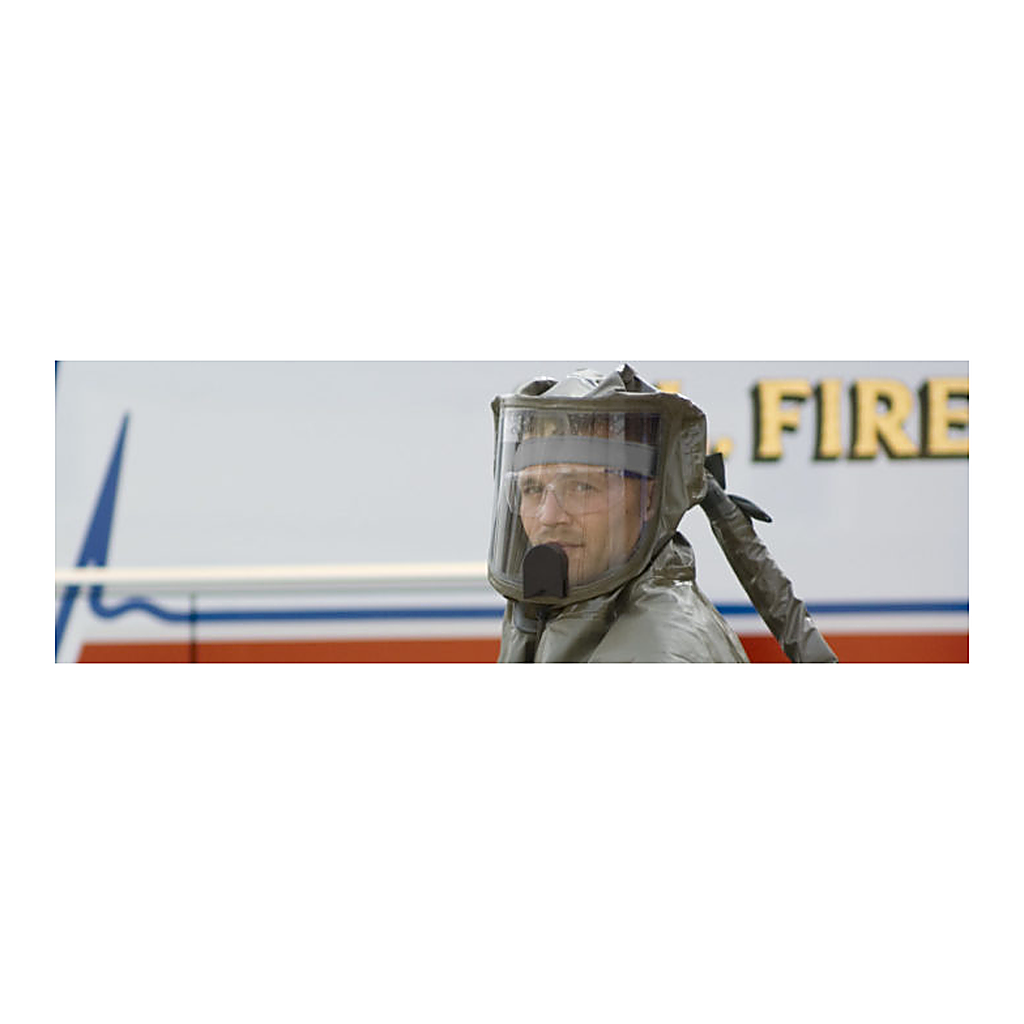

The Sentinel XL® CBRN powered air purifying respirator (PAPR) system is specifically designed for the emergency preparedness decon team wearers. As a NIOSH approved loose fitting CBRN PAPR it’s specifically been tested to withstand the harshest threats.

• Single rugged system designed to address multiple hazards
  • Military warfare agents
  • Biologic threats
  • Industrial chemical threats
  • Nuclear particulate threats
• Highest protection rating (CAP 2) of any loose fitting CBRN PAPR – delivers twice the filter performance of a CAP 1 system
• Available with 3 battery options including alkaline battery adapter
• Unique lay flat hood with adjustable headband delivers superior protection and comfort to decon team wearers

Downloadable Content

ILC Dover Sentinel XL® CBRN Brochure

Download

ILCDover Sentinel CBRN Spec Sheet

Download

• Features and Benefits

  • Single blower platform supports by Decon operations and Infectious Disease applications
  • Blower delivers 7.5-8 CFM airflow – increased protection and comfort
  • Loose fitting PAPR requires no fit testing
  • Low voltage alarm (audible and visible) for increase safety
  • NIOSH approved CAP 2 system with LRPL (protection factor rating) of 10,000
  • Available with non-rechargeable, rechargeable, and alkaline battery packs to increase readiness
  • Ergonomic backpack and Quick-Loc belt mounting options available. Backpack doubles as carrier and blower suspension system
  • Integral battery pack eliminates snagging potential and improves deconability
  • All of ILC Dover’s powered air purifying systems are Latex free.

• Applications

  • Hospital decon teams
  • Hospital first receiver teams
  • Adapable to infectious disease applications (TB, H1N1)

• Technical Specifications

  Sentinel CBRN Specifications

  Sentinel Blower

  Material__: Rugged sealed Nylon Protective Shell, with floating polycarbonate internal blower assembly – dual chamber provides enhanced durability
  W__eight__: 1.0 lb (without battery)
  Nomina__l Flo__w Rate: 195 lpm
  Nois__e Level: <75 dB
  L__o__w Voltage Alarm: _Flashing LED and Buzzer
  _Cartridge interface: 40 mm (military/NATO style) integration with integral blower gaskets

  CBRN Hood

  Configuration/design: “lay flat” design. Replaceable head strap unsnaps to permit hood to lay flat preventing damage and allowing it to store easily in the backpack
  Material__: _Butyl coated fabric. All of our products are latex free.
  _V__isor: Impact resistant, optical grade polycarbonate
  S__eams__: Sewn and Taped
  Hea__d Strap: Cushioned/anti-microbial with 5 adjustment positions to comfortably support a wide range of wearers
  Exhaus__t System: Single Silicone valve – M40 style with plastic valve cover
  Sizing__: Single size
  Hose__: Flexible, reinforced with butyl sheath – integral part of butyl hood.
  S__ecurin__g Feature: Adjustable draw cord

  Chemical Cartridge

  NIOSH Protections: CBRN Cap 2

  P__a__c__k__age__: Hermetically sealed, foil pouch, sealed.

  S__yste__m Usage: 3 each

  Suspension/Storage options

  • Quick-Loc Belt
    • Configuration: Easily adjustable up to 55 inch waist size
    • _Material: _ Smooth, deconable polymer laminate
    • Integration with blower: Rapid “snap-in” configuration provides tactile feedback of secure engagement
  • Optional Backpack
    • Configuration__: Designed to store entire system including blower, cartridges, hood with integral breathing tube, flow meter, and battery charger. Backpack is also part of the NIOSH approved “as worn” configuration serving to support the blower on the back.
    • Material_: _Polyester and Nylon

  Alkaline Battery Pack

  Configuration: Internal receptacles to support D cell batteries with external sealed cover

  Battery mount: Direct snap-on to blower

  Weight: 1.95 lbs

  Nominal Life: 10 hours (per 5 Duracell Batteries)

  Rechargeable Battery Pack (Standard NiMH)

  Configuration__: Sealed external cover with blower connector

  Ba__t__tery mount: Direct snap-on to blower

  _W__e__ight: _1.65 lbs

  Nomina__l Life__: 8 hours

  Charge/Dis__c__harg__e Cycles: 500

  R__e-charg__e time (with Smart Charging system): 5 hours

  Battery Pack (Optional LiMnO**2**)

  Configuration: Sealed external cover with blower connector

  Battery mount: Direct snap-on to blower

  Weight: 1.40 lbs

  Nominal Life: 10 hours

  Shelf Life: Maximum 10 years from Date of Manufacture

  Charger

  Type: AC/DC for Sealed NiMH Battery

  Current: 2A

  Voltage: 6 volts

  Charge type: Auto-Switch to trickle charge

  Feedback: Red/Green LED

• Accessories

  Conversion Kits – provide all necessary components to allow CBRN system to convert to infectious disease application

• Quality standards

  All Sentinel XL products are NIOSH approved. NIOSH approvals

  TC-23C-2312

• Ordering information

  SentinelCBRN_OrderForm

• FAQS

  *Are conversion kits available to convert my Sentinel CBRN system to a PAPR designed for infectious disease applications?
  *Yes – multiple kits are available with head covers, clear hoods, full hoods, and filters to economically adapt your CBRN PAPR.

  *Why would I select an alkaline battery adapter?
  *With the alkaline battery adapter you never have to worry about charging your PAPR. You’re ready at a moments notice and you can convert back to a rechargeable battery configuration in less than a minute.

  Why should the NIOSH CBRN standard matter to me?

  The NIOSH CBRN Standard for Powered Air Purifying Respirators was created to address the “ongoing concern of potential terrorist events and the need to provide the emergency responder and receiver communities with alternatives to respiratory protection as quickly as possible” (NIOSH CBRN PAPR Announcement Letter, October 6, 2006). This Standard addresses the special needs and consideration of respirators that protect responders and receivers in the event they are called to duty in a Chemical, Biological, Radiological or Nuclear event.

  I hear a lot about capacity ratings of NIOSH CBRN approved PAPRS. What does that mean and why does it matter?

  Capacity ratings reflect the approved service life of a filter cartridge based on NIOSH test requirements for specific gas/vapor challenges. A capacity rating of Cap1 indicates a NIOSH approved service life for the filter cartridge of 15 minutes when exposed to the gas/vapor challenge breakthrough criteria indicated in the Standard. A Cap2 rating indicates a 30 minute service life when tested to the same criteria. This means that a Cap2 approved PAPR system offers twice the gas/vapor operational capability and half of the operational costs of Cap1 approved systems. Certain design features and performance characteristics that go into a Cap2 approval may boost user confidence and operational capability during an event.

  Is the Sentinel CBRN Powered air purifying respirator system and its accessories Latex free?

  Yes – all of ILC Dover’s powered air purifying respirator systems and accessories are Latex free.

• Additional Documents

  Sentinel XL Conversion Kits
