Flexloc Clamps

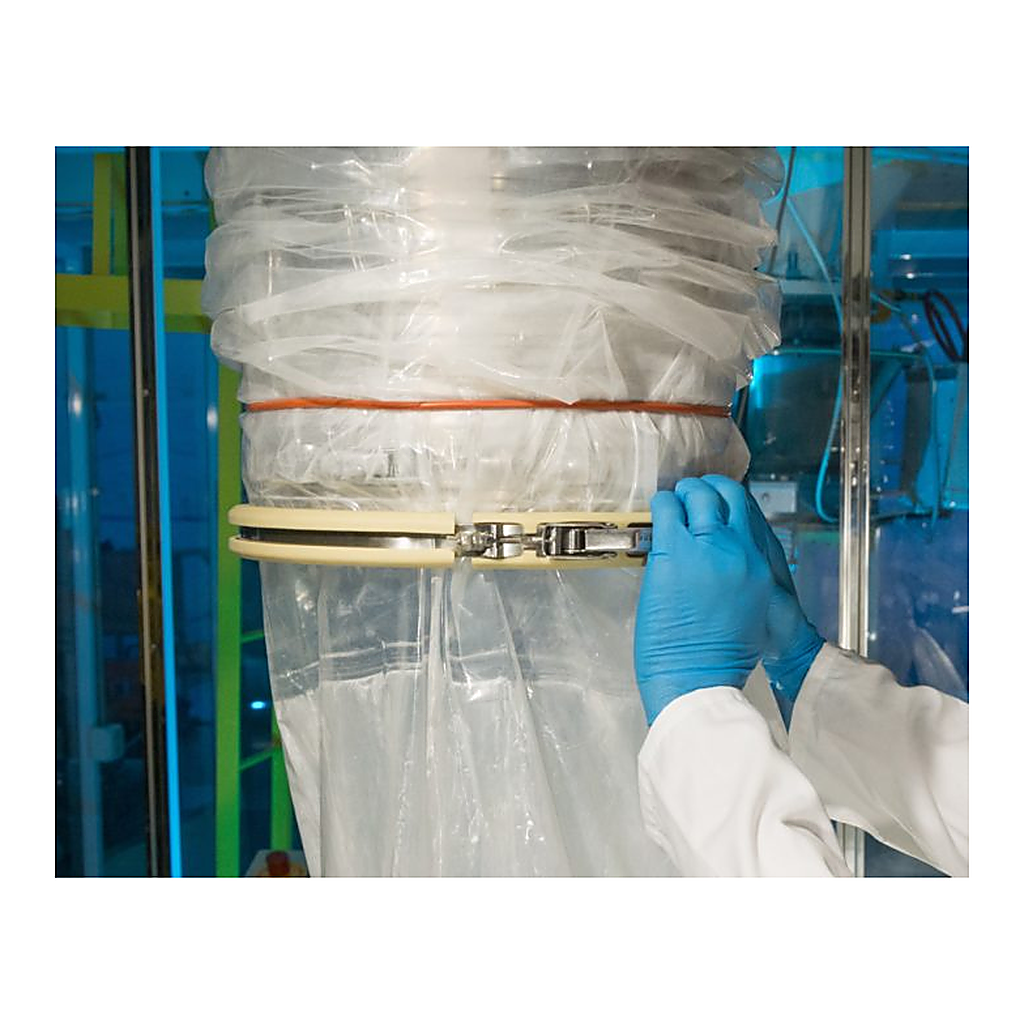

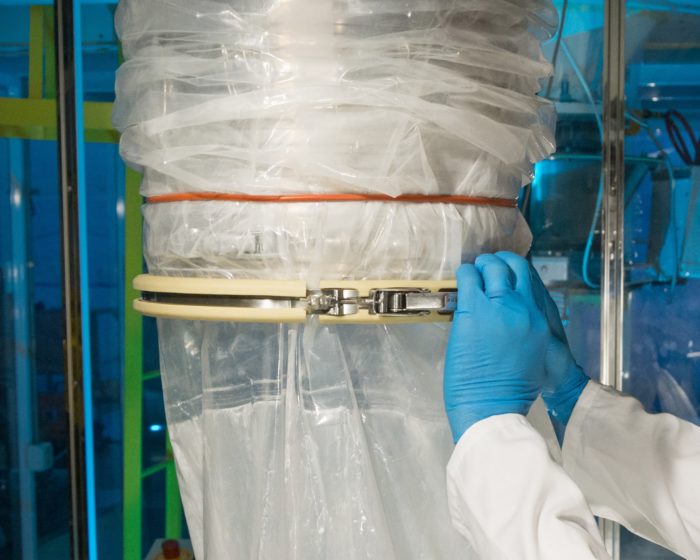

The FlexLoc clamp is used to secure the neck of the continuous liner to a multi O-ring canister. The clamp functions to prevent powder from migrating between the inside of the liner and the outside of the canister to minimize cleaning operations. The clamp is designed to operate in powder offloading and the charging operations.

• Features and Benefits

  • Prevent powder from migrating between the inside of the liner and the outside of the canister to minimize cleaning operations.
  • Constructed of molded FDA compliant elastomer with integrated stainless steel band clamp.
  • Attaches directly to existing vessel or isolator hardware to enhance protection levels.

• Applications

  The FlexLoc clamp is used with Armorflex continuous liners.

  Used for drums, Bag In/Bag Out operations, and processing tablets this system typically interfaces with 8” or 12” outlet canister.

  Product offloading from sifters, mills, blenders, centrifuges, dryers and other process equipment.

  • Tablet offloading
  • Bag-in/Bag-out

• Technical Specifications

  Constructed of molded FDA compliant elastomer with integrated stainless steel band clamp.

• Accessories

  14” diameter Continuous Liners

  CL4030 – Continuous Liner, 14″, 30′ Length, AF114

  CL8030 – Continuous Liner, 14″, 30′ Length, AF110

• Part Numbers

  HW6685 – FlexLoc clamp – 12”

  HW6686 – FlexLoc clamp – 8”
