주요특징
- Suitable for viscous and non-viscous liquid transport
- High precision, small pulse
- Can put external instrument panel, through the ground detection
- Simple structure, high reliability
- Change tubing quickly and easily
- Stepper motor, high accuracy

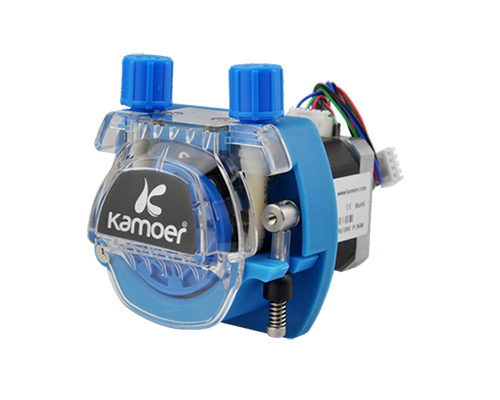

| KXF Peristaltic Pump Peristaltic Pump Seriesr Features * Suitable for viscous and non-viscous liquid transport * High precision, small pulse * Can put external instrument panel, through the ground detection * Simple structure, high reliability * Change tubing quickly and easily * Stepper motor, high accuracy Product Introduce Motor selection - KCM is stepper motor driven peristaltic pump, with stepper motor drive, can use 12V/24V power supply. Pump Tube Selection - pump tube with wall thickness of 1.6mm PharmedBPT (B) and Silicone tube (S), can suit for different transmission liquid requirements, optional pump tube size is to meet the different ßow requirements. Installation - Installation support with the Floor mounted or wall mounted (see detailed drawing). Flow accuracy - KCM peristaltic pump with adjustable roller number, according to the needs of the choice for 4 or 8 rollers. The more rollers,the higher the accuracy, the less pulse, the less Flow rate. Main material - buckle shell, sync disk with synthetic engineering plastic, machined parts is SUS304 stainless steel. |
 |
Parameters
| Code | 13 | 14 | 19 | 16 | 40 | ||
| ID*OD (mm) | 0.8*4.0 | 1.6*4.8 | 2.4*5.6 | 3.2*6.4 | 4.0*7.2 | ||
| Materials | S | B/S | B/S | B/S | S | ||
| Flow Rate (ml/min) |
24v @450RPM |
DA(24V)0.12A | 20 | 56 | 130 | 180 | 320 |
| DC(12V)0.25A | 17 | 39 | 97 | 118 | 169 | ||
| 12V @350RPM |
DE(6V)0.53A | 16 | 44 | 100 | 135 | 240 | |
| DE(6V)0.53A | 13.5 | 40 | 75 | 88 | 125 | ||
| Current: 1.2A Working conditions:Ambient temperature: 0℃-40℃ Relative humidity: <80% |
Note:The above Flow parameters at 20 degrees Celsius standard pressure without water pressure measured in condition of new tube aging in 30 minutes,the speed at 24V@450RPM/12V@350RPM,the actual according to different media,the outlet pressure is different,the DC motor speed error,the ßow there will be some error,the data for reference.
Parameters
| Code | Size | ID | OD |
| 1 | 25.20.0006 | 0.6≤Φ≤2.0 | Φ1.8~Φ2.4 |
| 2 | 25.20.0008 | 2.0＜Φ≤3.2 | Φ2.5~Φ3.2 |
| 3 | 25.20.0010 | 3.2＜Φ≤4.0 | Φ3.3~Φ4.0 |
| Dimensions Recommended mounting plate hole size |
 |
